Standard power supply VS Lab Adjustable power supply — CivilLaser laser system

1. Two types of laser power supply can be choose.
(1). Standard power supply — Split power supply;
(2). Lab Adjustable power supply — Overall power supply;



2. The main difference between the two power supplies is shown in the table below

Standard power supply VS Lab Adjustable power supply — CivilLaser laser system

Standard power supply

“I型分離型電源”

Lab Adjustable power supply

“II型可変式電源”
(Recommend)

Output power adjustable No 0~Max output power adjustable
CW – Continuous work Yes Yes
TTL Modulation Yes (TTL by default) Yes
Analog Modulation No (can be customized) Yes
Current digital display No Yes
Cooling Fan Yes Yes
Price $50~¥100 $110~$150

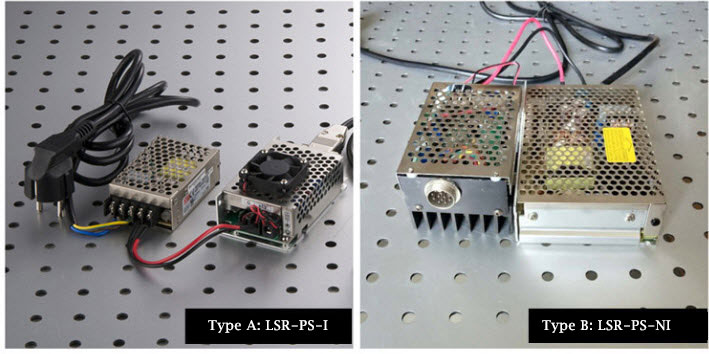

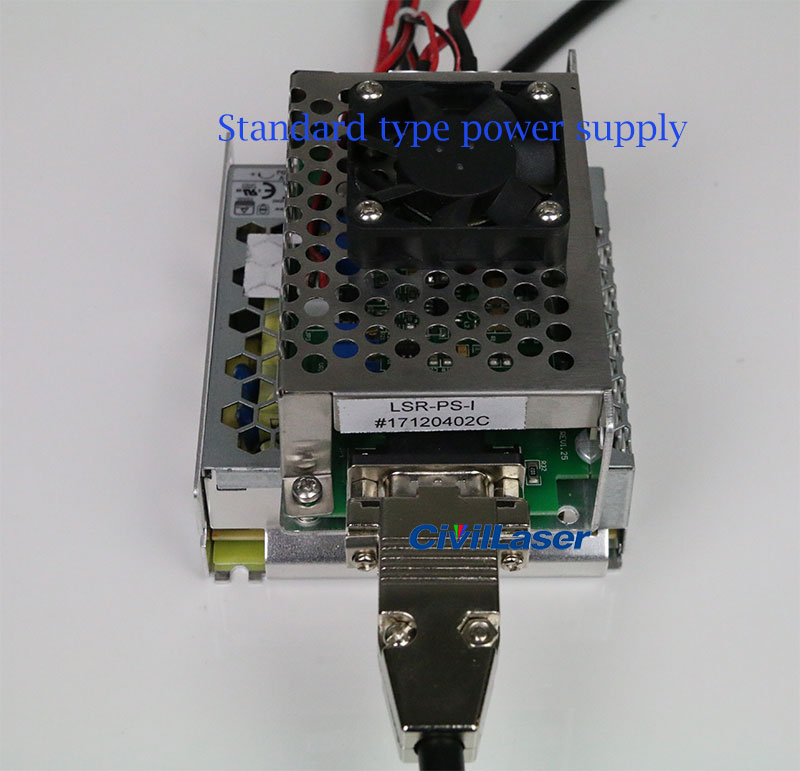

3. Standard power supply — Split power supply;

Click here find detail info.
standard power supply

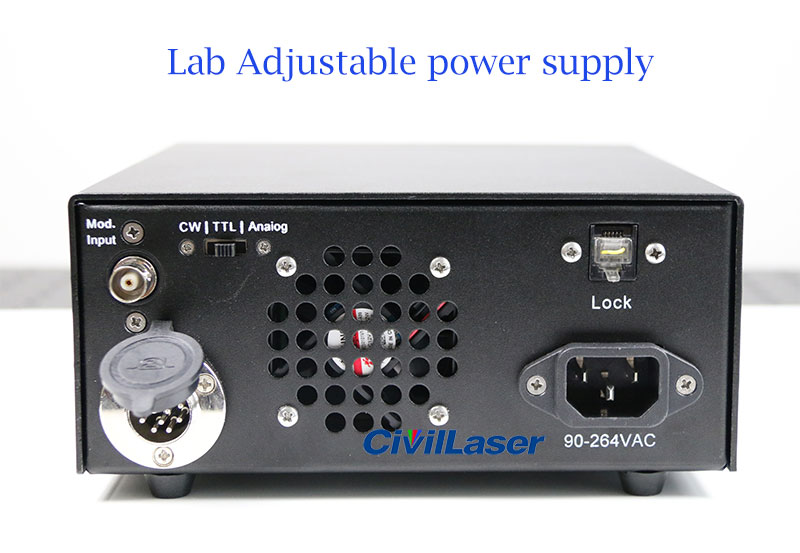

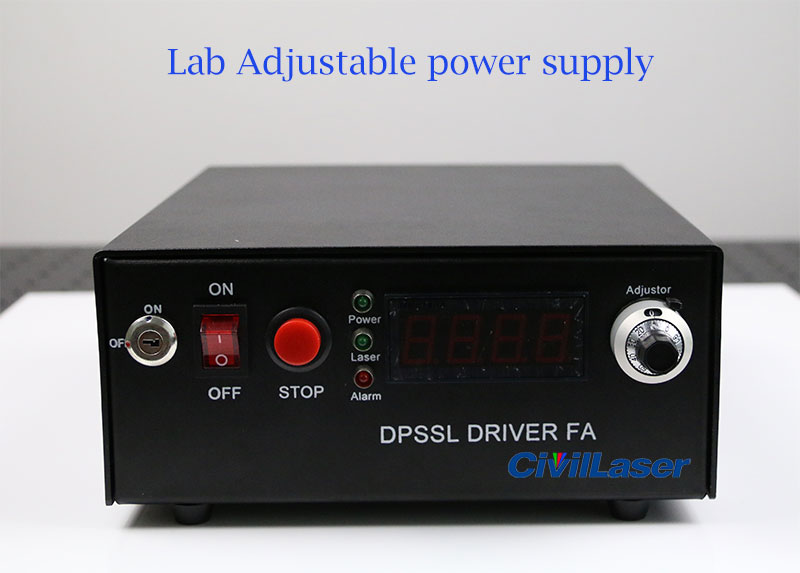

4. Lab Adjustable power supply — Overall power supply

Click here find detail info.
lab adjustable power supply
