Laser Head Type Laser Head Size of CivilLaser laser system

Laser Head Type Laser Head Size of CivilLaser laser system

We have many types of laser head, corresponding to lasers with different wavelengths and powers;

Usually we choose the appropriate laser type according to the laser needs and inventory situation.
If customers have requirements for laser size, please contact us in advance;

Commonly used laser types:
CP Type (CP/CPE/CPF/CPS/CPX/CPY);
CH Type;
F Type;
H Type;(H/HN/HX/HY/H-OEM);
ML Type;

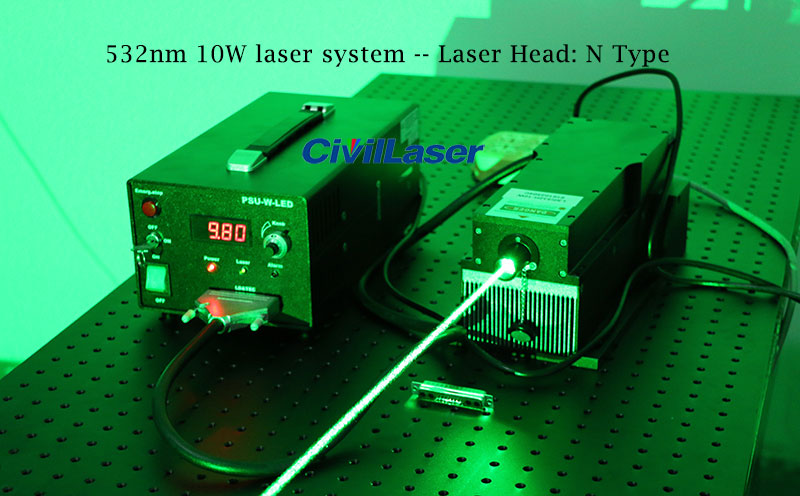

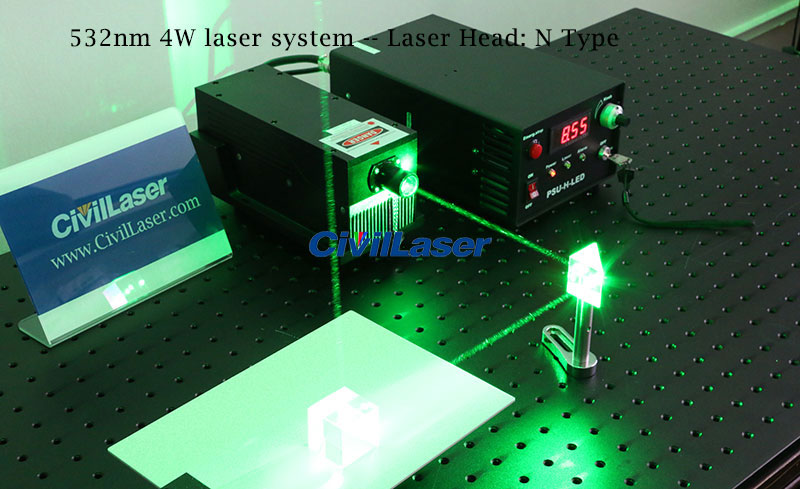

N Type(N/NL);
RGB Type;
SD Type;
W Type;



The Dimensions of common laser heads:

CHR-Type: 114(L)*44(W)*65(H)mm3
CPD-L-Type: 120(L)*56(W)*42(H)mm3

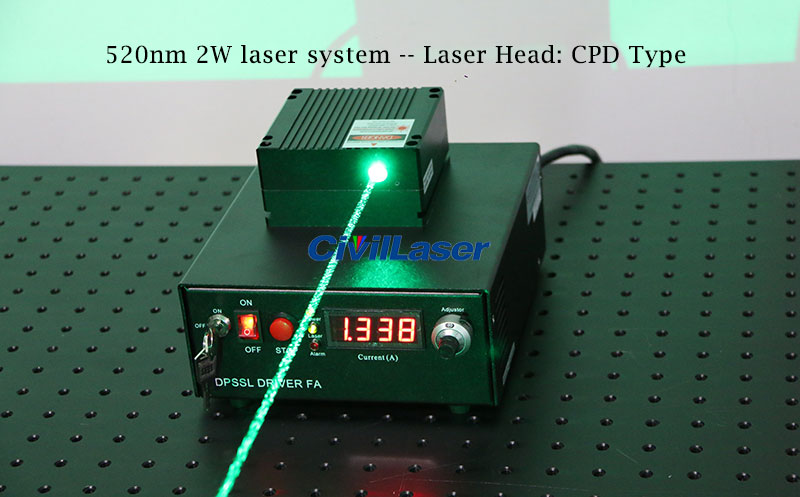

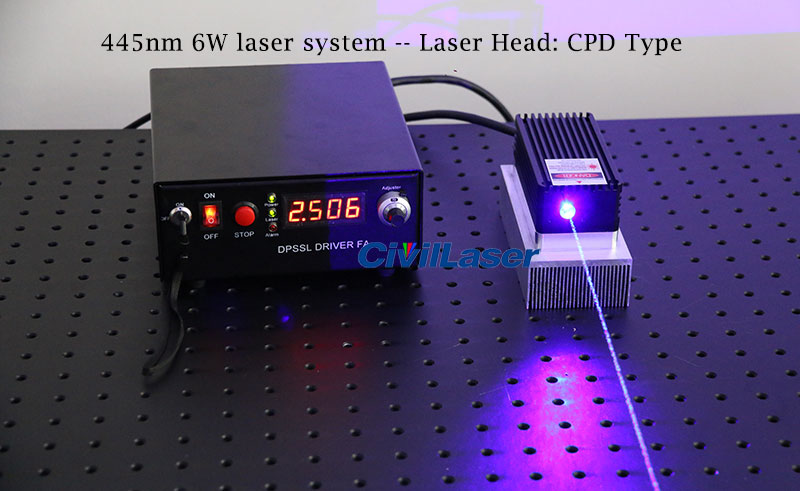

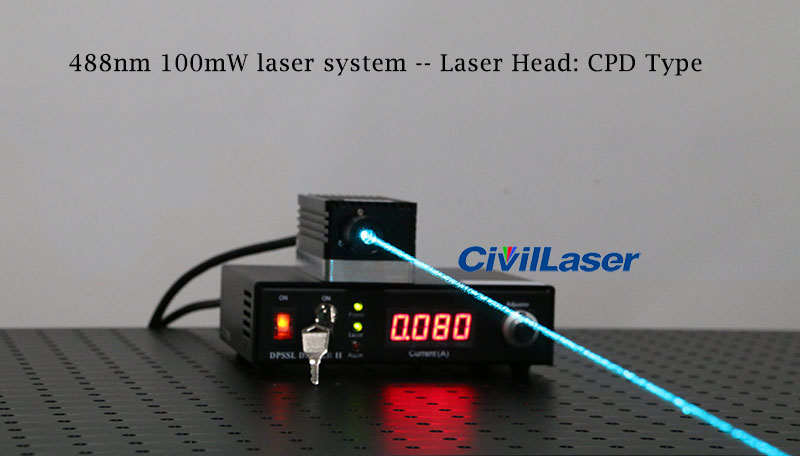

CPD-Type: 108(L)*56(W)*47(H)mm3
CPD-OEM2-Type: 145(L)*64(W)*50(H)mm3
CPD-OEM-Type: 145(L)*64(W)*70(H)mm3
CPD-OEM-Type: 98(L)*56(W)*47(H)mm3

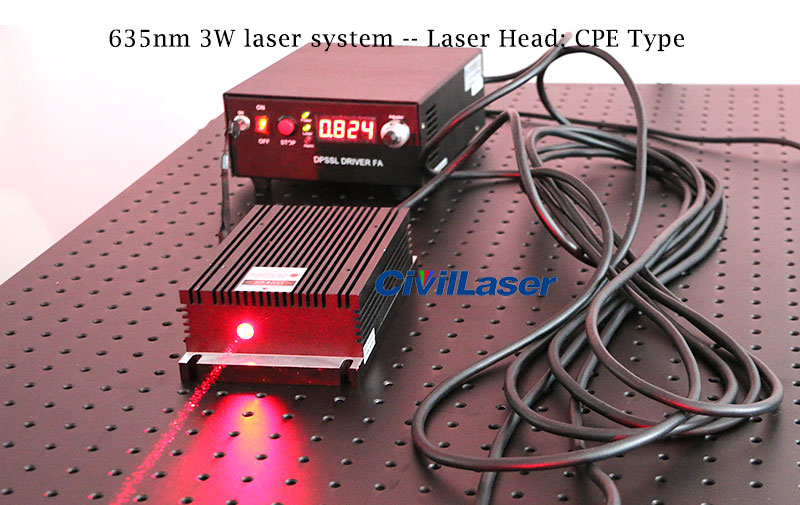

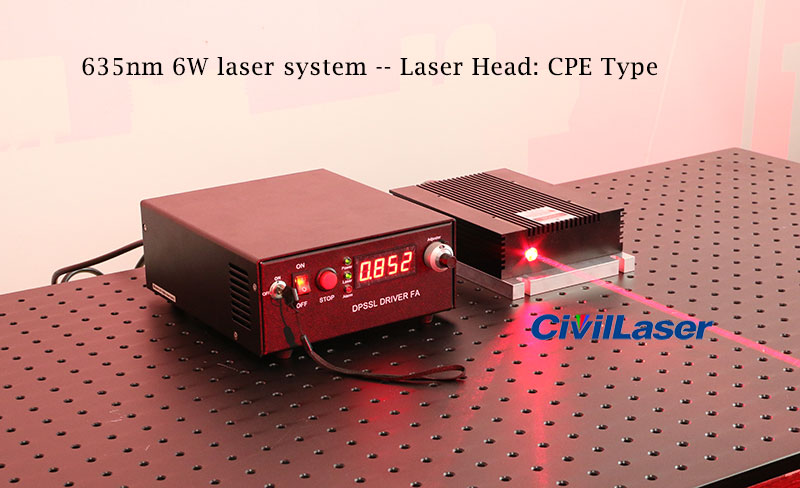

CPE-Type: 185(L)*128(W)*50.5(H)mm3
CPE-OEM-Type: 97(L)91.5(W)*50.5(H)mm3

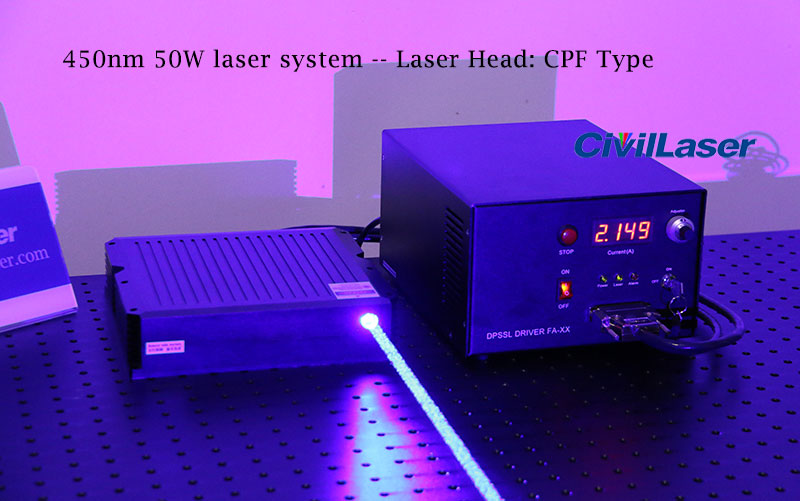

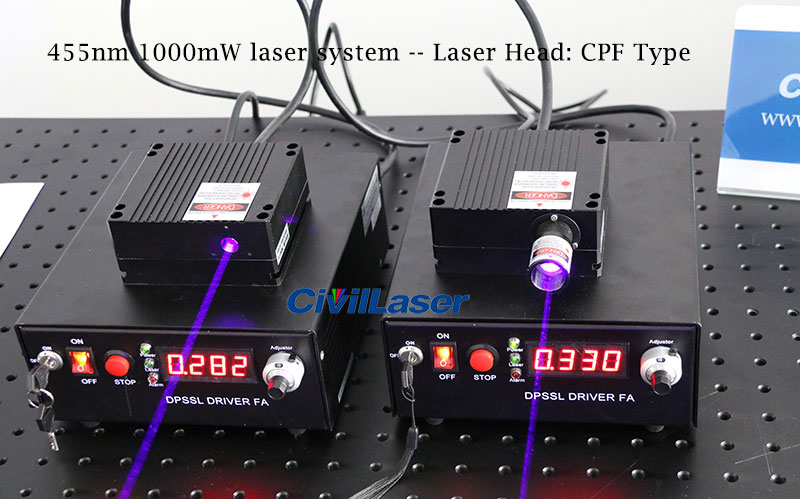

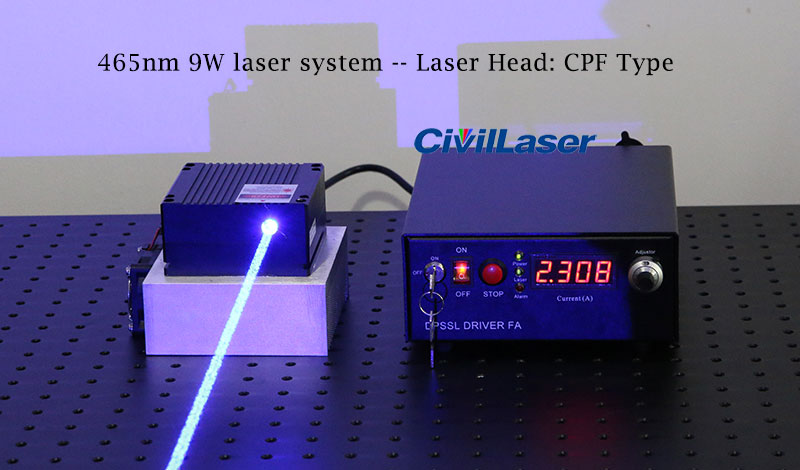

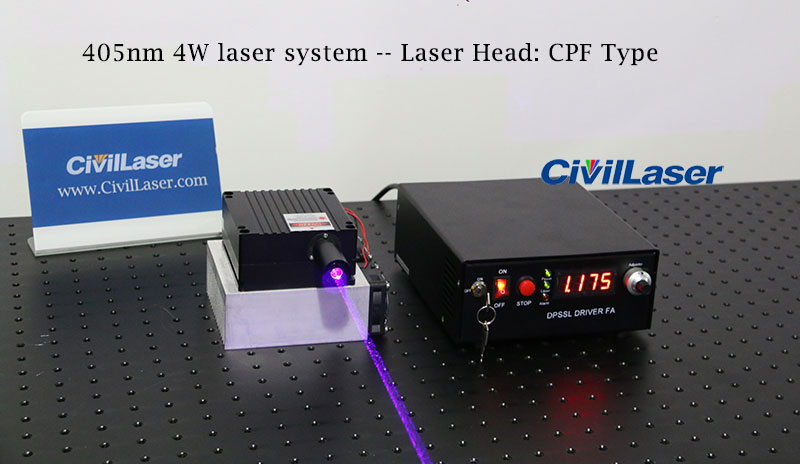

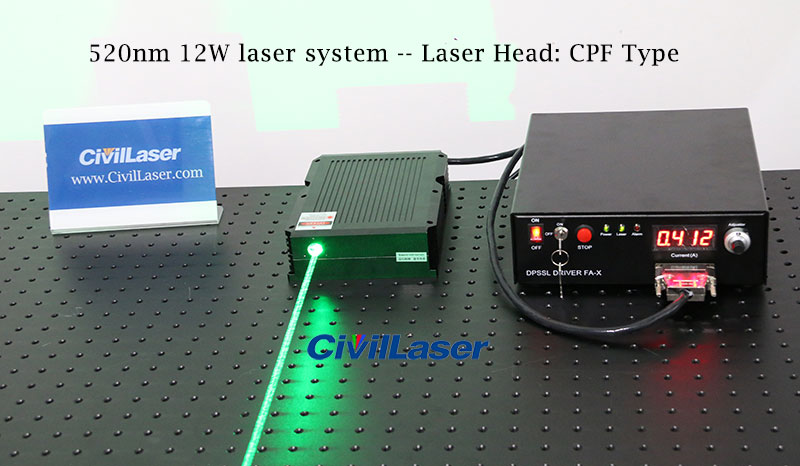

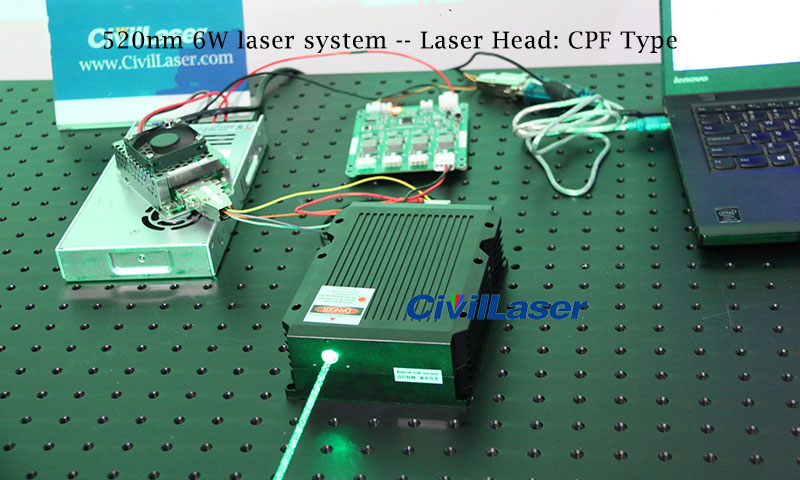

CPF-Type: 211(L)*151(W)*50.5(H)mm3

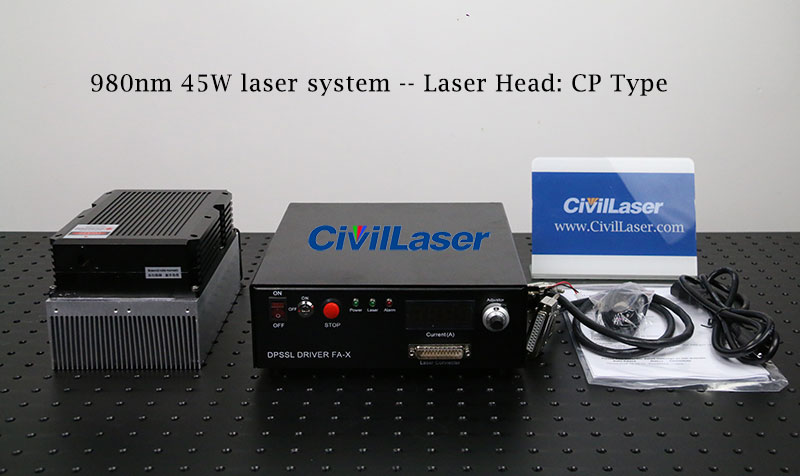

CP-Type: 166(L)*120(W)*45.5(H)mm3
CP-OEM-Type: 97(L)91.5(W)*45.5(H)mm3
CP-OEM-Type: 150(L)*84(W)*73(H)mm3
F-Type: 211(L)*88(W)*74(H)mm3

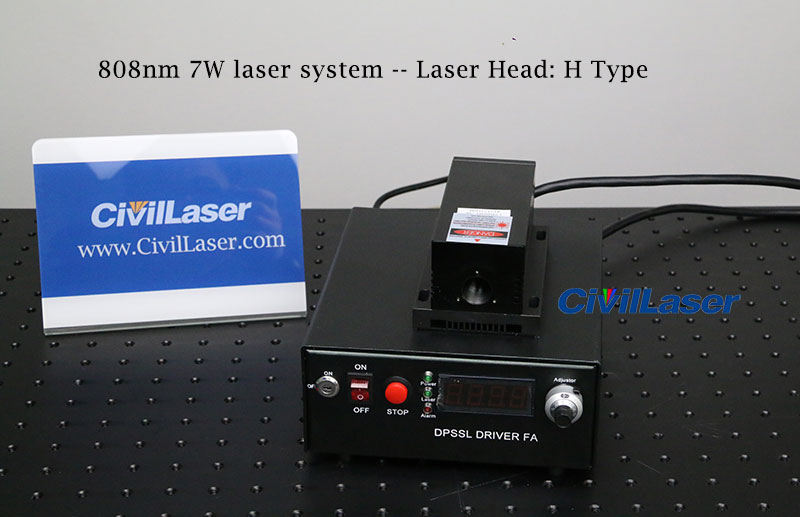

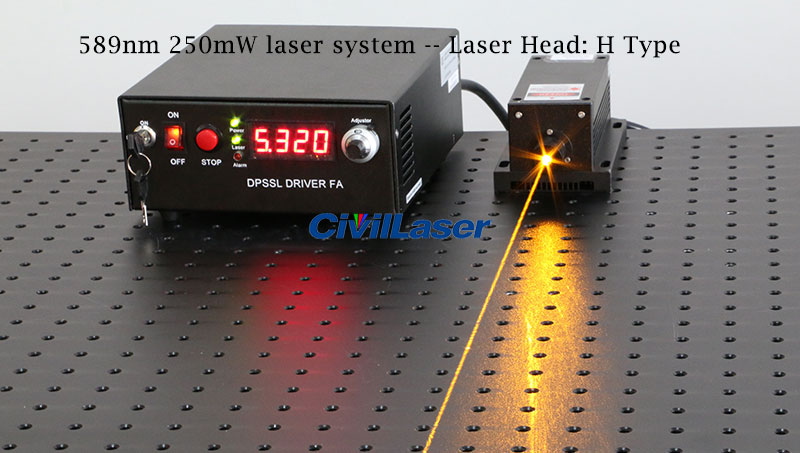

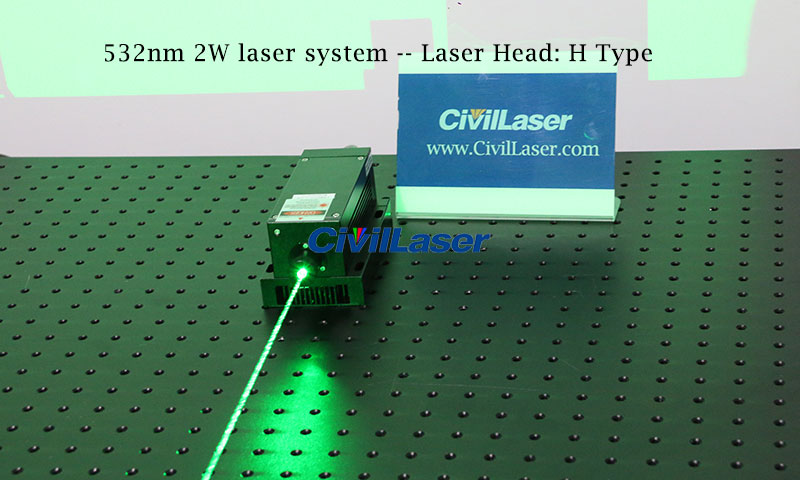

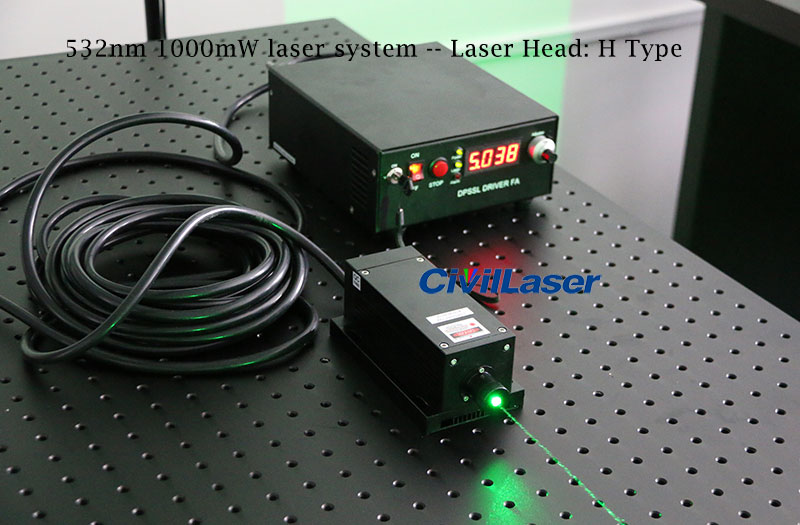

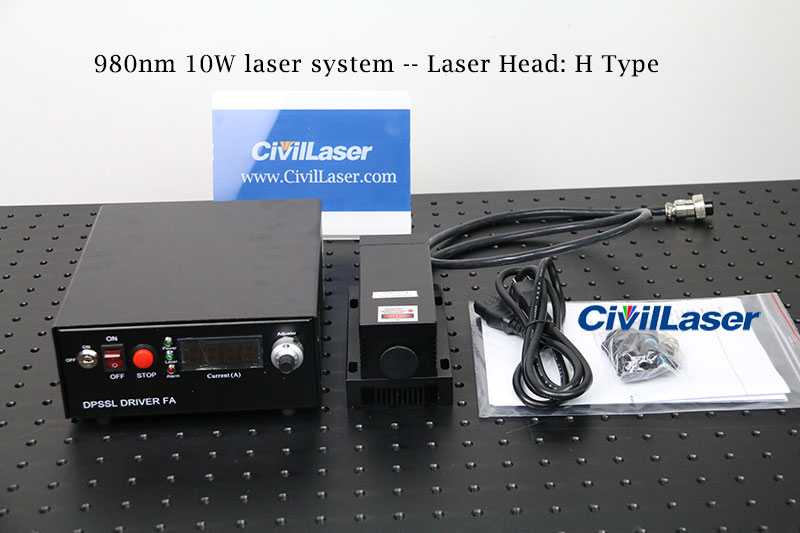

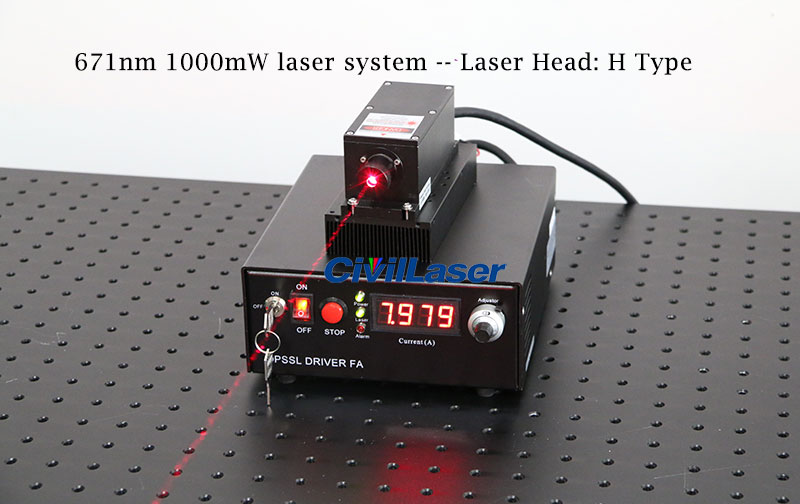

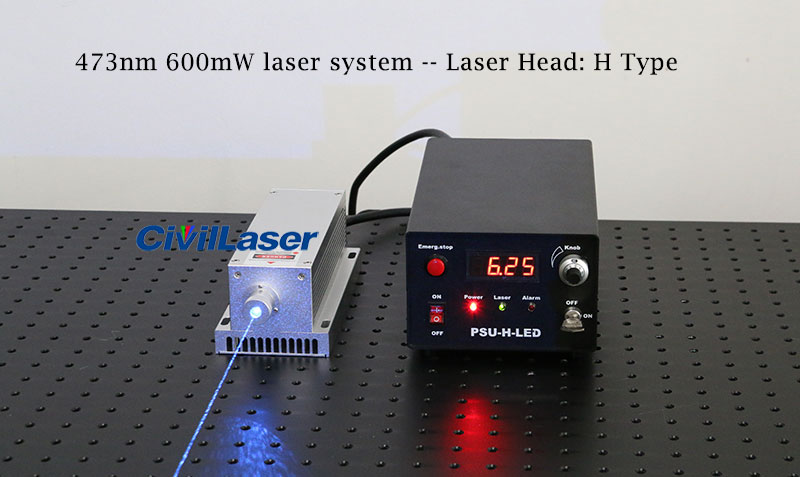

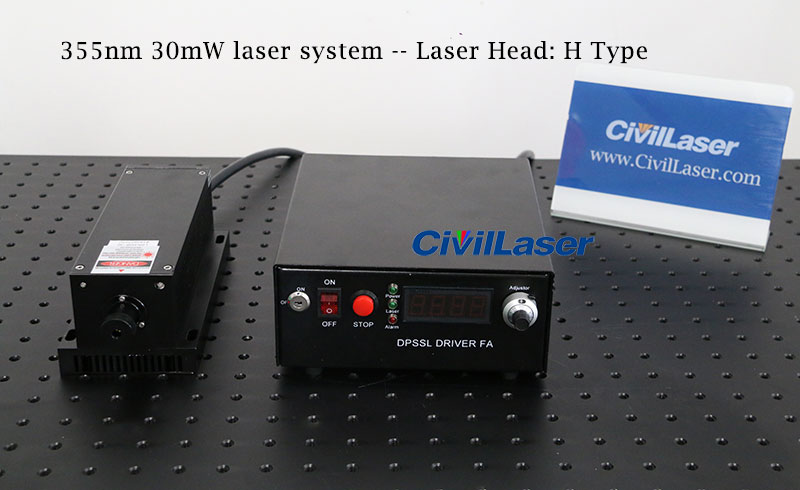

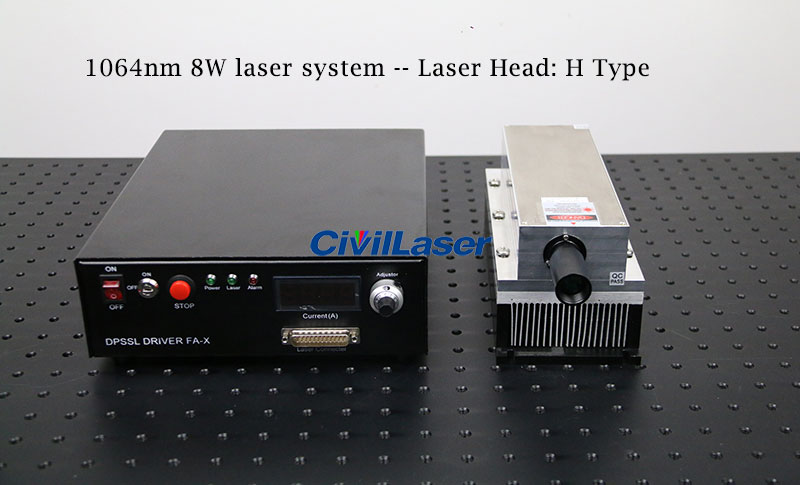

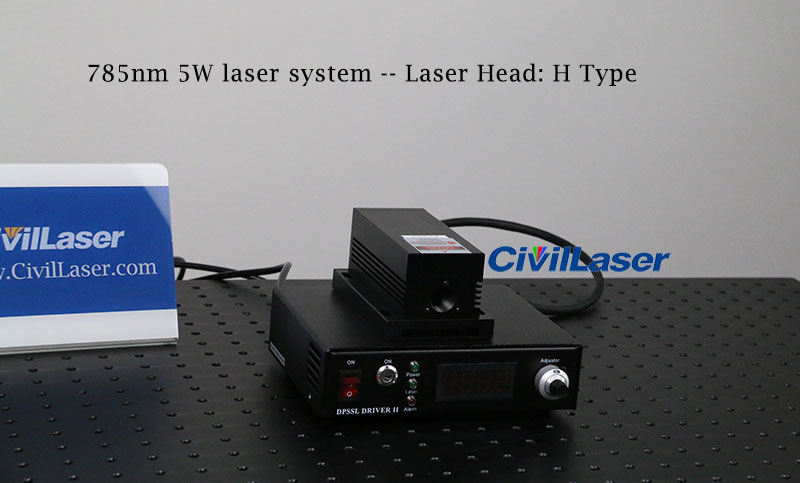

H-Type: 155(L)*77(W)*60(H)mm3

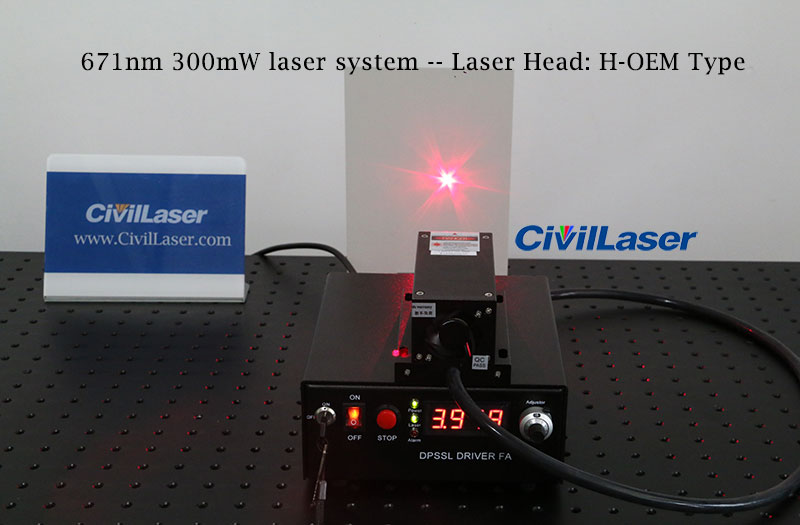

H-OEM-Type: 127(L)*48(W)*50(H)mm3
HX-Type: 200(L)*99(W)*94(H)mm3

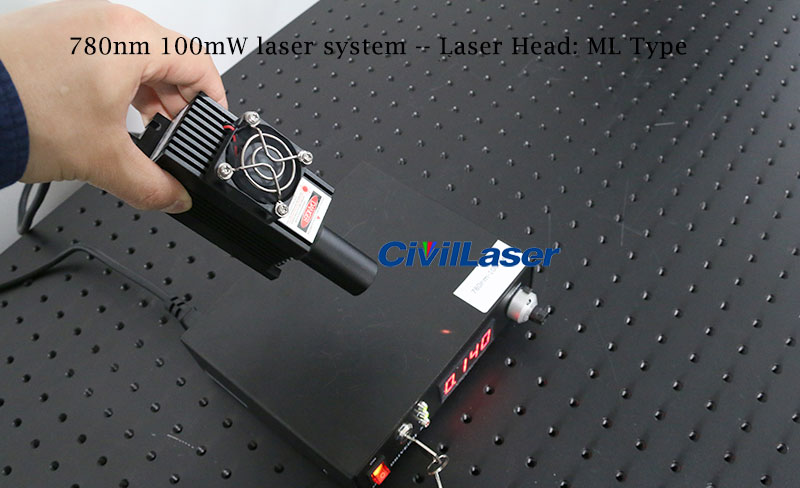

ML-Type: 100(L)*34(W)*45(H)mm3

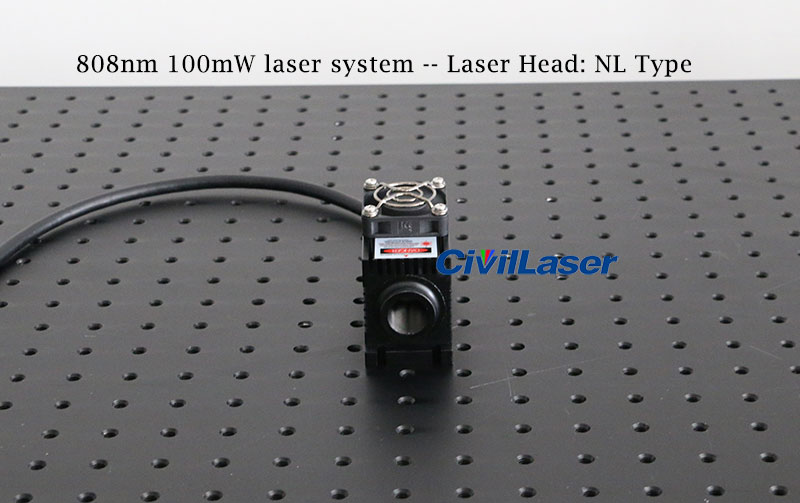

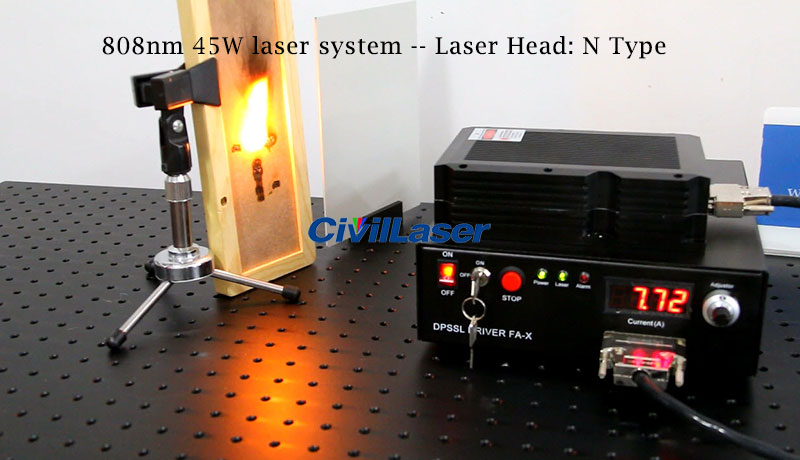

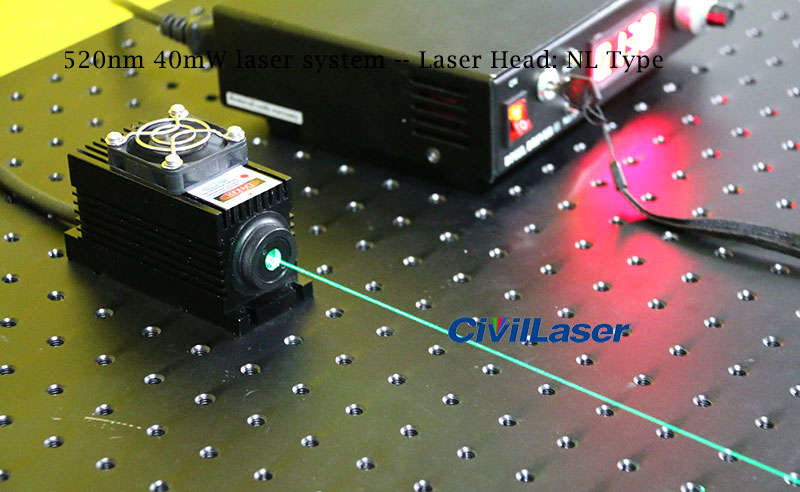

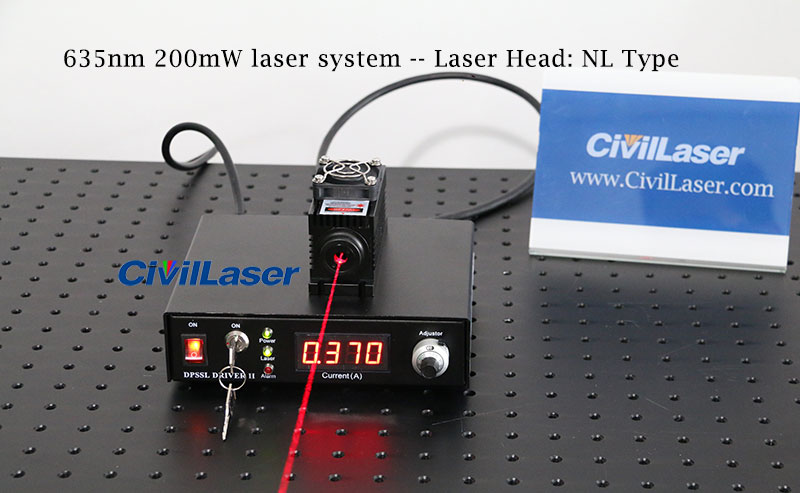

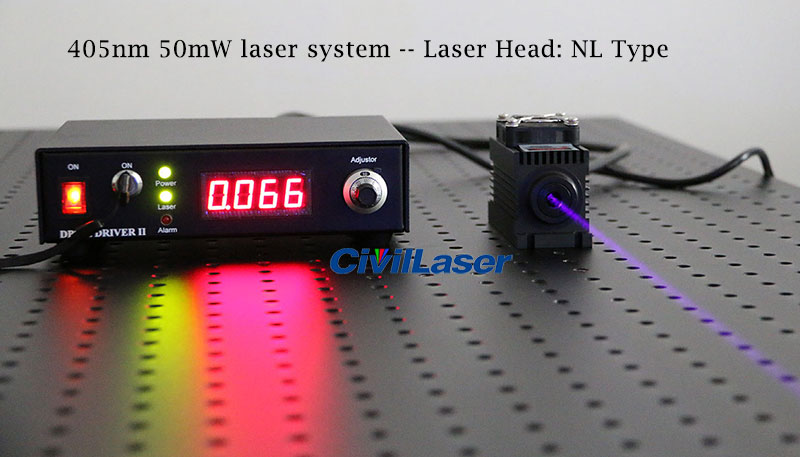

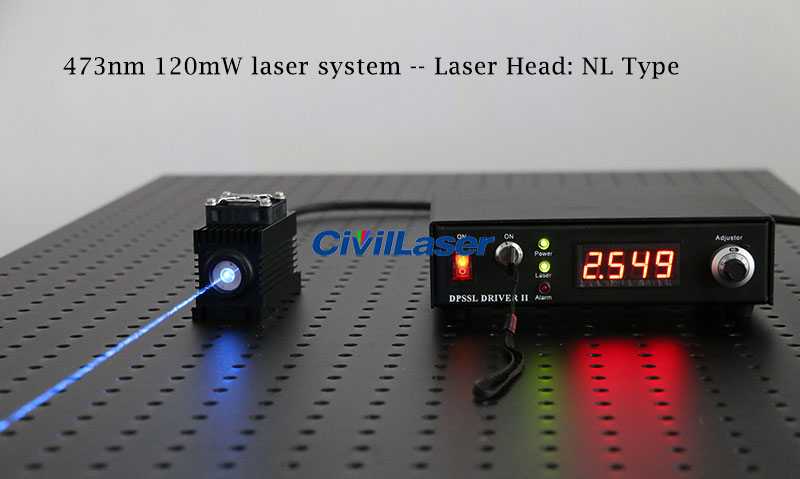

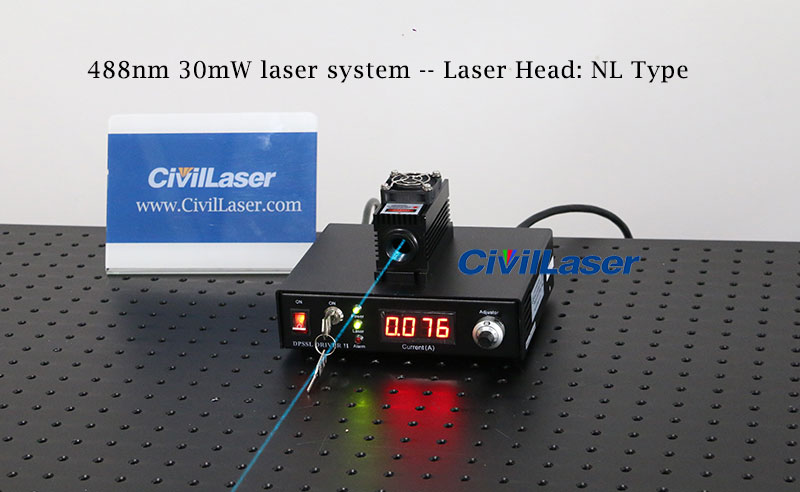

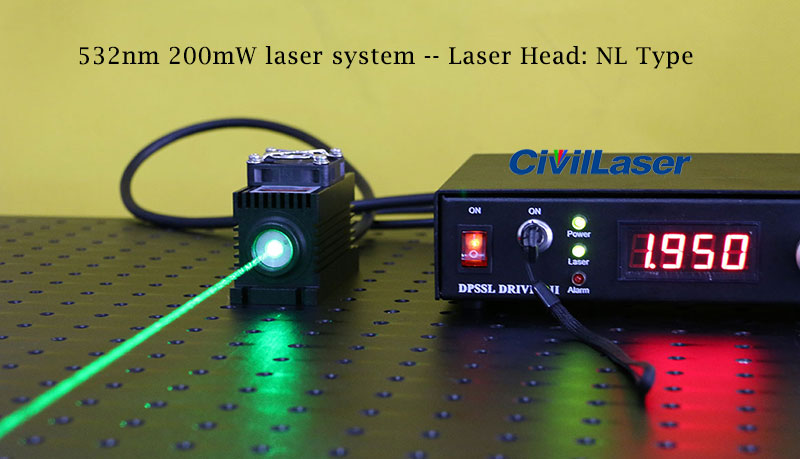

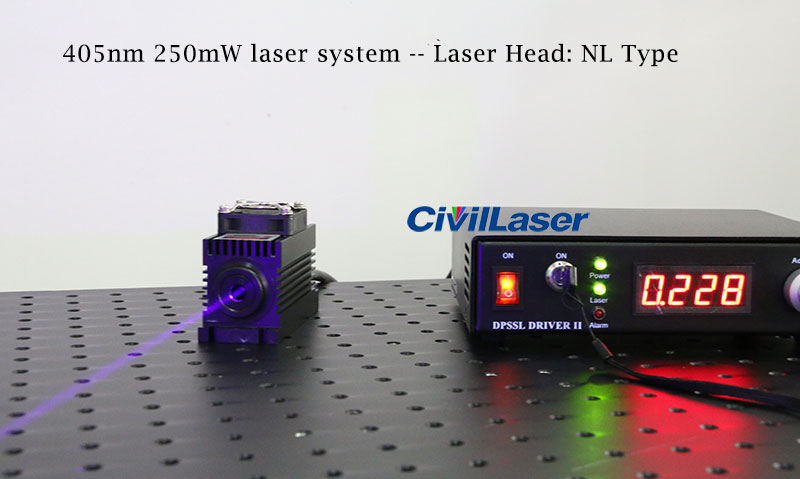

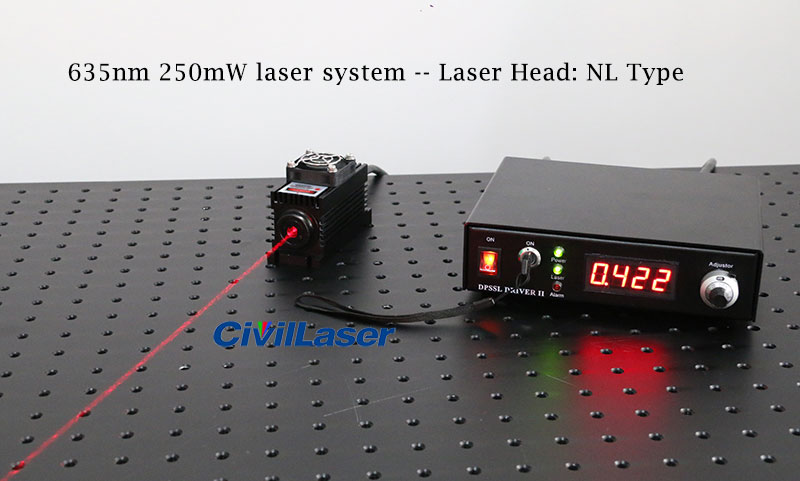

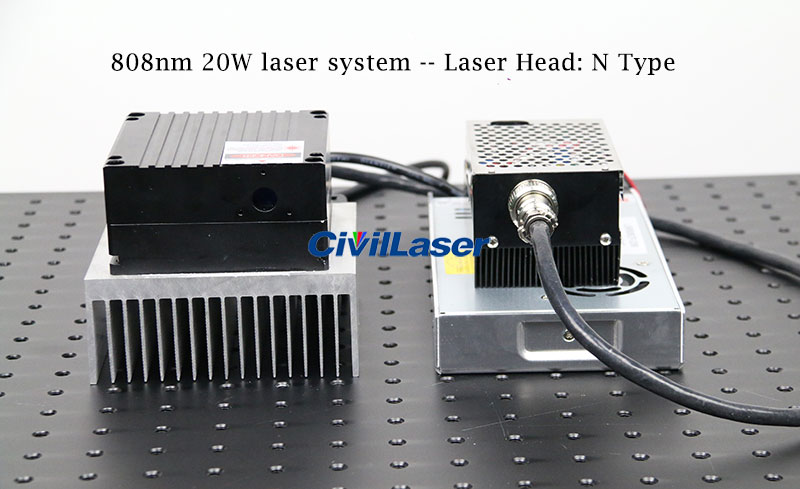

NL-Type: 100(L)*40(W)*50(H)mm3 — Fans add 15mm height

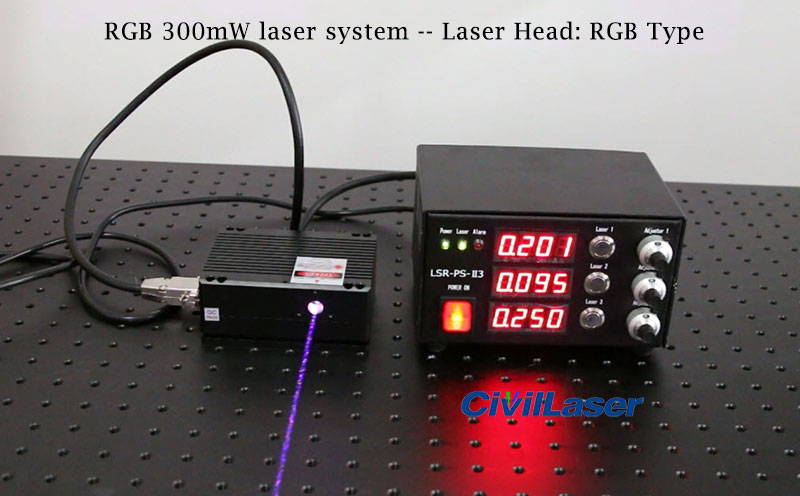

RGB-Type: 119.6(L)*89.6(W)*50.5(H)mm3
RGB2-Type: 166(L)*120(W)*50.5(H)mm3
RGB3-Type: 185(L)*128(W)*50.5(H)mm3

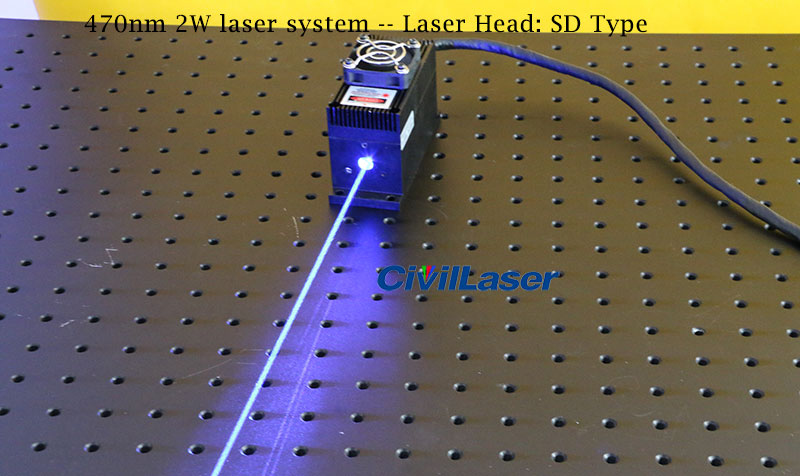

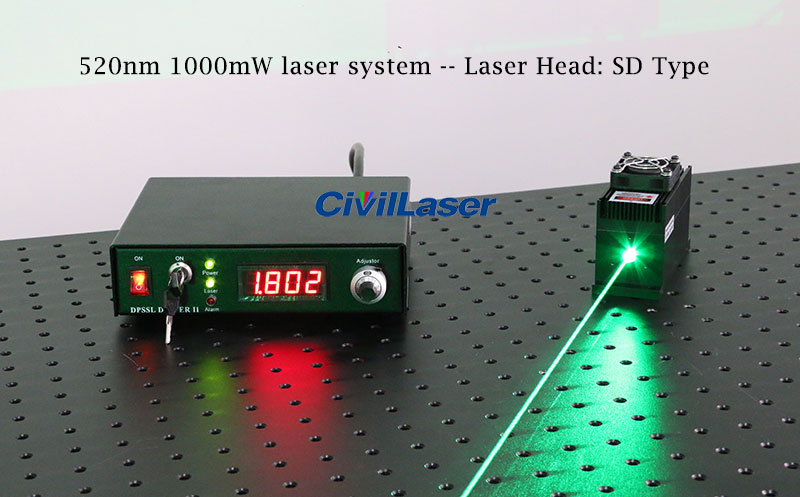

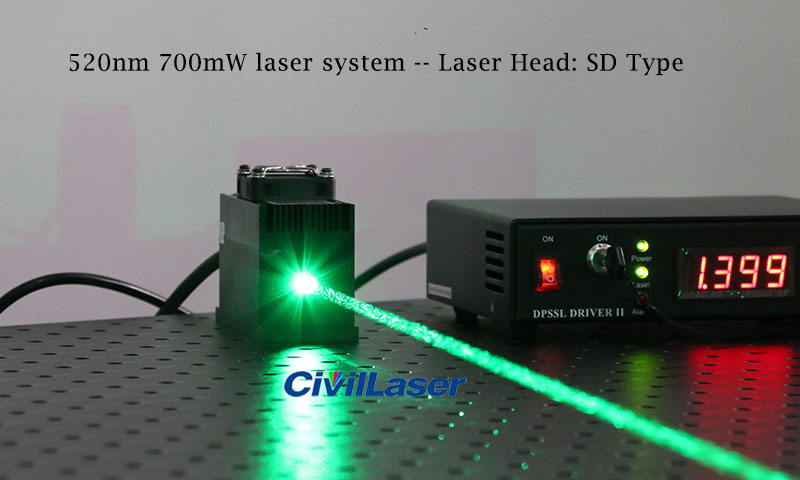

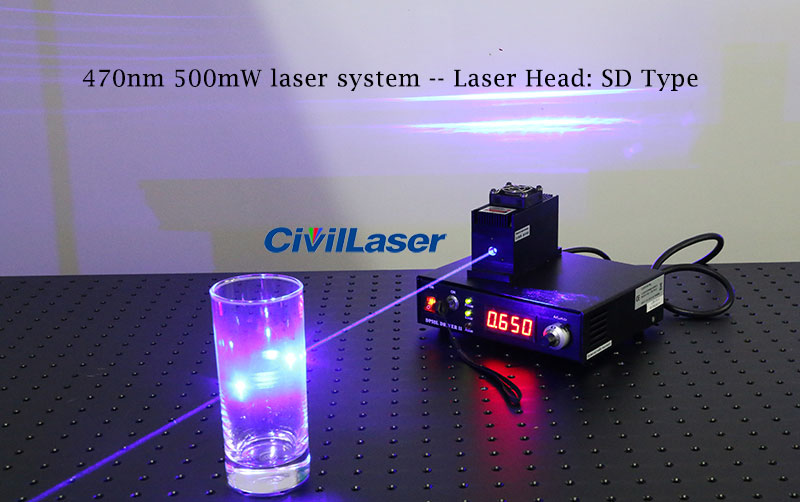

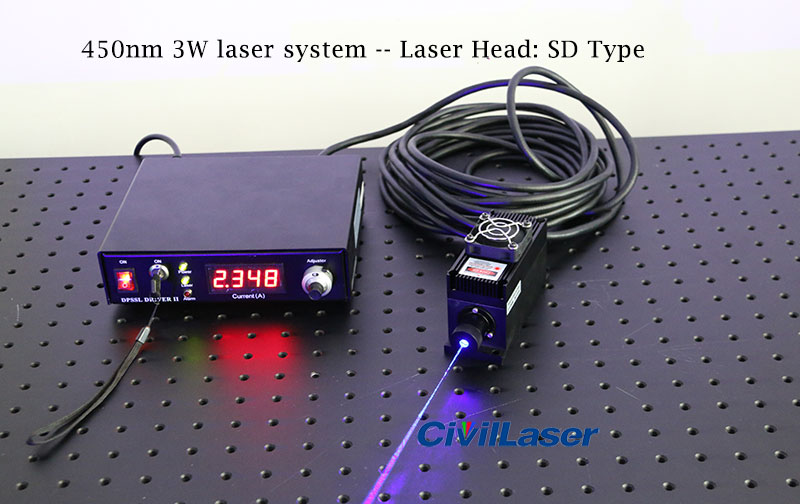

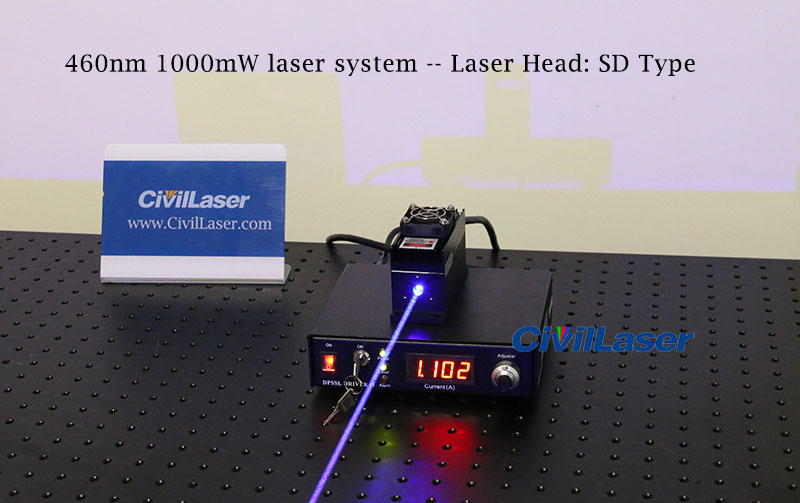

SD-Type: 114(L)*44(W)*61(H)mm3
SD2-Type: 114(L)*44(W)*65(H)mm3

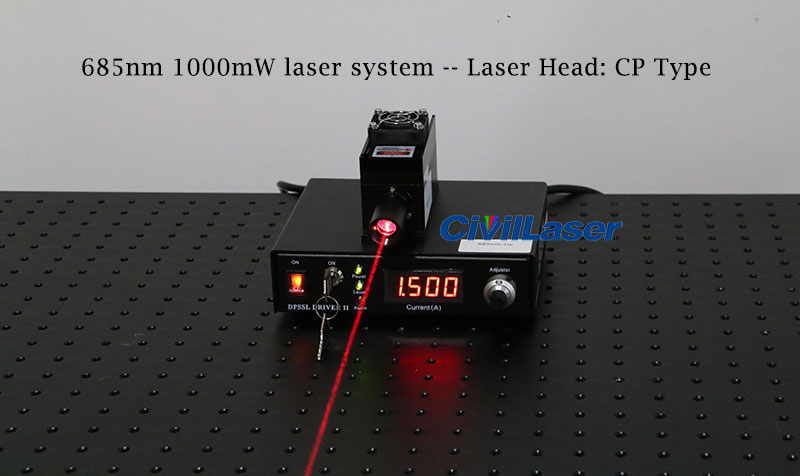

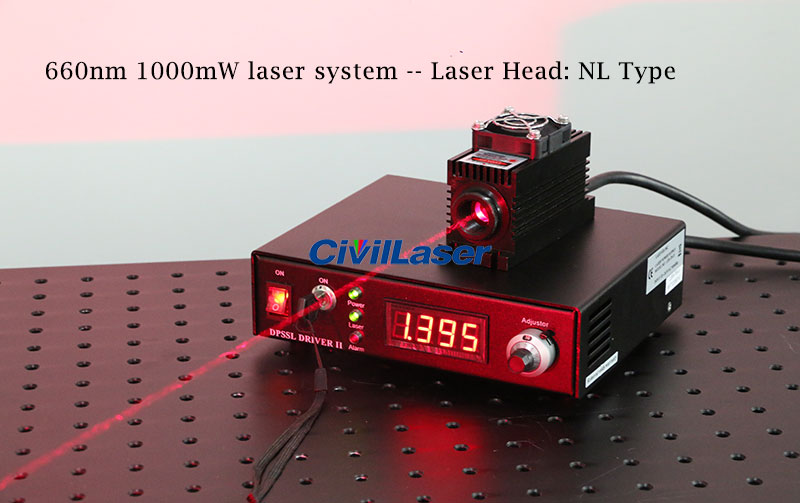

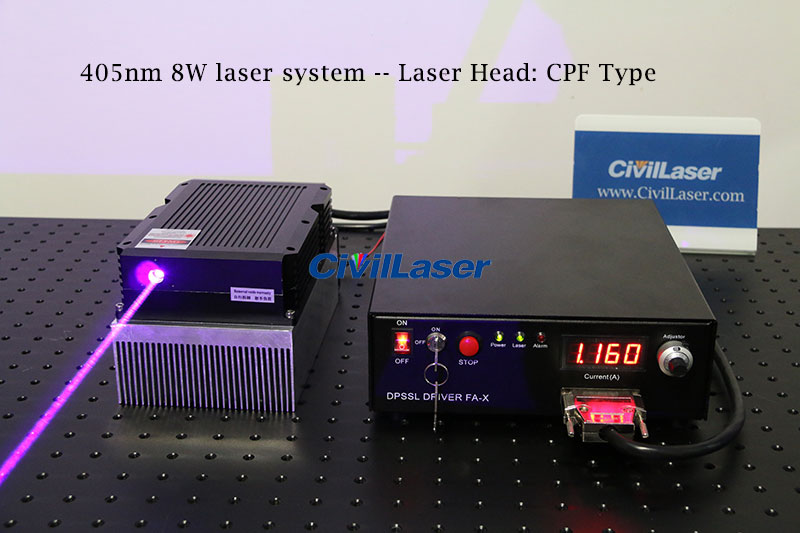

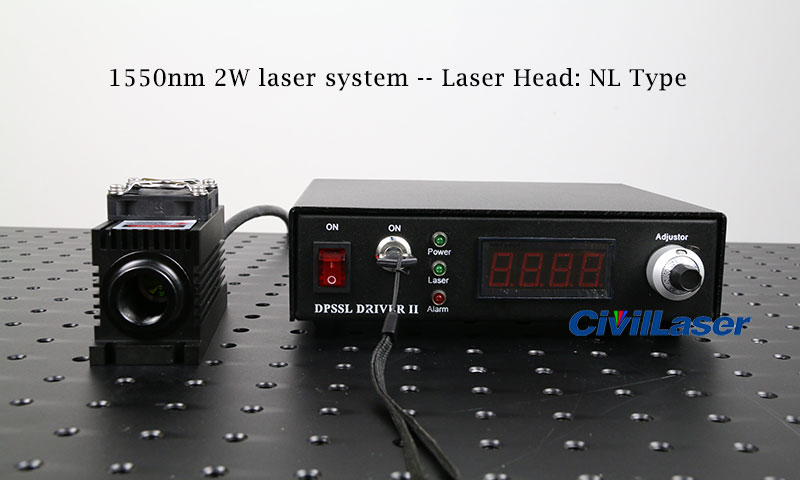

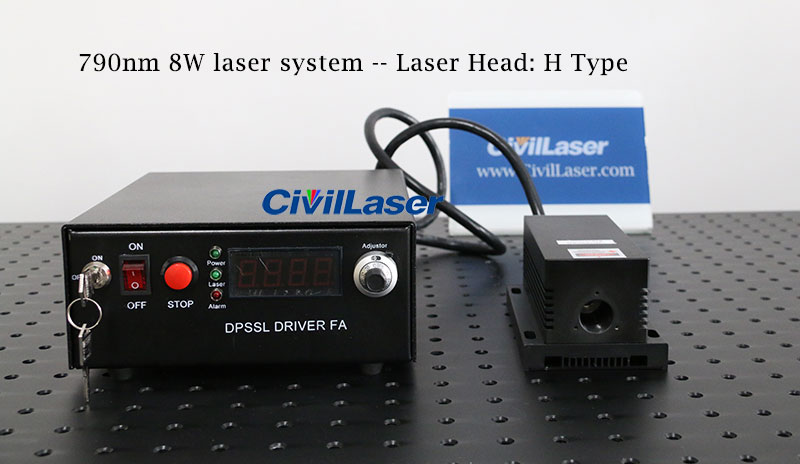

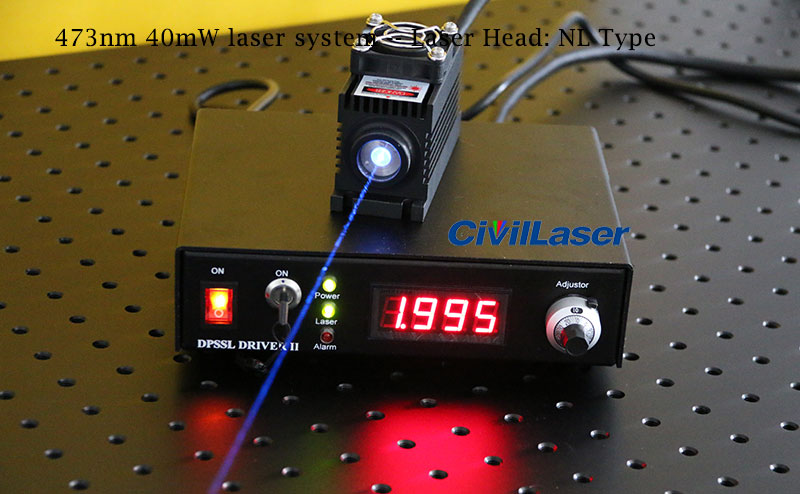

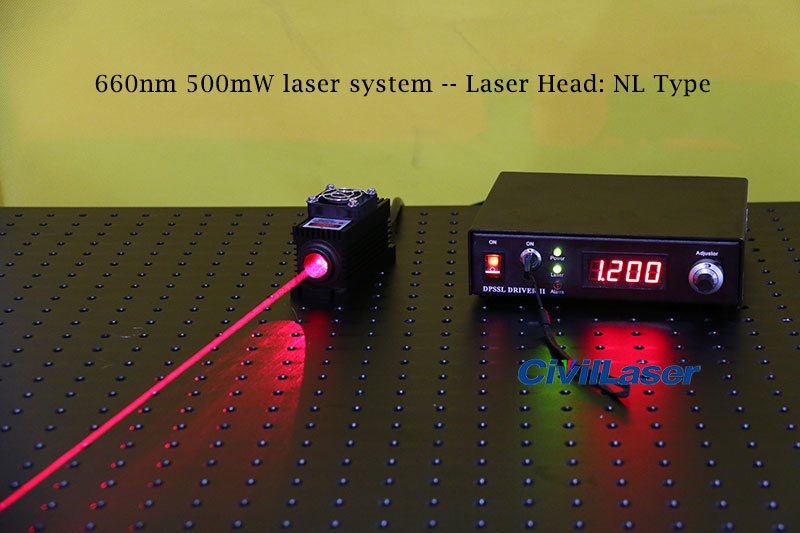

The following is a pictures list of common laser types for reference:

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size

laser head type size
