808nm 18W Fiber coupled laser with power supply

Starting at: $2,500.00

Please Choose:













Add to Cart:


808nm 18W Fiber coupled laser with power supply

[Specifications]

Product Name: 808nm 18W Fiber coupled laser with power supply

Lead Time: 1~3 weeks

Output Wavelength: 808±5nm

Output Power: 18W

Operating mode: CW or Modulation

Temperature Stabilizing: TEC

Warm Up Time: <10 minutes

MTTF(mean time to failure): 10,000 hrs

Fiber type: Multi-mode fiber/MM fiber

Fiber core diameter: 200um/400um/600um/800um/1000um(choose)

Fiber Numerical Aperture:0.22NA(100um~400um)/0.37NA(600um~1000um)

Fiber interface(output): FC/PC, FC/APC, SMA905(choose)

Fiber length: 1m/2m/3m (Choose)

Laser Head dimension: Near 211(L)*151(W)*50.5(H)mm3 (Click here find detail)

Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)

Power Supply-1: Standard Power Supply (Choose) (Click here find detail)

Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)

Modulation: 0~30KHz Analog or TTL

Warranty: 1 Year



[Package include]

1 x 808nm Fiber coupled  Laser

1 x Laser power supply

1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

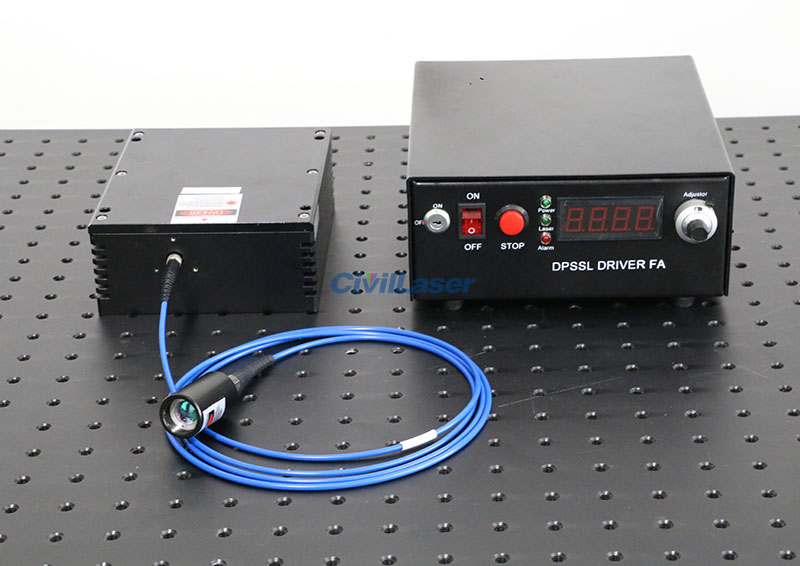

CivilLaser laser product image

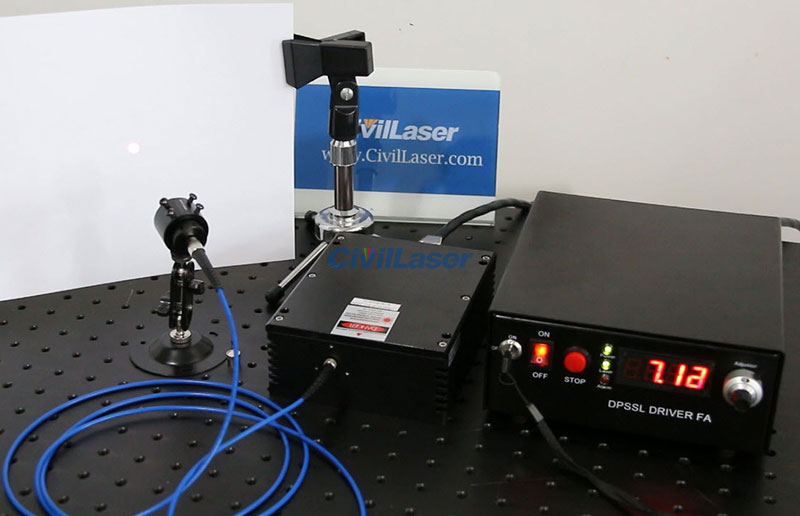

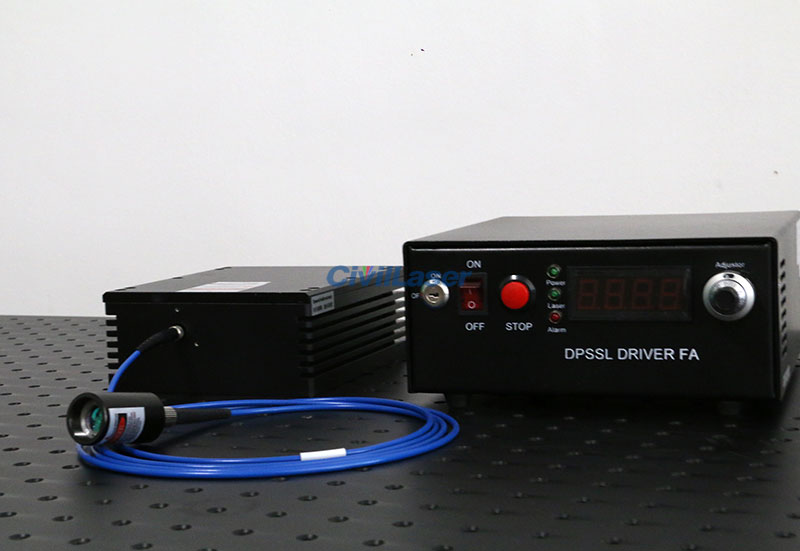

laser and fiber optics fiber coupled laser

laser and fiber optics fiber coupled laser

laser and fiber optics fiber coupled laser

civillaser power supply
