High Power Red Laser 637nm 3W  Semiconductor Laser Output Power Adjustable

[Specifications]
Product Name:  637nm Semiconductor Laser
Output Wavelength:  637nm ± 6nm
Spatial Mode: Multi mode
Output Power: 3W
Operating Mode: CW or Modulation
Line Width: <1nm
Pointing Stability: <0.05mrad
Beam Diameter(1/e2): Near 5*5mm
Beam Divergence (Full Angle): <1*2mrad
Beam Height: Near 25mm
Power Stability: <±5% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Modulation: 0~30khz Analog or TTL
Laser Head Dimension: Near 175(L)x92(W)x60(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Laser Radiator/Heat Sink: Not Include / Include (Choose) (Click here find detail)
Warranty: 1 Year

[Packing list]
1 x Red Semiconductor laser
1 x Laser Power supply

[Note]
There will be a little loss in actual output power.
e.g.  If 6W is selected, the actual power is about 5.8~6w.

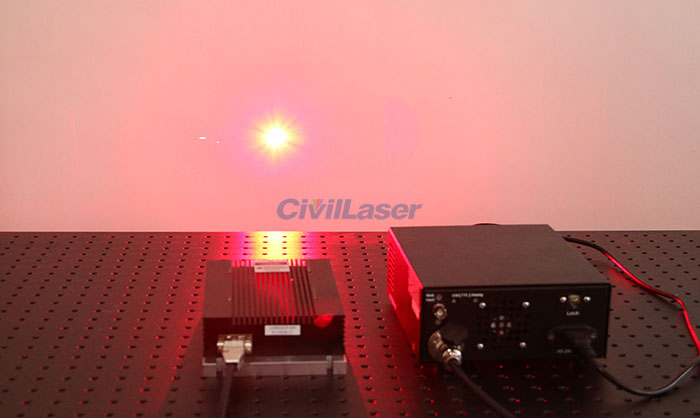

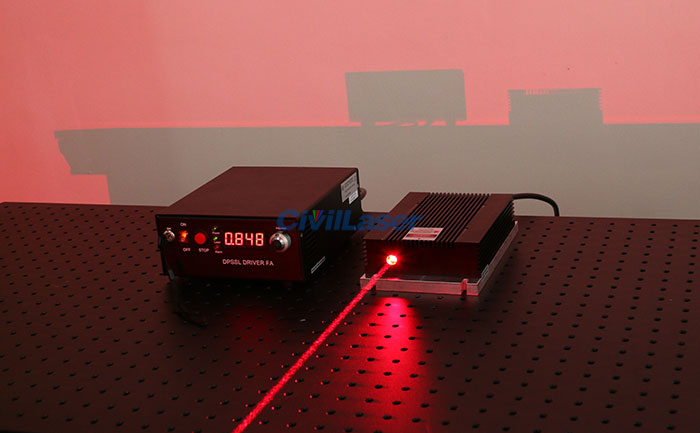

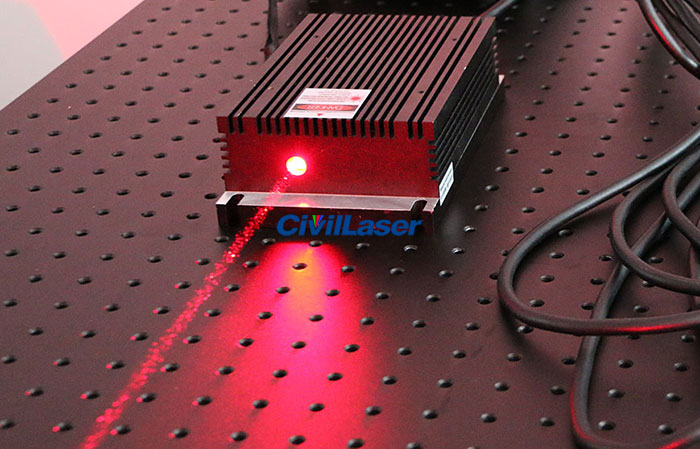

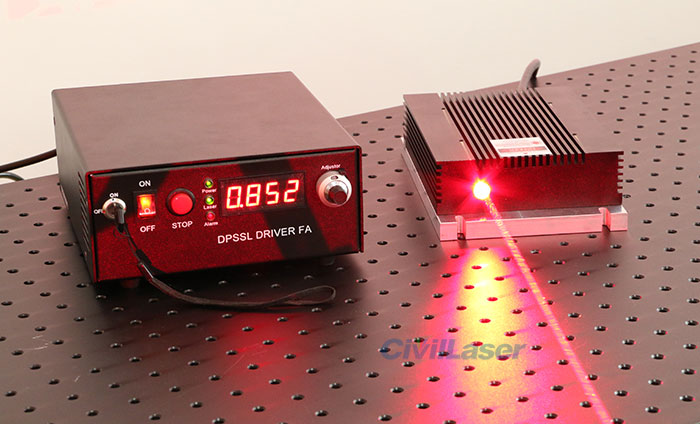

CivilLaser laser product image
