1875nm 5W High Power IR Fiber Coupled Laser Lab Fiber Laser Source

Starting at: $13,323.00

Please Choose:











Add to Cart:


1875nm 5W High Power IR Fiber Coupled Laser Lab Fiber Laser Source

[Specifications]
Product Name: 1875nm Fiber coupled laser
Lead Time: 1~3 weeks
Output Wavelength: 1875nm±20nm
Output Power: 5W
Operating Mode: CW or Modulation
Power Stability: <3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 100μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture:0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length:1m/2m/3m (Choose)
Laser Head Dimension: Near 211(L)x151(W)x50.5(H)mm³ (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Laser Radiator/Heat Sink: Not Include/Include (Choose) (Click here find detail)
Modulation: 0~30KHz Analog or TTL
MTTF(mean time to failure): 10,000 hrs
Warranty: 1 Year

[Package Include]
1 x Laser head
1 x Power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

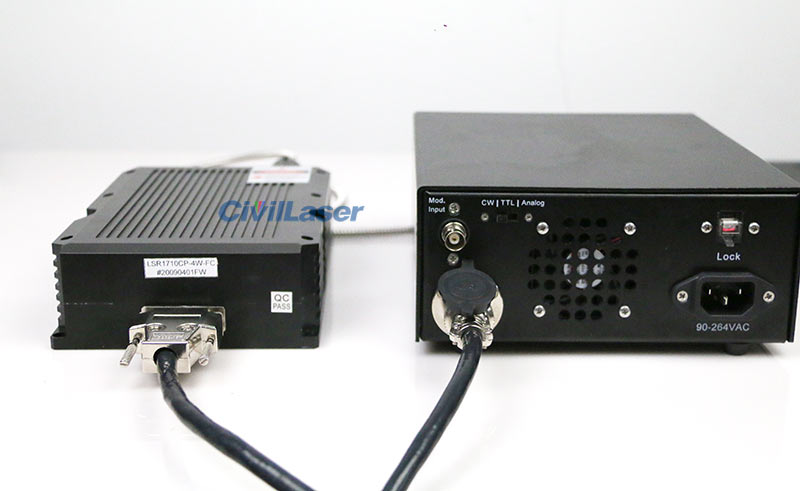

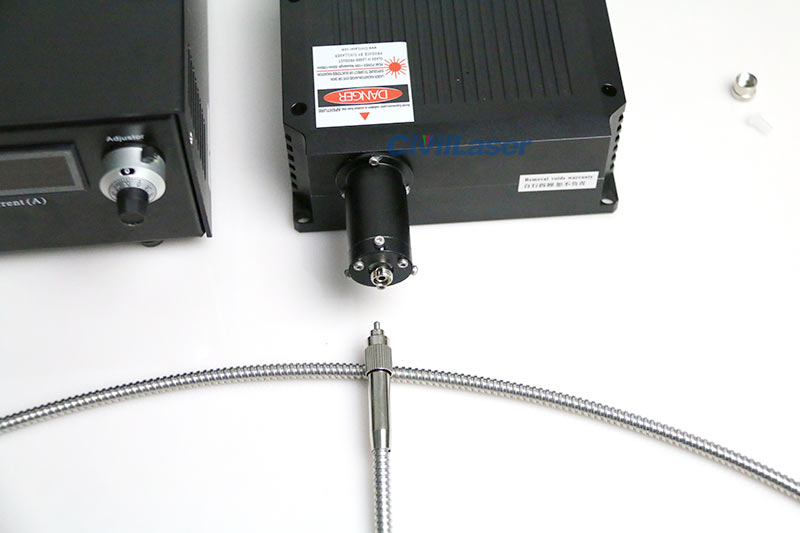

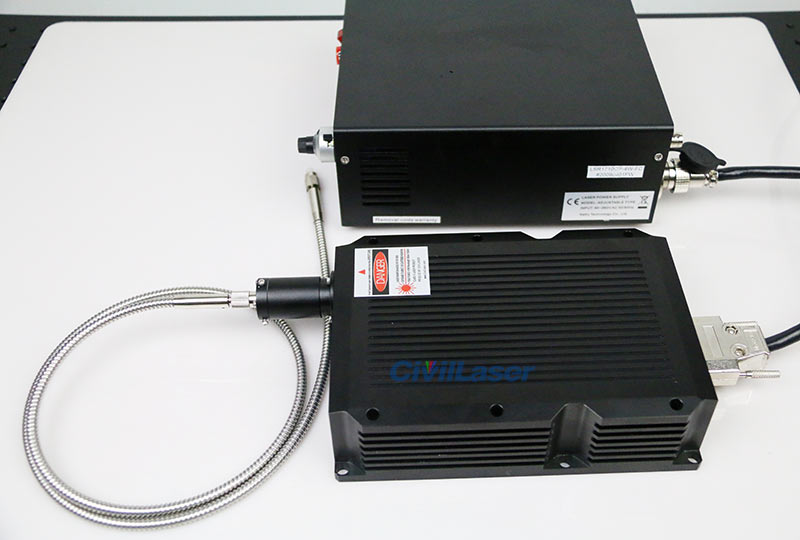

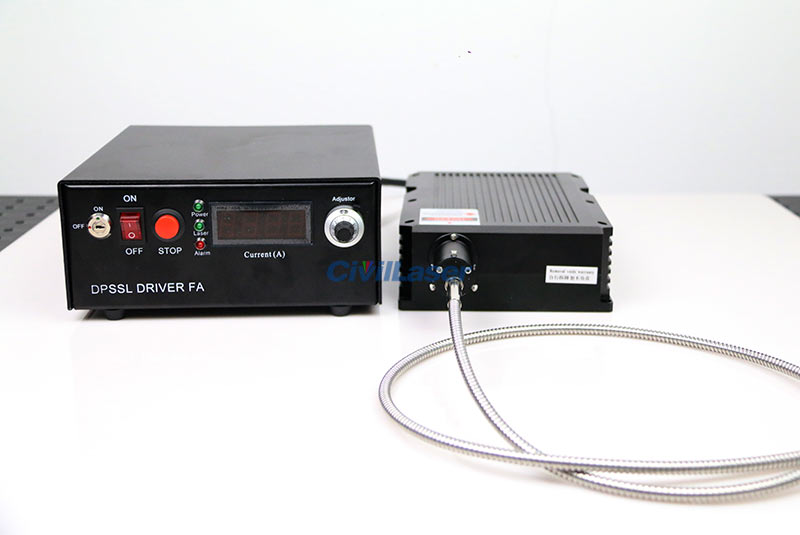

CivilLaser laser product image
