880nm 20W High Power Fiber Coupled Laser IR Lab Laser System

Starting at: $2,963.00

Please Choose:











Add to Cart:


880nm 20W High Power Fiber Coupled Laser IR Lab Laser System

[Specifications]
Product Name: 880nm Fiber coupled laser
Lead Time: 1~3 weeks. Custom product available!
Output Wavelength: 880±5nm
Output Power: 20W
Operating Mode: CW or Modulation
Power Stability: <±3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 100μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture:0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 211(L)x151(W)x50.5(H)mm³ (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Laser Radiator/Heat Sink: Not Include / Include (Choose) (Click here find detail)
Modulation:  0~30khz Analog or TTL
Warranty: 1 Year

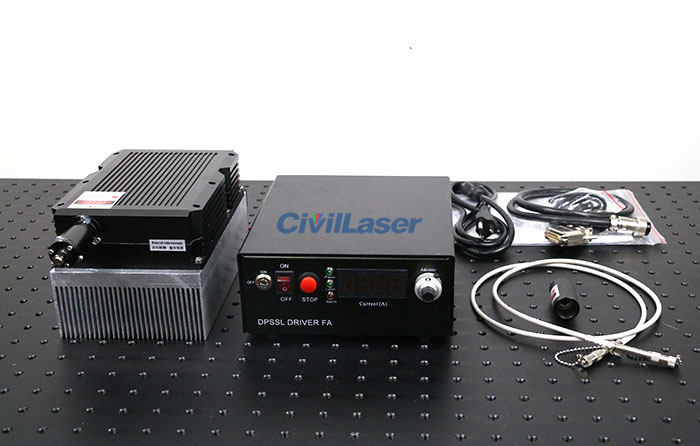

[Package Include]
1 x 880nm Laser head
1 x Power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

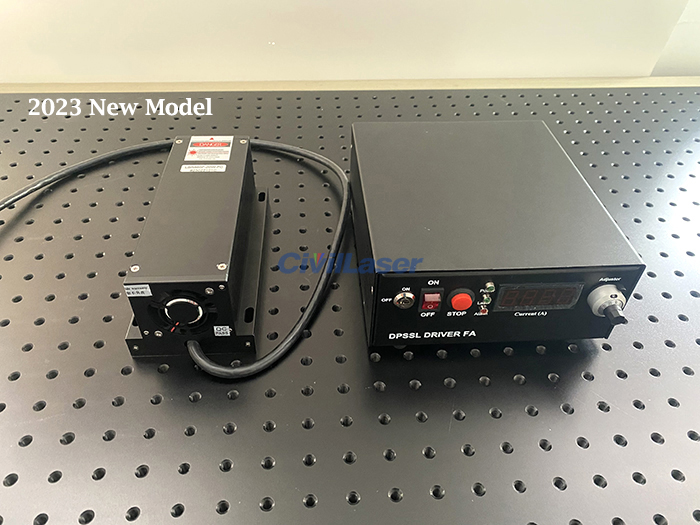

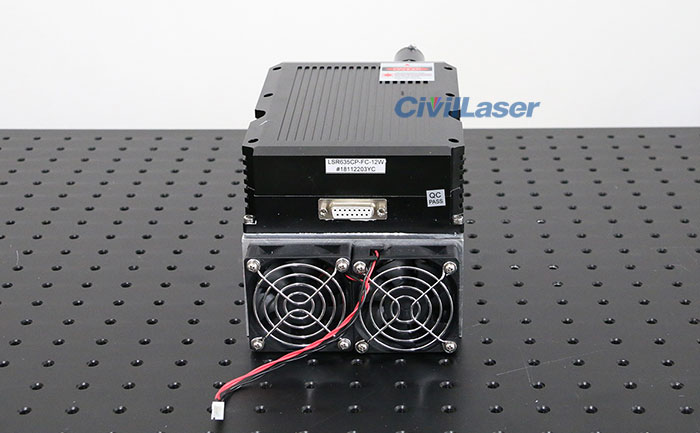

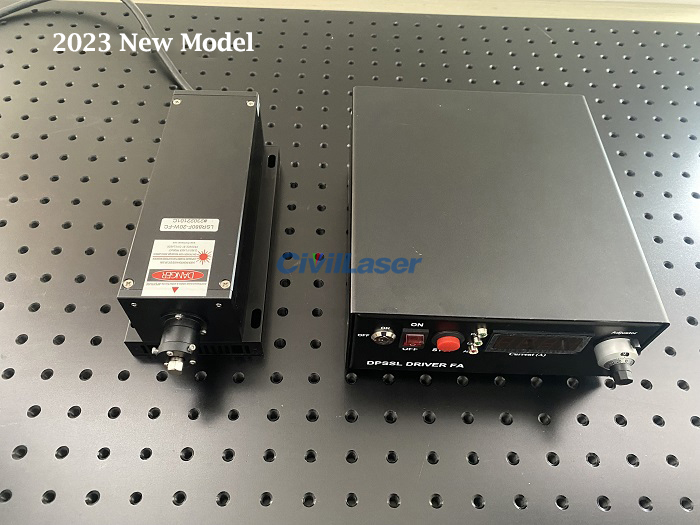

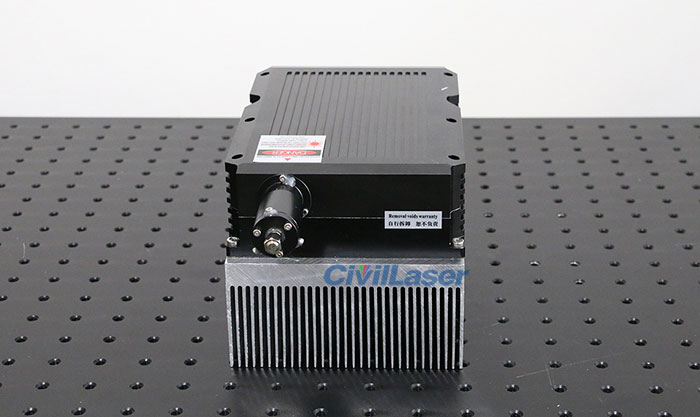

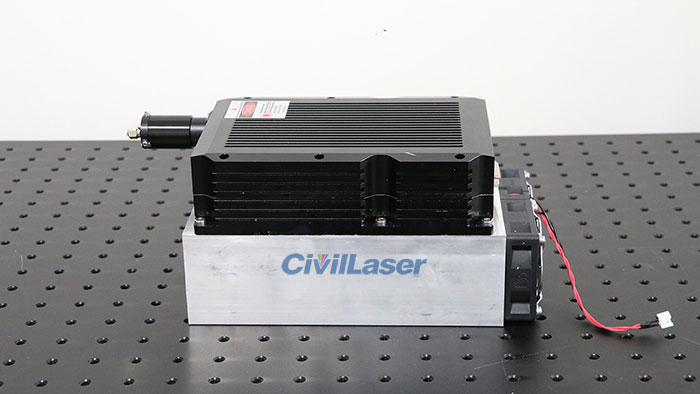

CivilLaser laser product image

Note:
The high-power laser has 2 models, which are sent randomly by default.
If you have requirements for size, please contact us before placing an order.
