980nm laser 38W ir semiconductor laser High stability laser

Starting at: $4,130.00

Please Choose:



Add to Cart:

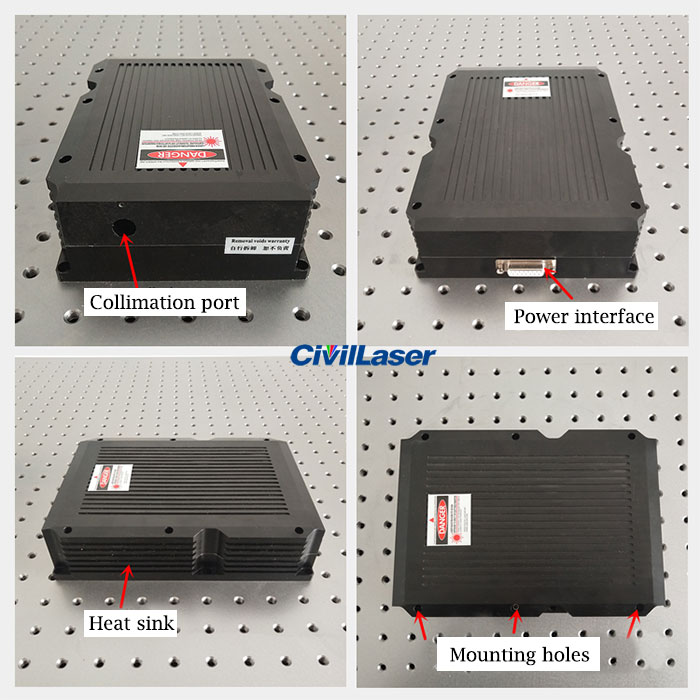

980nm laser 38W ir semiconductor laser  High stability laser

[Specifications]
Product Name: 980nm IR Semiconductor Laser
Lead Time: 1~3 weeks
Wavelength: 980(+/-5) nm
Output Power: 38W
Operating mode: CW or Modulation
Prejudiced way: 10:1
Pointing Stability: <0.05 mrad
Beam diameter: 6mm
Beam Divergence Angle:  2.5 mrad
Power stability: <±3% per 2 hrs
Bean Height: 29mm
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam quality(M2): <20
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs

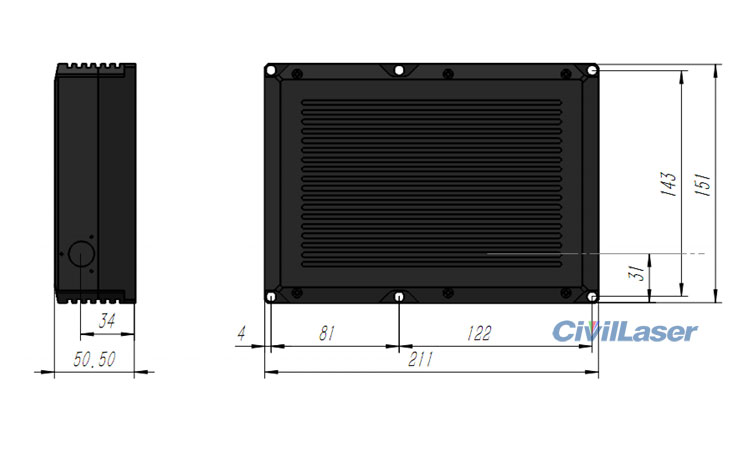

Laser dimensions: 155(L)x77(W)x60(H)mm3
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Modulation:  0~30khz Analog or TTL

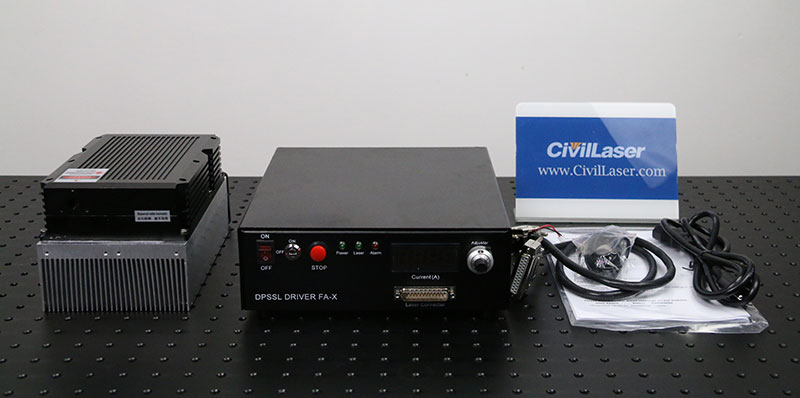

[Package include]

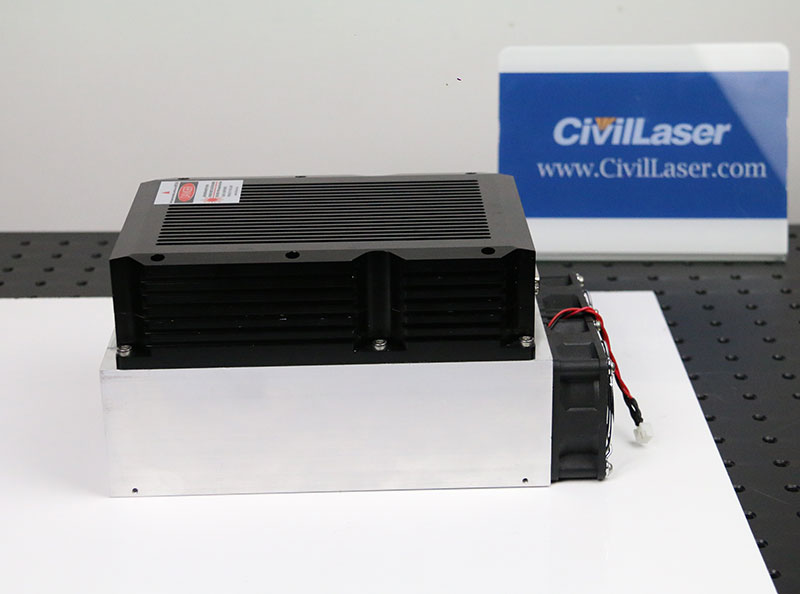

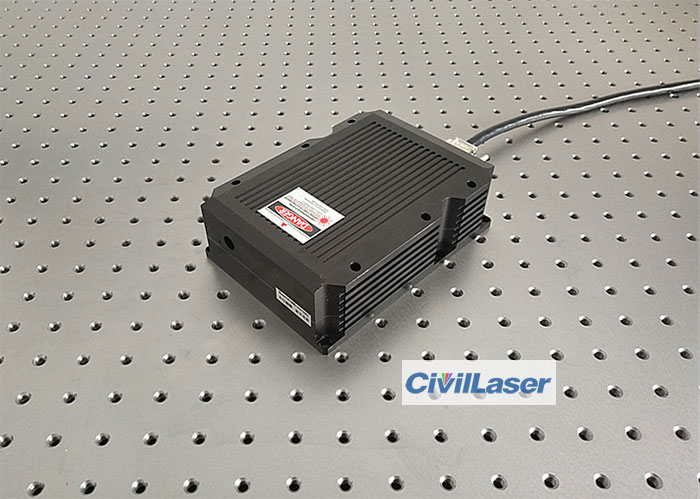

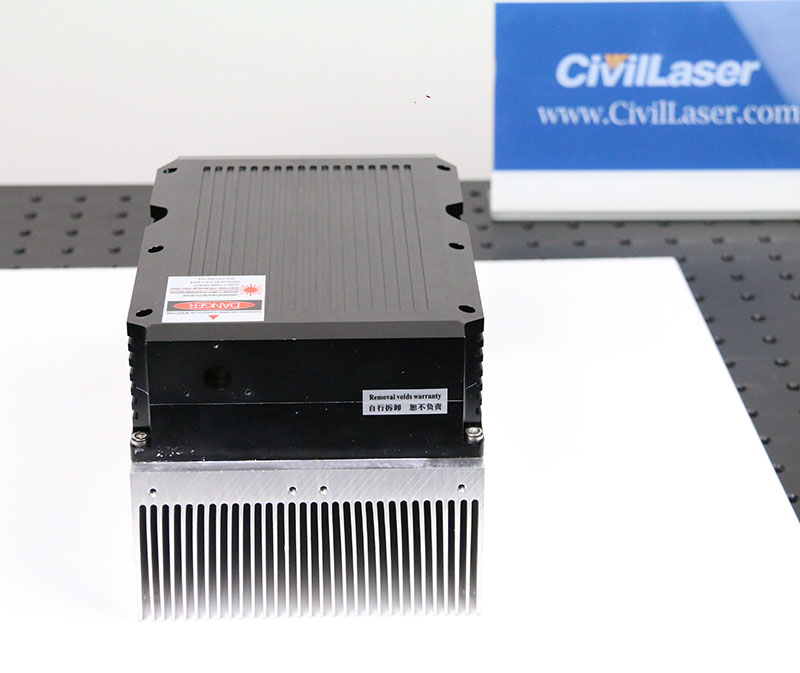

1 x 980nm IR  Laser

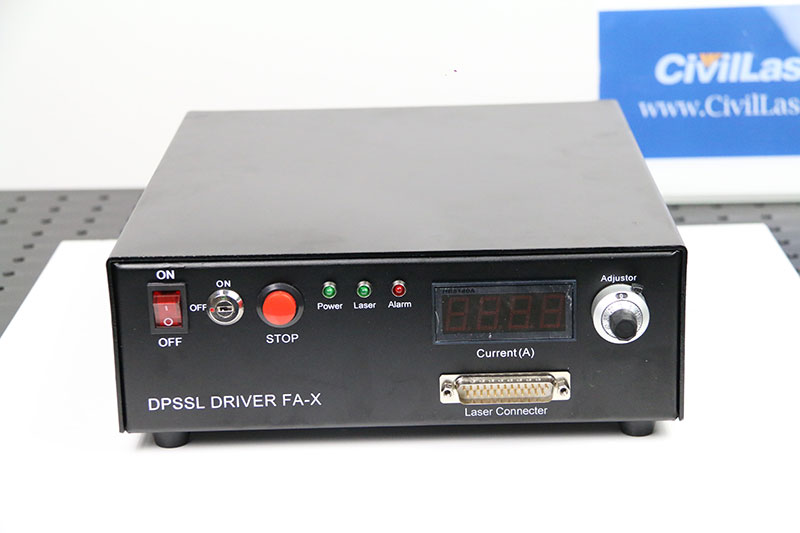

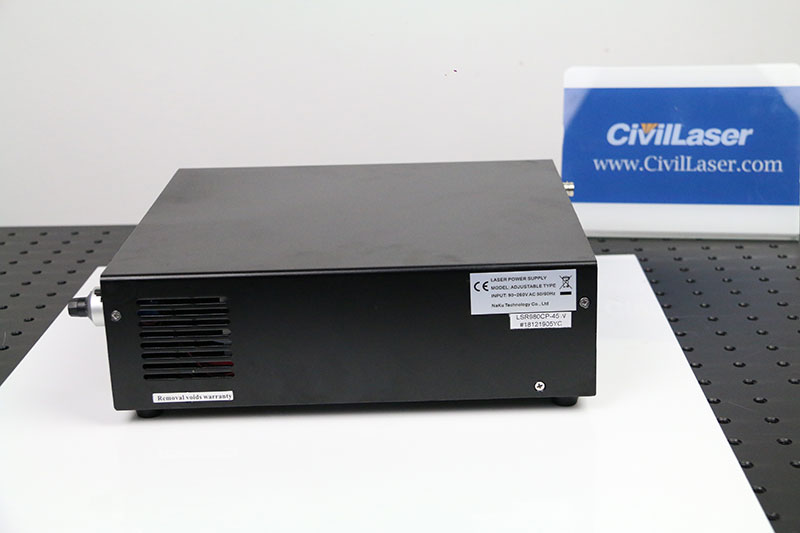

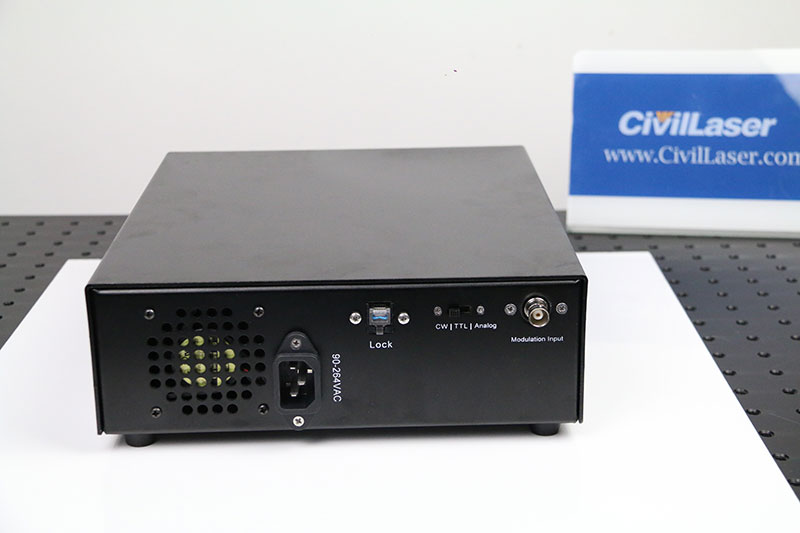

1 x Laser power supply
