405nm 10W Blue-Violet laser 0~10000mw output power adjustable with TTL modulation

Starting at: $17,941.00  $3,223.00
Save: 82% off

Please Choose:





Add to Cart:


405nm 10W Blue-Violet laser  0~10000mw output power adjustable with TTL modulation

[Specifications]
Product Name: 405nm 10W Blue-Violet high power Semiconductor laser
Lead Time: 1~3 weeks! Custom product available!
Output Wavelength: 405±6 nm
Spatial mode: Multi-mode
Output Power: 10W (10000mW)
Operating mode: CW or Modulation
Beam Height: Near 34mm
Beam Size: Near 7x7mm
Beam Divergence(Full Angle):  1.5*1.5 mrad
Power Stability:  <3% per 4 hrs
Warm Up Time: <1 minute
MTTF(mean time to failure): 10,000 hrs
Laser Head Dimension: Near 211(L)x151(W)x50.5(H)mm (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Laser Radiator/Heat Sink: Not Include / Include (Choose) (Click here find detail)
Modulation:  0~30khz Analog or TTL
Warranty: 1 Year

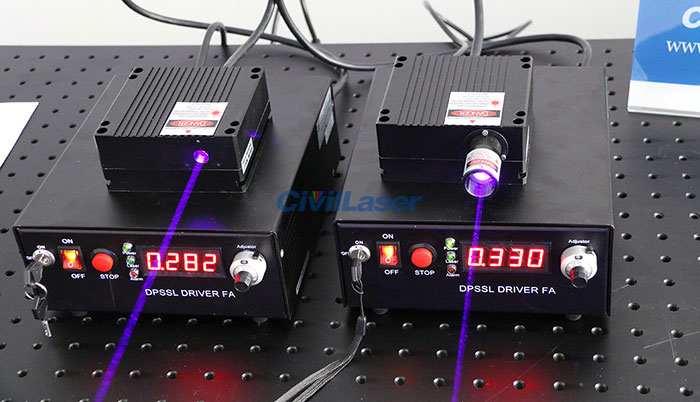

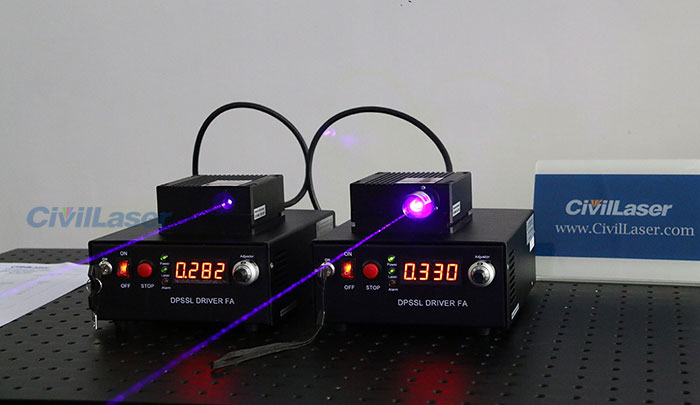

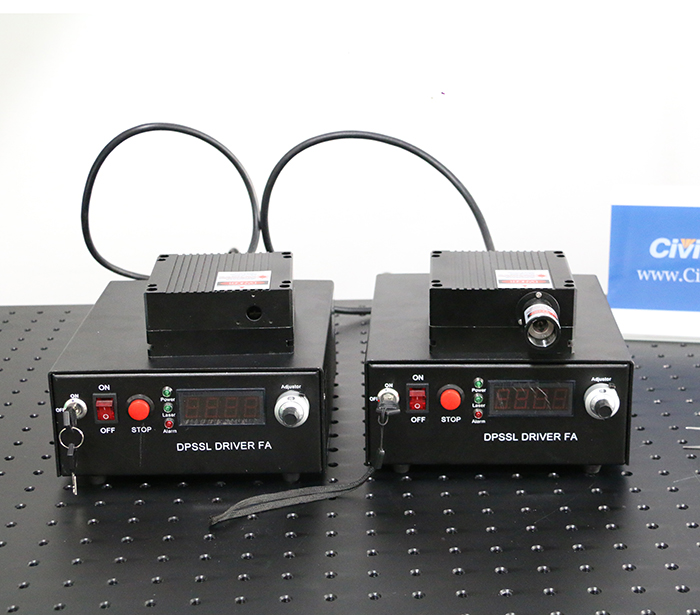

CivilLaser laser product image
