785nm Near-infrared Laser System Fiber Output
It is 785nm 3W fiber coupled laser system. This is a model in which the laser module and power supply are integrated. It support continuous work and modulation mode. The default is button control, software control function can be customized.

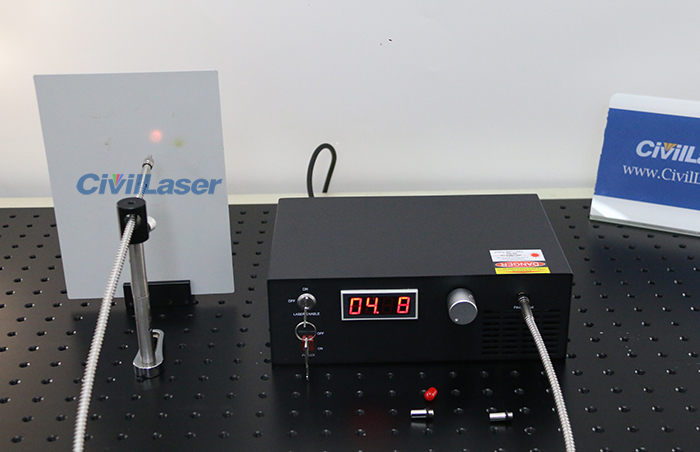

The output power of the fiber output end is adjustable from 0 to 3W. And the optical fiber is pluggable. Turn the silver knob clockwise for adjust the working current and thus the output power. The 785nm is a near-infrared laser, and only a faint red spot can be seen on the light shield. Let’s check it now.
The effect of adding fiber optics.

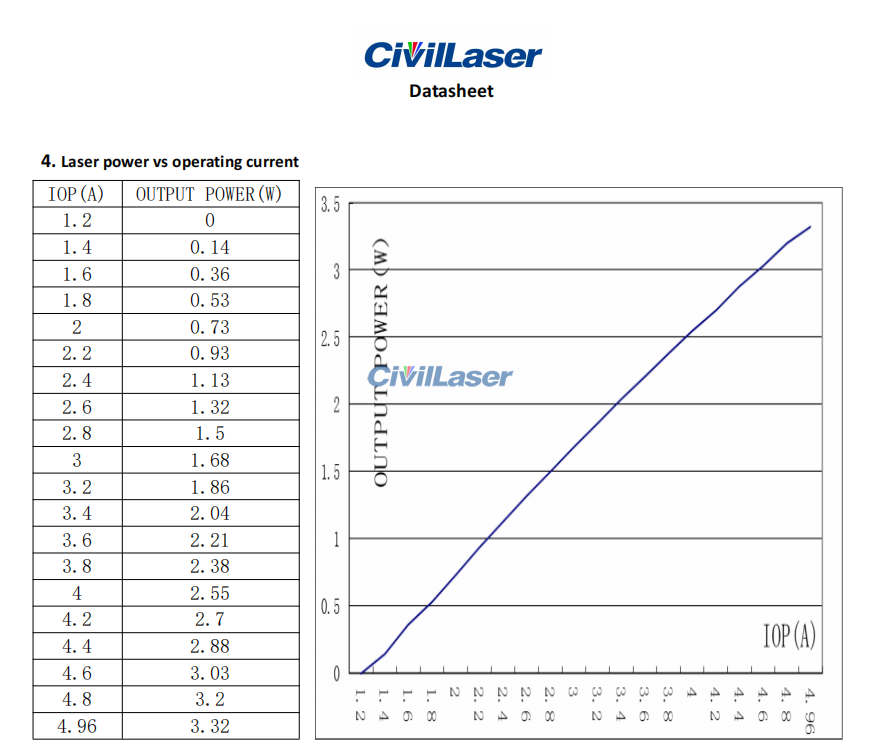

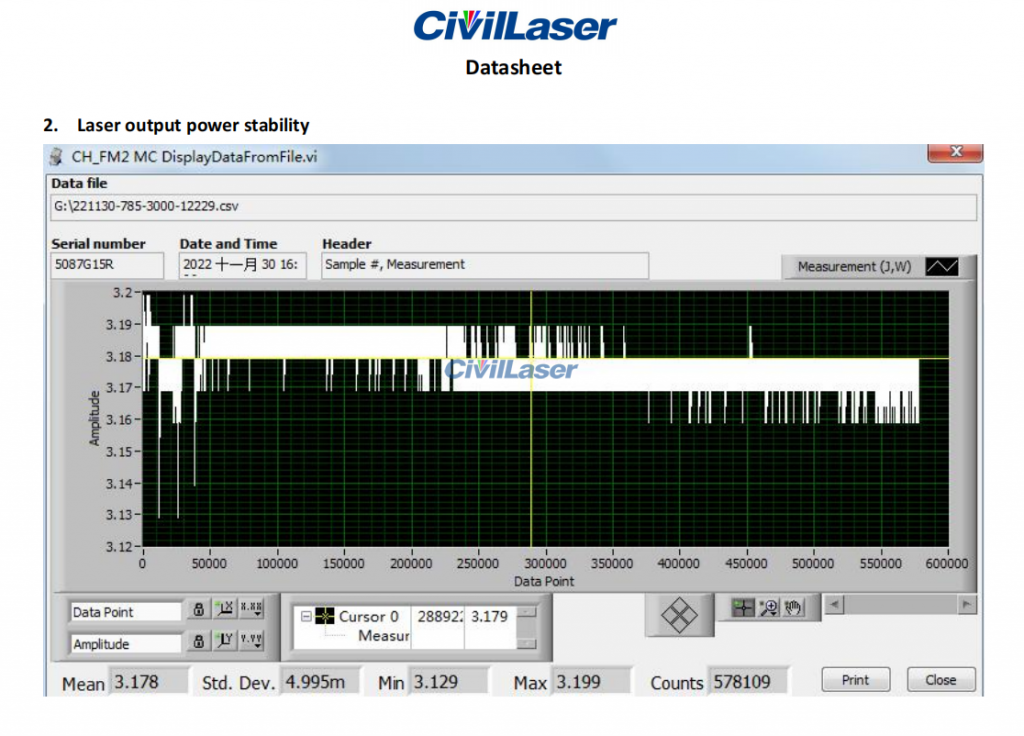

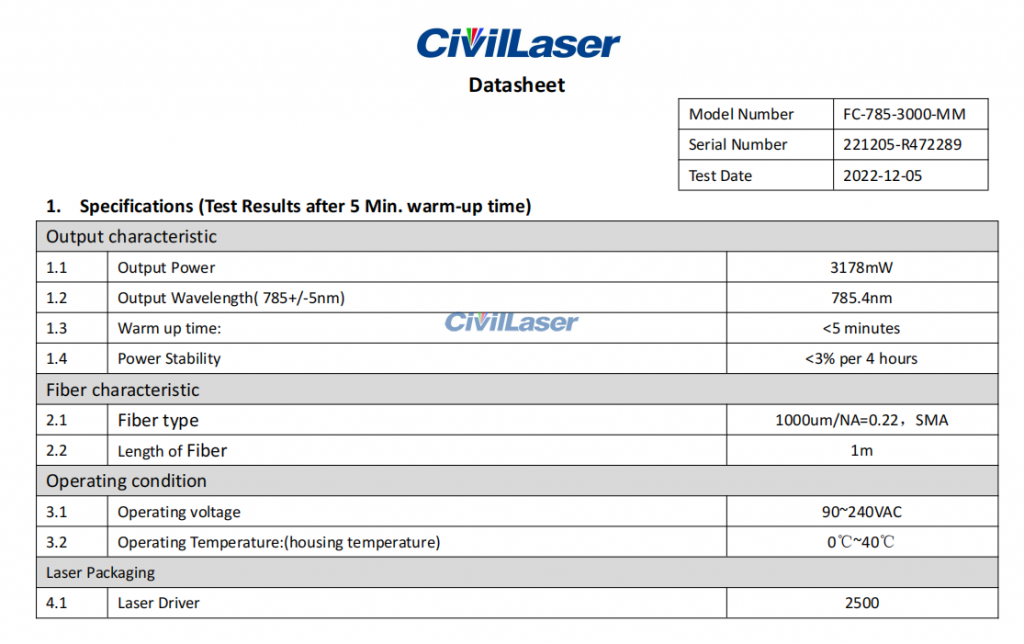

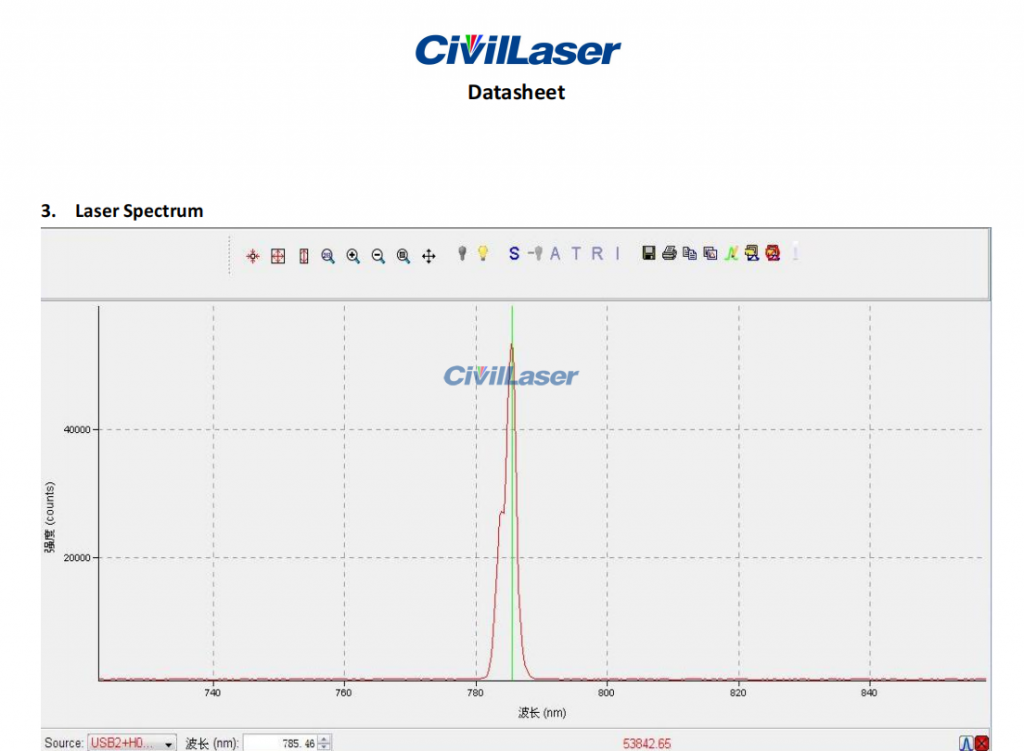

The test report of 785nm 3W integrating fiber laser.
