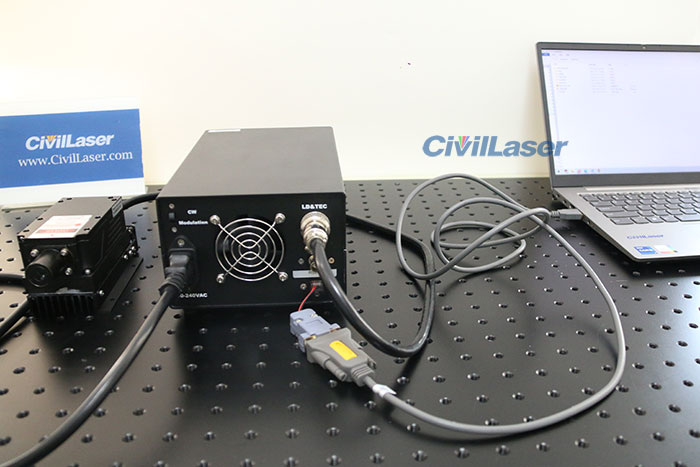

It is 532nm DPSS laser source. This laser source can be controlled by software. The connection of the laser and the PC software, using the RS232 communication protocol. The laser supports two modes of operation CW/Modulation, and an external signal input is required when switching to Modulation.
Software operation.

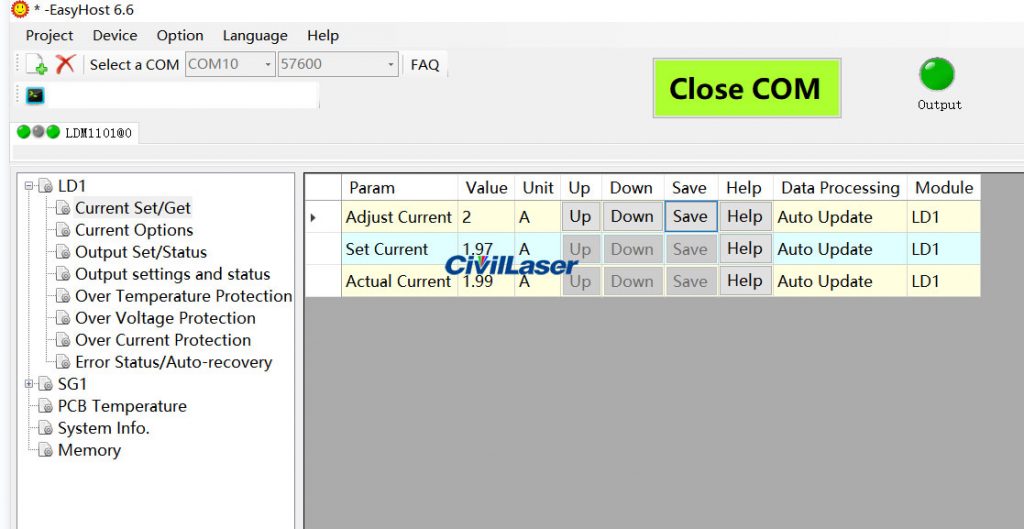

Click the [Open COM] button to connect the control circuit on the laser.
Multiple laser operating parameters can be viewed/set in the software.
As a special reminder, it is necessary to set a maximum working current parameter according to the current laser first, so as to avoid the current of the later regulation being too high and damaging the laser.

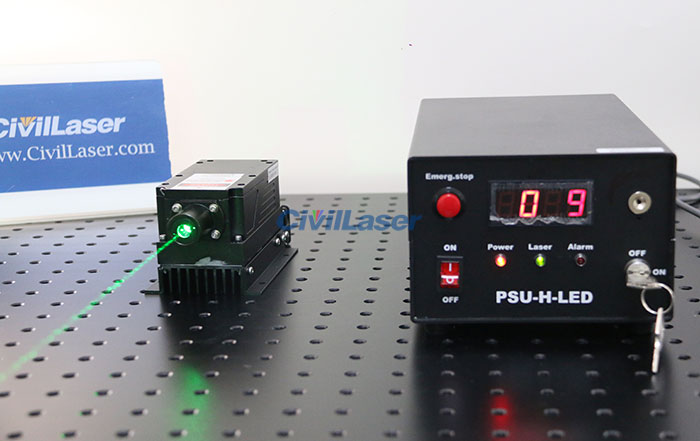

Here is the free space output, and it is also possible to customize the fiber-coupled laser.
