589nm dpss laser 500mw Lab adjustable output power Yellow light source for scientific research

Starting at: $3,727.00

Please Choose:



Add to Cart:

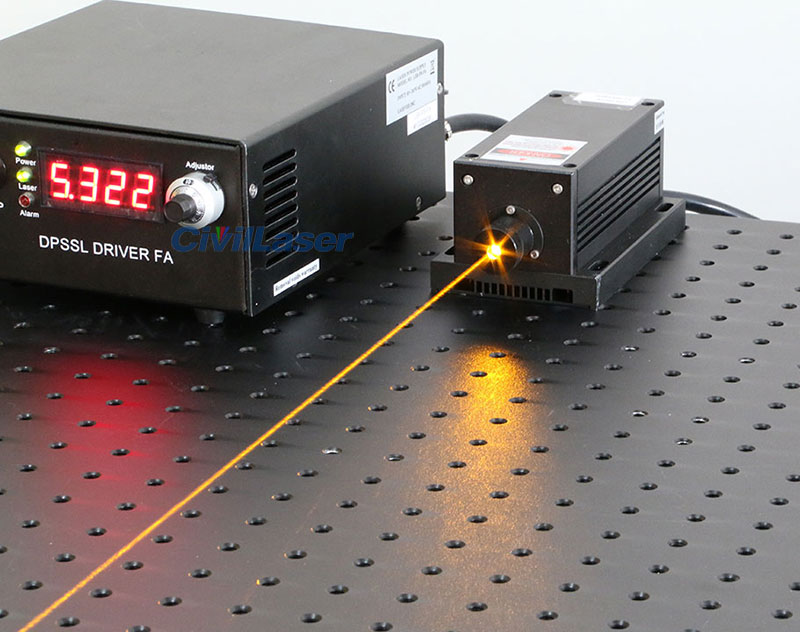

589nm 500mW  DPSS laser Yellow laser source for scientific research

This 589nm Yellow dpss laser include a digital power supply.
this power supply include a current adjuster knob, by adjusting the current you can adjust the laser's output power.

[SPECIFICATIONS]
Product Name: 589nm DPSS Laser System
Lead Time: 4~6 weeks
Output Wavelength: 589±1nm
Spatial Mode: near TEM00
Output Power: 500mW
Operation Mode: CW or Modulation
Modulation: Analog/TTL modulation 0~30Khz
Beam Diameter(1/e2): <3 mm
Beam Divergence (Full Angle): <2  mrad
Beam Height: Near 29mm
Power Stability: <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam Quality (M2): <2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser Head Dimension: Near 167(L)x77(W)x60(H) mm (Click here find detail)

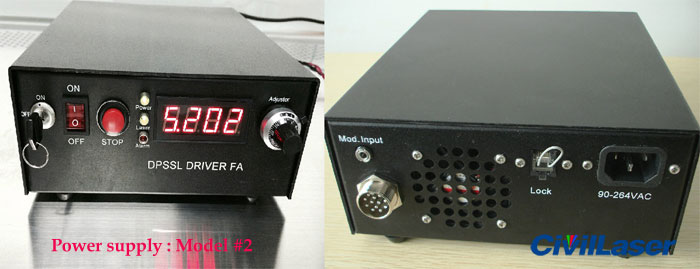

Power Supply: Lab Adjustable Power Supply  (Click here find detail)
Warranty: 1 Year

[PACKAGE INCLUDES]
1 x 589nm DPSS Laser
1 x Laser Power Supply
