980nm 200mW IR Fiber Coupled Laser Infrared Lab Laser System

980nm 200mW IR Fiber Coupled Laser Infrared Lab Laser System

[Specifications]
Product Name: 980nm Fiber Coupled Laser
Lead Time: 1~3 weeks!
Output Wavelength: 980±5 nm
Output Power: 200mW
Operating mode: CW or Modulation
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber type: Multi-mode fiber/MM fiber
Fiber core diameter: 100um/200um/400um/600um/800um/1000um (Choose)
Fiber Numerical Aperture:0.22NA(100um~400um)/0.37NA(600um~1000um)
Fiber interface(output): FC/PC, FC/APC, SMA905 (Choose)
Fiber length: 1m/2m/3m (Choose)
Laser Head dimension: Near 100(L)*40(W)*50(H)mm³ (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30KHz Analog or TTL
Warranty: 1 Yea

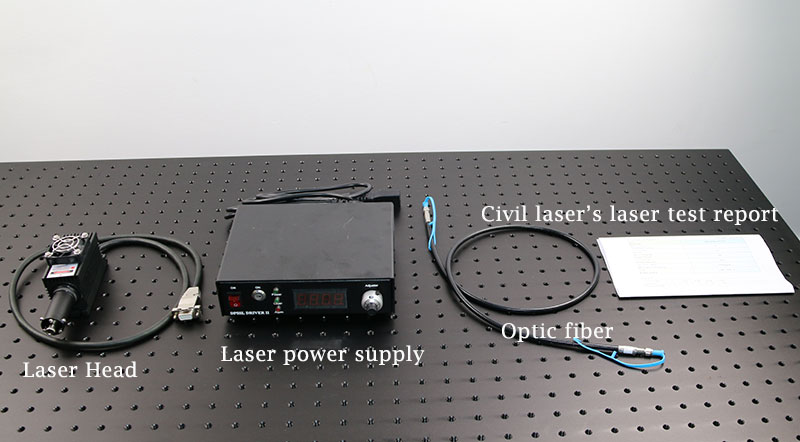

[Package include]
1 x 980nm Laser head
1 x Laser power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
