520nm 1000mW Green Fiber Coupled Laser Lab Laser System

Starting at: $1,226.00  $1,112.00
Save: 9% off

Please Choose:









Add to Cart:


520nm 1000mW Green Fiber Coupled Laser Lab Laser System

[Specifications]
Product Name: 520nm Fiber coupled Laser
Lead Time: 1~3 weeks,Custom product available!
Output Wavelength: 520±5 nm
Output Power: 1000mW
Operating mode: CW or Modulation
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minute
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 105μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture: 0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 114(L)*44(W)*65(H)mm³ (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year


[Package include]
1 x 520nm Laser head
1 x Laser power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

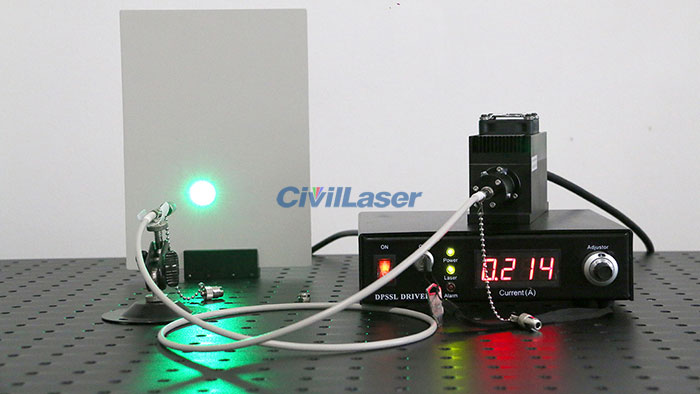

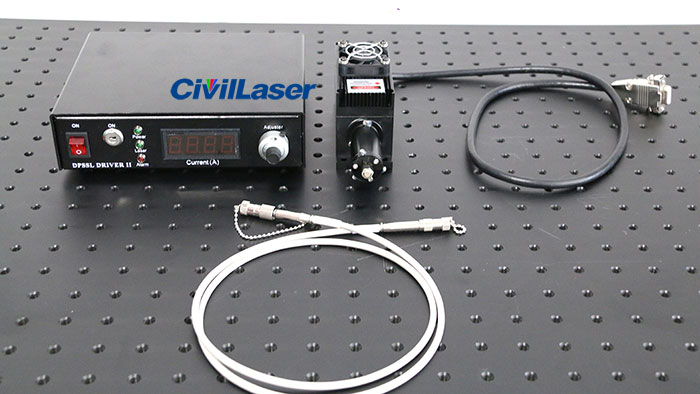

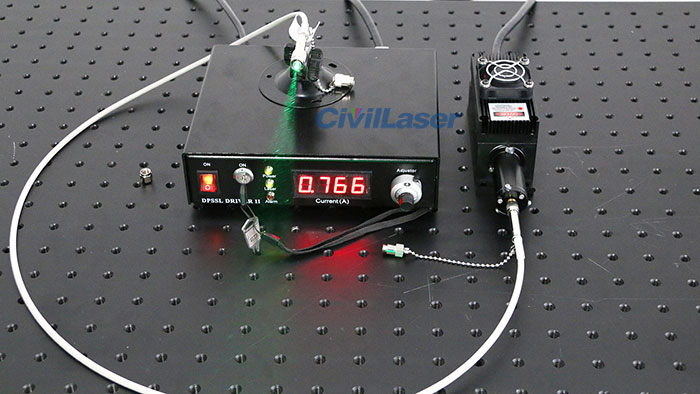

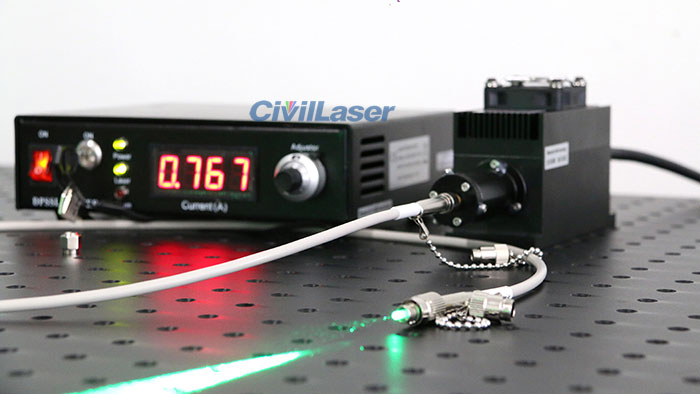

CivilLaser laser product image
