940nm 30W High Power Fiber Coupled Laser CW&TTL/Analog Modulation

Starting at: $4,821.00  $4,545.00
Save: 6% off

Please Choose:









Add to Cart:


940nm 30W High Power Fiber Coupled Laser CW&TTL/Analog Modulation

[Specifications]
Product Name: 940nm Fiber coupled laser
Lead Time: 1~3 weeks! Custom product available!
Output Wavelength: 940±5 nm
Output Power: 30W
Operating mode: CW or Modulation
Power stability: <3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber type: Multi-mode fiber/MM fiber
Fiber core diameter: 200um/400um/600um/800um/1000um (Choose)
Fiber Numerical Aperture:0.22NA(100um~400um)/0.37NA(600um~1000um)
Fiber interface(output): FC/PC, FC/APC, SMA905 (Choose)
Fiber length: 1m/2m/3m (Choose)
Laser Head dimension: Near 155(L)*77(W)*60(H)mm³ (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30KHz Analog or TTL
Warranty: 1 Year

[Package include]
1 x 940nm Laser head
1 x Laser power supply
1 x  Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

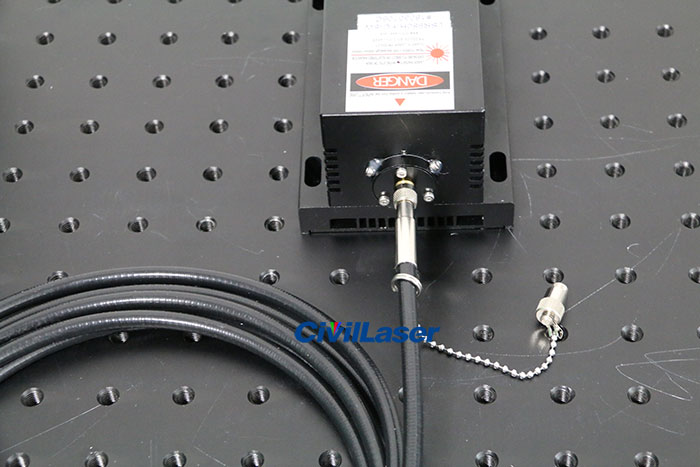

CivilLaser laser product image
