650nm/655nm/660nm 1000mw Red Semiconductor laser with Lab Adjustable type power supply

Starting at: $770.00

Please Choose:

Wavelength





Add to Cart:


650nm/655nm/660nm 1000mW Red Semiconductor laser with Lab Adjustable type power supply

The 650nm LD chips is out of stock, the laser wavelength  655nm~658nm is in stock.

[Specifications]
Product Name: Red  Semiconductor laser
Output Wavelength: 655nm/660nm±5nm(choose)
Spatial Mode: Multi mode
Output Power: 1000mW
Spatial Mode: Multimode
Operating Mode: CW or Modulation
Pointing Stability: <0.05 mrad
Beam Diameter (1/e2): <6mm
Beam Divergence (Full Angle):  <3mrad
Power Stability: <±3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <2 minutes
MTTF(mean time to failure): 10,000 hrs
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
Modulation: 0~30khz Analog or TTL
Laser Head Dimension: Near 100(L)x40(W)x50(H)mm3 (fan adds height) (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Warranty: 1 Year

[Packing list]

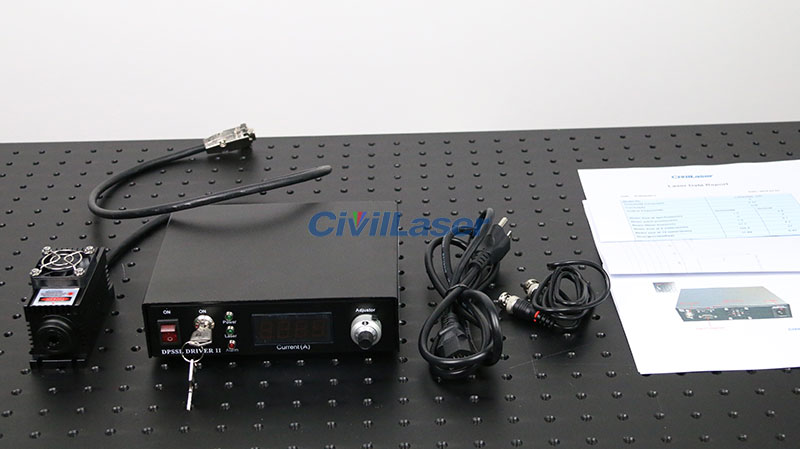

1 x Red Semiconductor laser
1 x Power supply
