772nm 1000mW Fiber Coupled Laser NIR Fiber Laser Source

Starting at: $1,997.00

Please Choose:









Add to Cart:


772nm 1000mW Fiber Coupled Laser NIR Fiber Laser Source

[Specifications]
Product Name: 772nm fiber coupled laser
Lead Time: 1~3 weeks!
Output Wavelength: 772nm±5nm
Output Power: 1000mW
Operating mode: CW or Modulation
Power Stability: <±3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <2 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber type: Multi-mode fiber/MM fiber
Fiber core diameter: 100um/200um/400um/600um/800um/1000um(Choose)
Fiber Numerical Aperture:0.22NA(100um~400um)/0.37NA(600um~1000um)
Fiber interface(output): FC/PC, FC/APC, SMA905(Choose)
Fiber length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 100(L)x40(W)x50(H)mm³ (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

[Packing List]
1 x 772nm laser head
1 x Power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

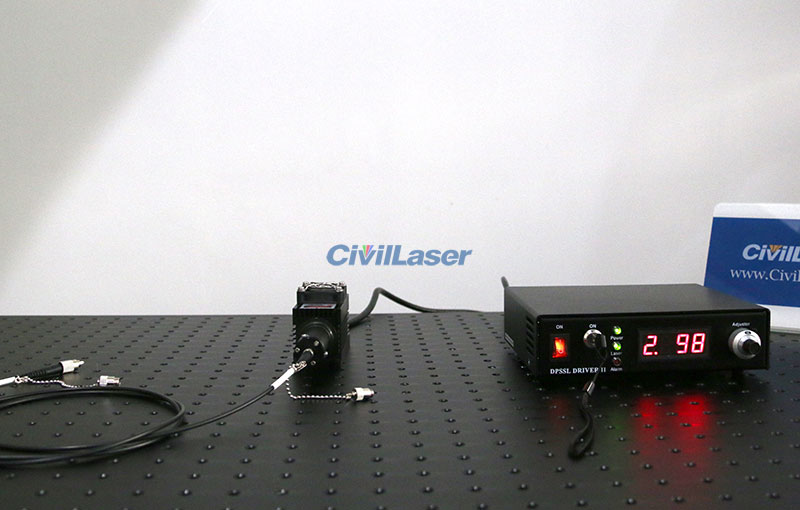

CivilLaser laser product image
