635nm/638nm 250mW~600mW Fiber coupled laser with power supply

Starting at: $795.00

Please Choose:











Add to Cart:


635nm/638nm 250mW~600mWFiber coupled laser with power supply

[Specifications]
Product Name: 635nm/638nm 250mW~600mW Fiber coupled laser
Lead Time: 7 ~15 workingdays! Custom product available!
Output Wavelength: 635nm/638nm ±5 nm
Output Power: 250mW / 500mW / 600mW (choose)
Operating Mode: CW or Modulation
Power Stability: <±3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <2 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 100μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture: 0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 100(L)*40(W)*50(H)mm3 (fan adds height) (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

[Package include]
1 x 635nm Fiber coupled  Laser
1 x Laser power supply

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

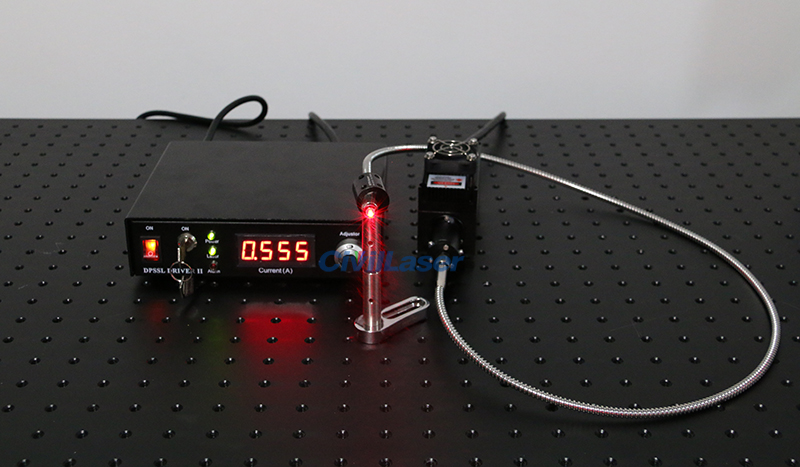

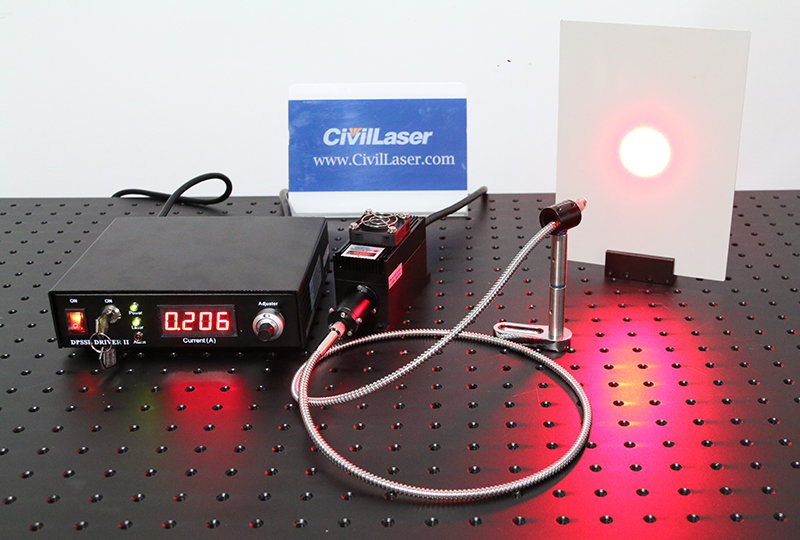

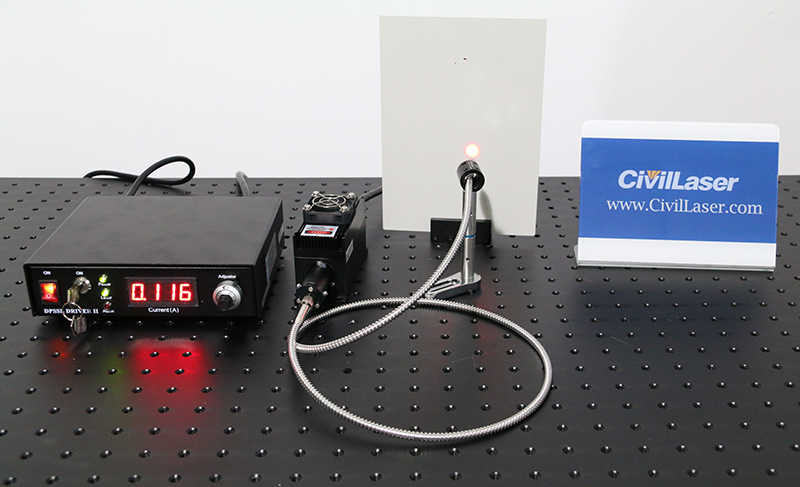

CivilLaser laser product image

Output power adjustable:



635nm fiber coupled laser

635nm fiber coupled laser

fiber coupled laser semiconductor laser diode

fiber coupled laser semiconductor laser diode

fiber coupled laser semiconductor laser diode

civillaser power supply
