1615nm 200mW Fiber Coupled Laser IR Laser Source with Power Supply

Starting at: $2,378.00

Please Choose:









Add to Cart:


1615nm 200mW Fiber Coupled Laser IR Laser Source with Power Supply

[Specifications]
Product Name: IR Fiber coupled Laser
Lead Time: 1~3 weeks, Custom product available!
Output Wavelength: 1615±10nm
Output Power: 200mW
Operating mode: CW or Modulation
Power stability: <±3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Fiber type: Multi-mode fiber/MM fiber
Fiber core diameter: 100μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture:0.22NA(100um~400um)/0.37NA(600um~1000um)
Fiber interface(output): FC/PC, FC/APC, SMA905 (Choose)
Fiber length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 100(L)x40(W)x50(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
MTTF(mean time to failure): 10,000 hrs
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

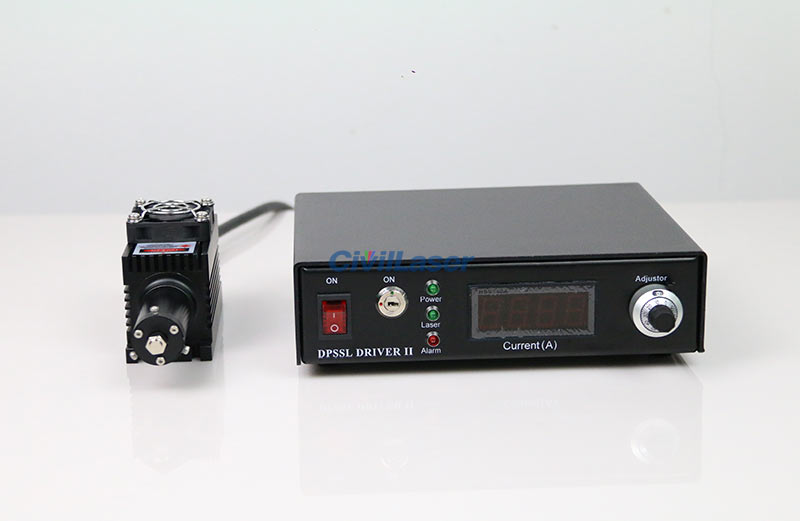

CivilLaser laser product image
