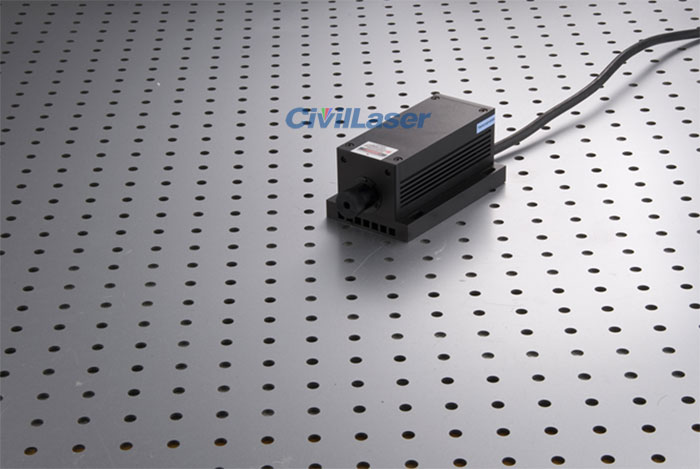

1650nm 3W Semiconductor Laser High Power IR Laser Source

Starting at: $2,271.00

Please Choose:



Add to Cart:


1650nm 3W Semiconductor Laser High Power IR Laser Source

[Specifications]
Product Name: 1650nm IR Semiconductor Laser
Output Wavelength: 1650±10nm
Output Power: 3000mW
Spatial Mode: Multi-mode
Operation Mode: CW or Modulation
Pointing Stability: <0.05 mrad
Beam Diameter: near 6mm
Beam Divergence Full Angle: near 2.5 mrad
Beam Height:  near 29mm
Power Stability: <±3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam Quality(M2): <2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Modulation: 0~30khz Analog or TTL

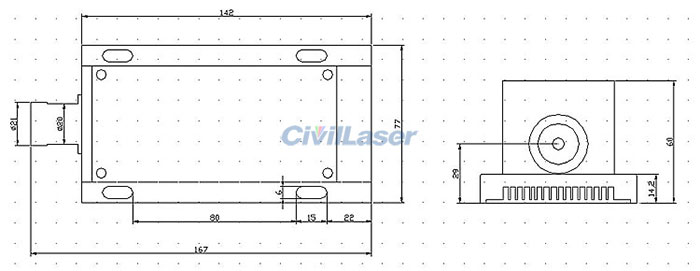

Laser Head dimension: Near 155(L)*77(W)*60(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Warranty: 1 Year

[Package Include]
1 x 1650nm semiconductor laser
1 x Power supply
