SM Red Laser 635nm 150mW Single Mode Fiber Coupled Laser

Starting at: $1,623.00

Please Choose:





Add to Cart:


SM Red Laser 635nm 150mW Single Mode Fiber Coupled Laser


Note(November 27th, 2019):
This SM fiber coupled 635nm laser, the output power is 45mw~55mW @ fiber output side. if you need more than 50mw, we recommend below SM fiber coupled laser.
https://www.civillaser.com/index.php?main_page=product_info&products_id=1252
-- Output power @ fiber: Near 80mw


[Specifications]
Product Name: 635nm Fiber Coupled Laser
Lead Time: 1~3 weeks! Custom product available!
Output Wavelength: 635±5nm
Output Power: 150mW (at Laser head)
Spatial Mode: TEM00
Operating Mode: CW or Modulation
Power Stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <2 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Single-mode fiber/SM fiber
Fiber Interface(Output): FC/PC, FC/APC, SMA905(choose)
Fiber Length: 1m (Default)
Laser Head Dimension: Near 155(L)x77(W)x60(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

[Package include]
1 x 635nm Fiber coupled laser
1 x Single mode optical fiber
1 x Laser power supply

Note:
The marked output power is before coupling, coupling efficiency is about 40%.

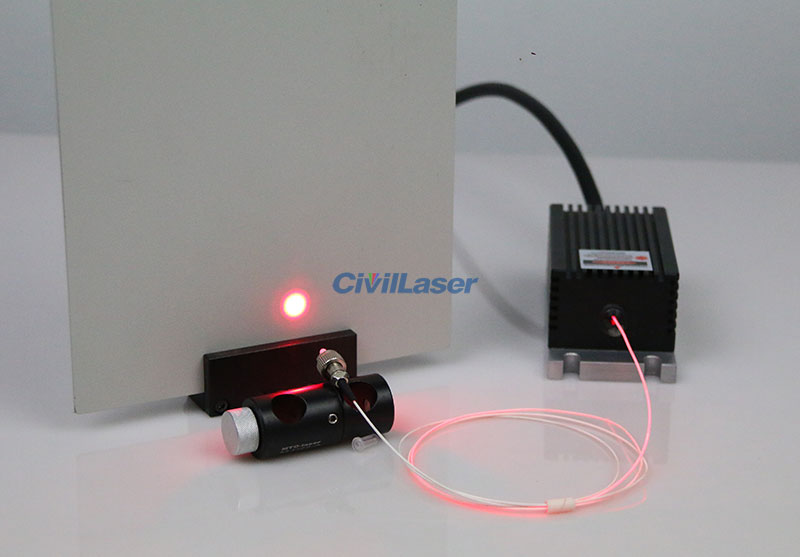

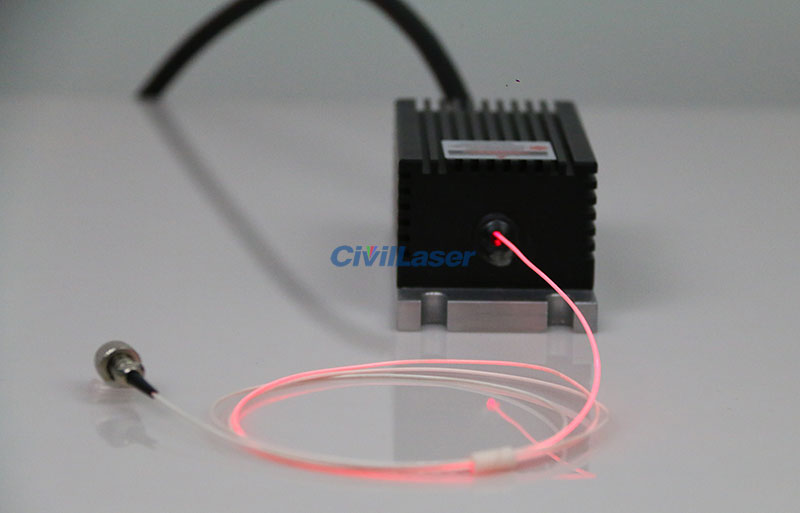

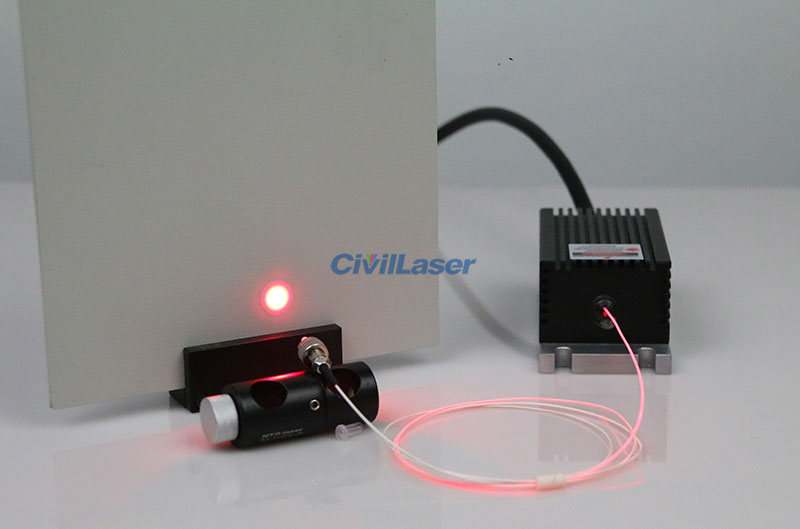

CivilLaser laser product image


SM fiber coupled laser

SM fiber coupled laser

SM fiber coupled laser

635nm single mode fiber coupled laser
