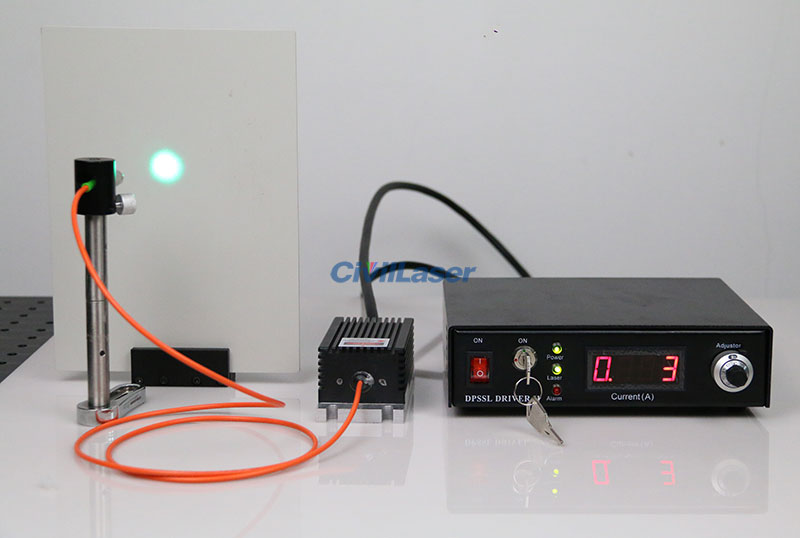

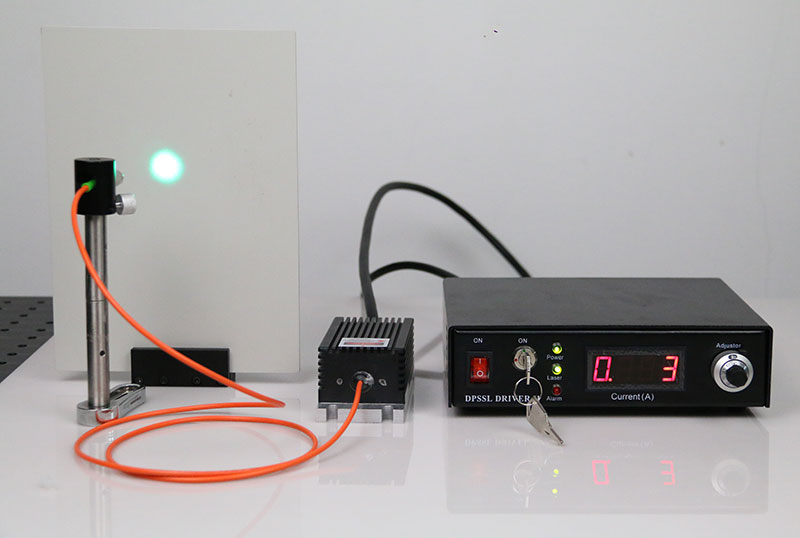

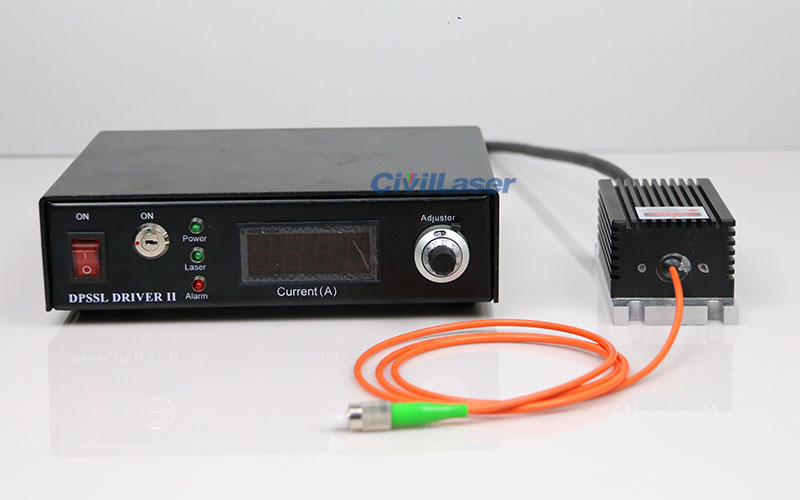

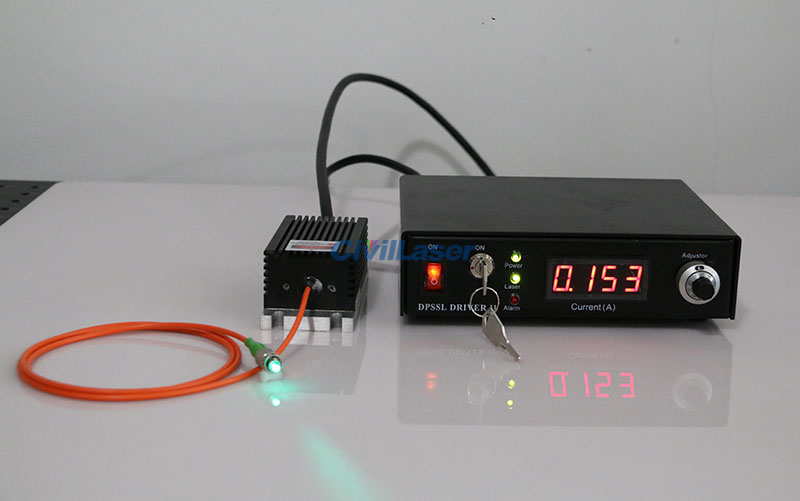

505nm 20mW Single Mode Fiber Coupled Laser Green Laser Beam With Power Supply

505nm 20mW Single Mode Fiber Coupled Laser Green Laser Beam With Power Supply

[Specifications]
Product Name: 505nm Fiber Coupled Laser
Lead Time: 1~3 weeks
Output Wavelength: 505±5nm
Output Power: 50mW (at Laser head)
Fiber Output Power: 20mW (~40% Coupling efficiency)
Spatial Mode: TEM00
Operating Mode: CW or Modulation
Power Stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minute
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Single-mode fiber/SM fiber
Fiber Interface(Output): FC/PC, FC/APC, SMA905(choose)
Fiber Length: 1m (Default)
Laser Head Dimension: Near 155(L)x77(W)x60(H)mm3 (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

[Package include]
1 x 505nm Fiber coupled laser
1 x Single mode optical fiber
1 x Laser power supply

Note:
The marked output power is before coupling, coupling efficiency is about 40%.
