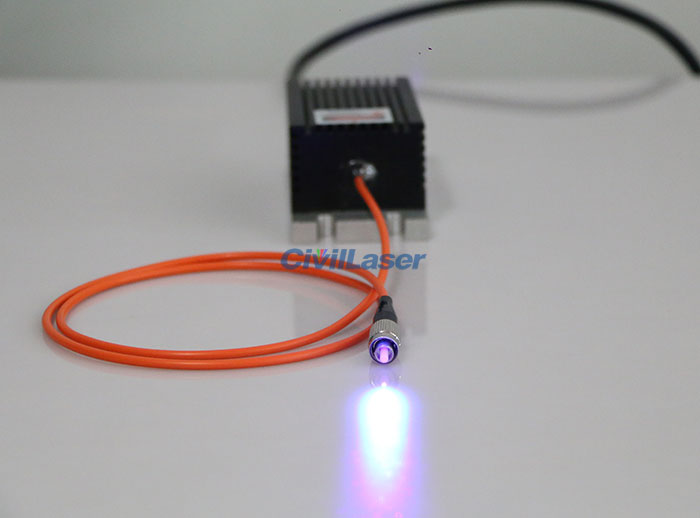

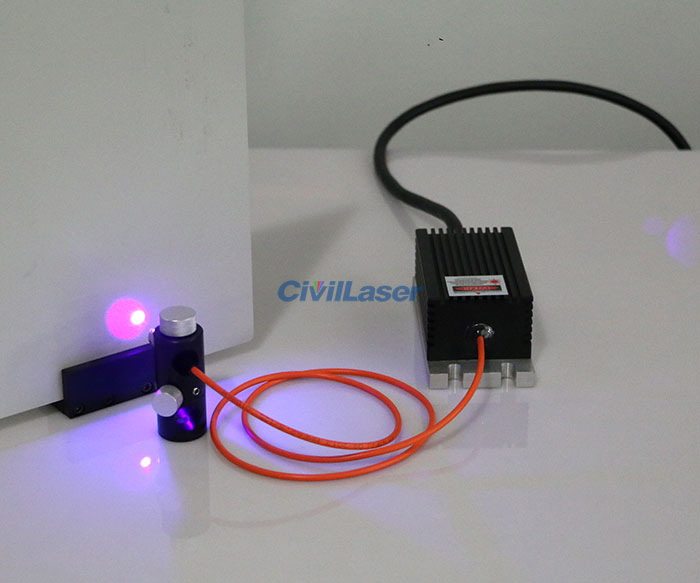

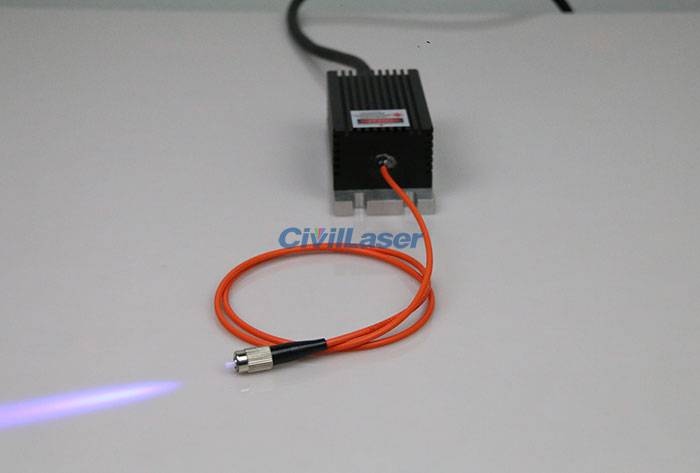

405nm 250mW Blue-Violet Laser Single Mode Fiber Coupled Laser With Power Supply

405nm 250mW Blue-Violet Laser Single Mode Fiber Coupled Laser With Power Supply

[Specifications]
Product Name: 405nm Fiber Coupled Laser
Lead Time: 1~3 weeks
Output Wavelength: 405(+/-5) nm
Output Power: 250mW (at Laser head)
Spatial Mode: TEM00
Operating Mode: CW or Modulation
Power Stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minute
MTTF(mean time to failure): 10,000 hrs
Fiber type: Single-mode fiber/SM fiber
Fiber interface(output): FC/PC, FC/APC, SMA905(choose)
Fiber length: 1m (Default)
Laser Head dimension: Near 155(L)x77(W)x60(H)mm (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30KHz Analog or TTL
Warranty: 1 Year

Note:
The marked output power is before coupling, coupling efficiency is about 40%.

[Package include]
1 x 405nm Fiber coupled laser
1 x Single mode optical fiber
1 x Laser power supply
