532nm 15mW Green Laser Singlemode Fiber Output

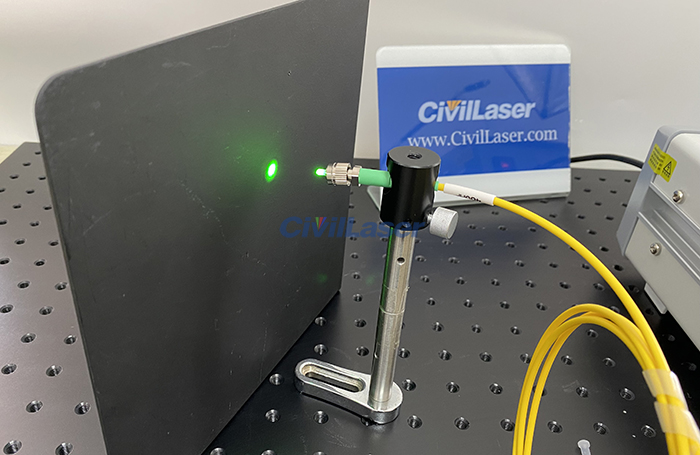

This is a 532nm 15mW single mode fiber laser source desktop type. The LCD screen displays the current output power. It can be adjusted by the button. The adjustment range is 10%~100%, and the adjustment accuracy is 0.1mW. The back of the laser has an RS232 interface. It can be customized for software control functions. The key controls the ON/OFF of the laser. Here is SM fiber, and PM fiber can also be customized. Let’s check it now.

This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).

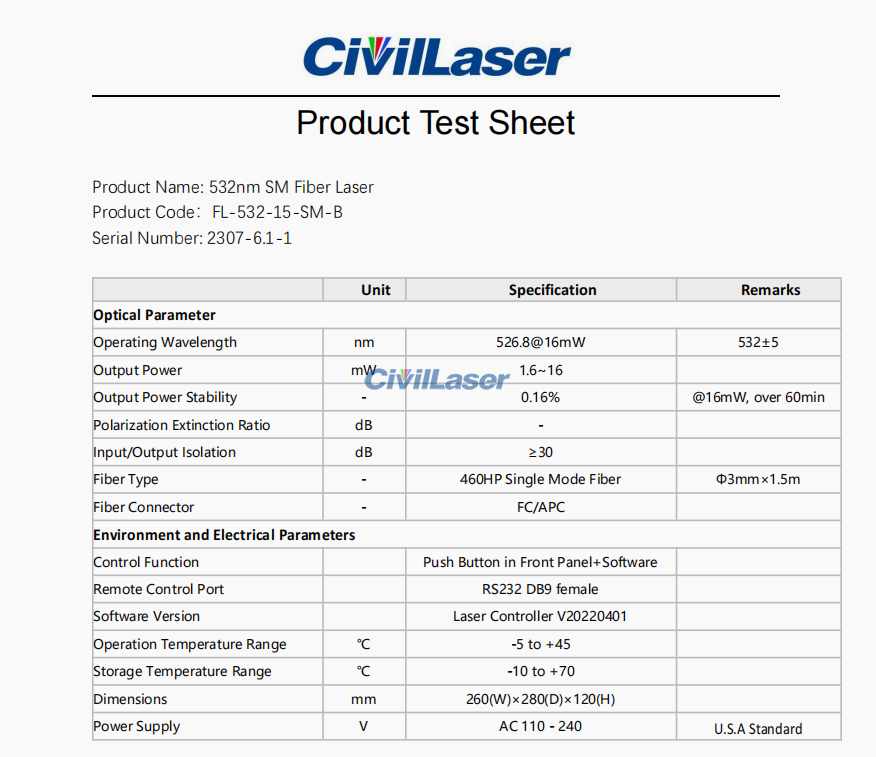

Test data report of 532nm single mode fiber laser.

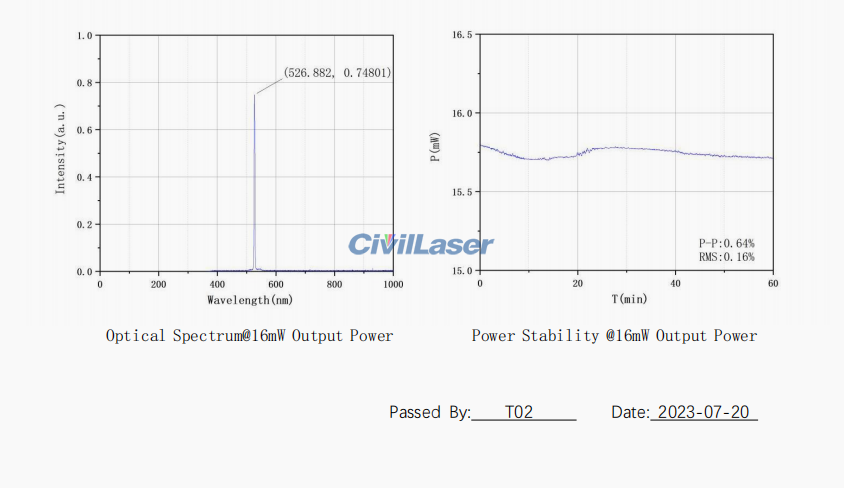

Laser spectrum graph and power stability test report.
