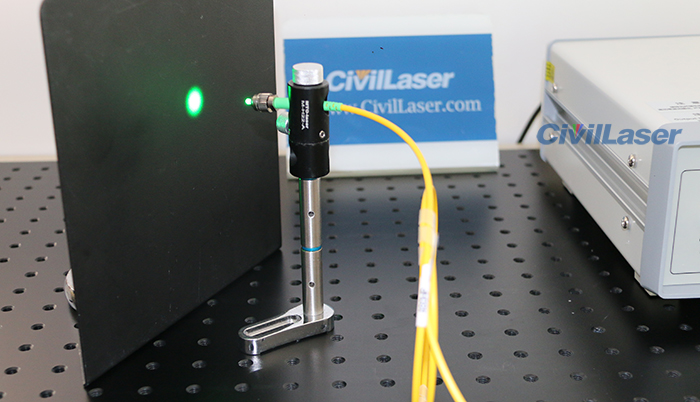

This is a 528nm green fiber laser system. It adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).
It is configured with single-mode fiber. The screen can display the current power, and the power can be adjusted through the buttons. 10%~100% output power can be adjusted. The power regulation accuracy is 0.1mW. The highest power of this unit is 10mW, other output power can be customized. Here is SM fiber output, PM fiber output can be customized. Let’s check it now.

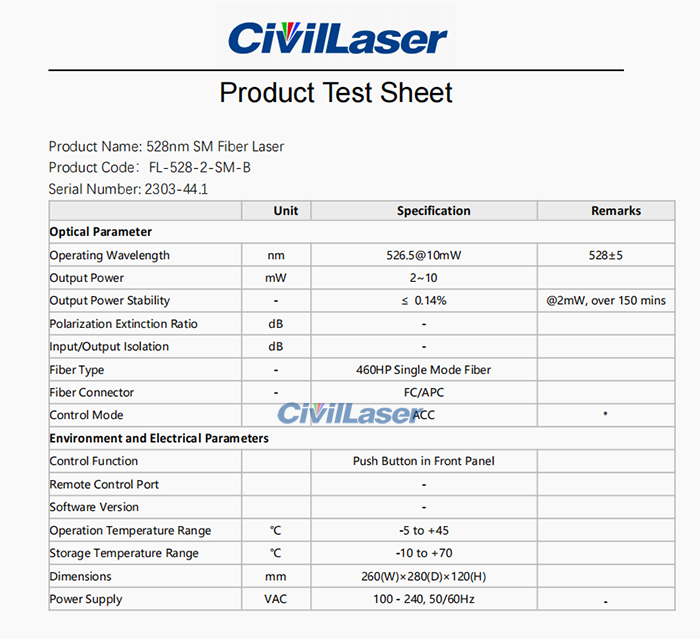

The test data sheet of 528nm 10mW SM fiber laser source.

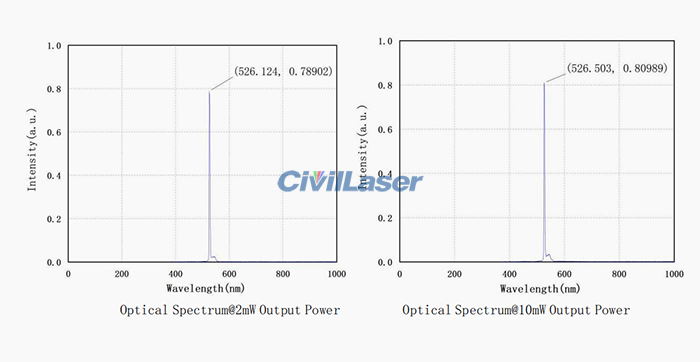

Spectral graphs at different powers.

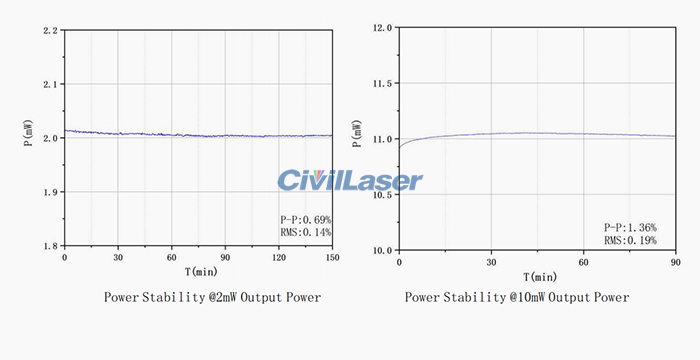

Power stability at different power levels. It can be customized to achieve the most stable state under the specified power.
