520nm 2~20mW Adjustable Laser SM Fiber Laser Output

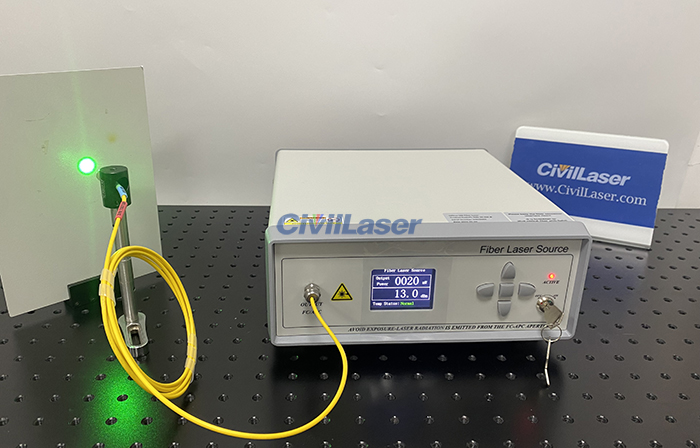

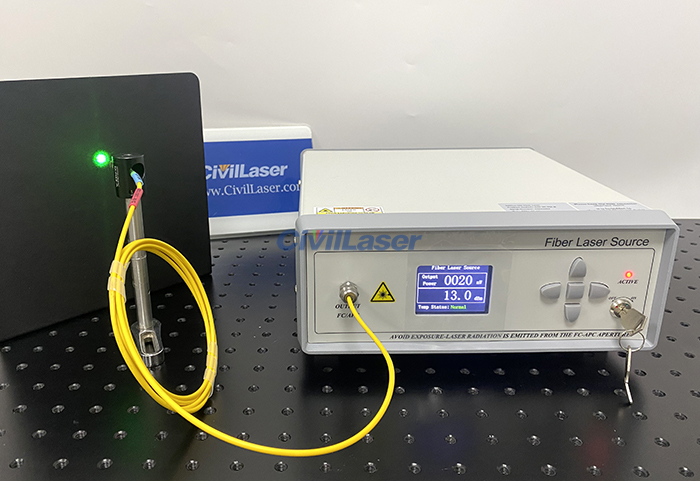

This is a 520nm single-mode fiber laser benchtop. The default fiber interface is FC/APC, and PM fiber output can also be customized. It supports button control and software control of laser. The working voltage is AC 100~240V wide range voltage. The laser output power is adjustable, the adjustment accuracy is 1mW, and the adjustment range is 10~100%.

This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).

The test data of this fiber laser.

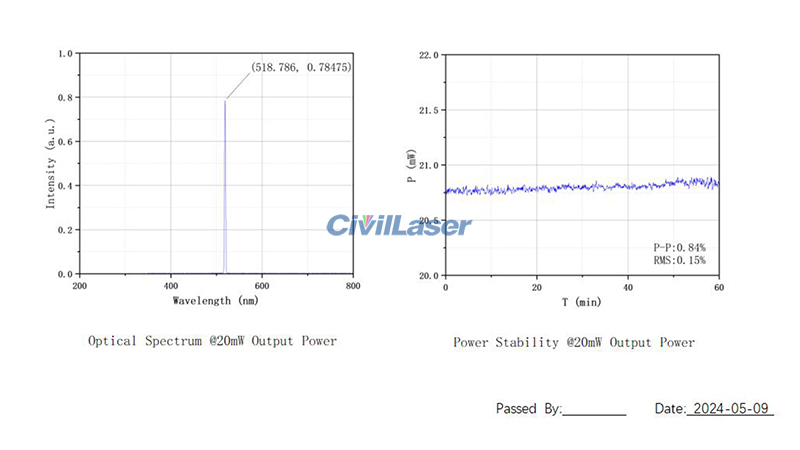

Spectrum chart and power stability test chart of 520nm laser.
