488nm Blue Laser Source SM Fiber Output

It’s the 488nm single mode fiber laser module. This is a modular structure, and the desktop model can also be customized. The laser output power can be adjusted, and the adjustment range is 10% ~ 100%. The laser can be controlled by software, connected to the computer via RS232-USB.

The fiber here is single-mode, and polarization-maintaining fiber can also be customized.

This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).

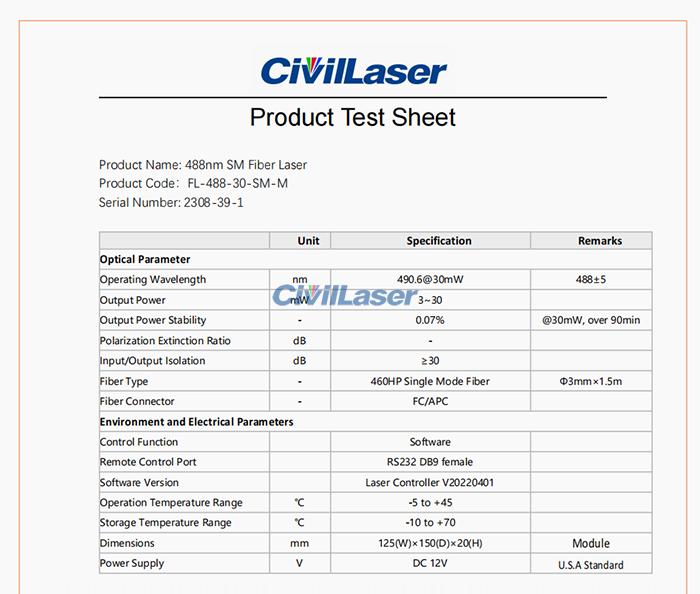

Datasheet of actual measurements of the laser.

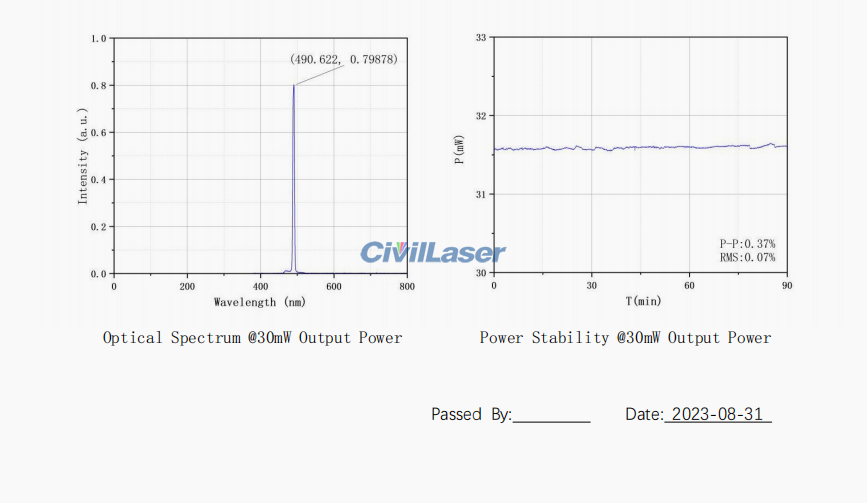

The spectrum diagram and power stability test diagram of the laser.
