1064nm 10000mW Powerful IR Laser Coupled SM Fiber Output

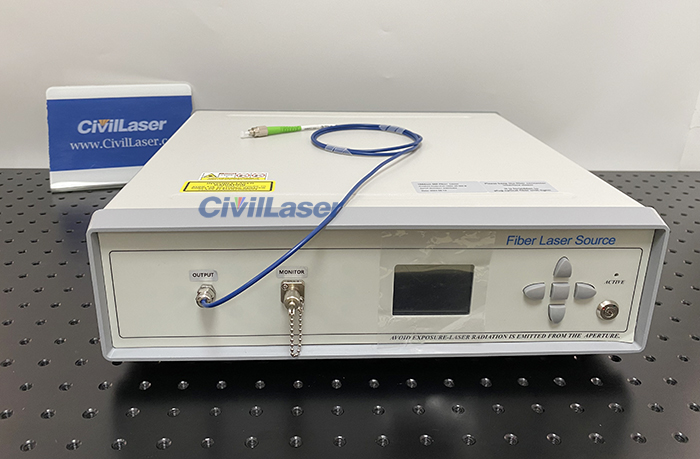

This is a 1064nm 10W single-mode fiber laser. There are 2 fiber output interfaces. The ‘OUTPUT’ on the left is the actual laser output. The ‘MONITOR’ on the right is the synchronization signal output. The laser power of the synchronization signal output port is very low and is only used by customers in need.

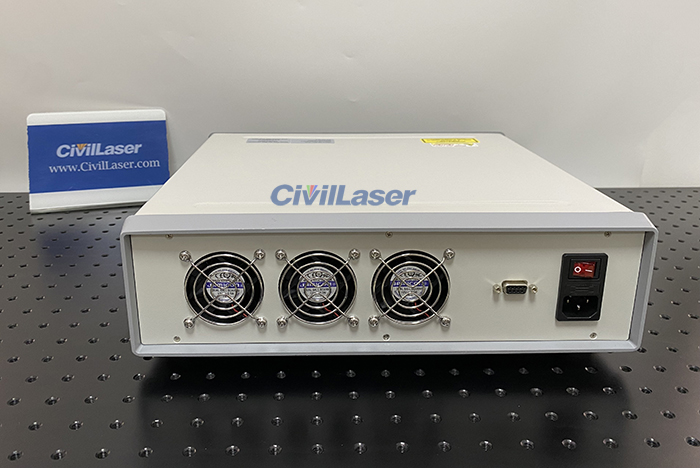

The laser has a cooling fan. The RS232 interface here is used to connect to a computer. The current power can be displayed on the screen. The laser output power can be adjusted by buttons.

Use the buttons to adjust the laser output power. The left and right arrow buttons select the digit, and the up and down arrow buttons adjust the value. The middle square button is the confirmation button.

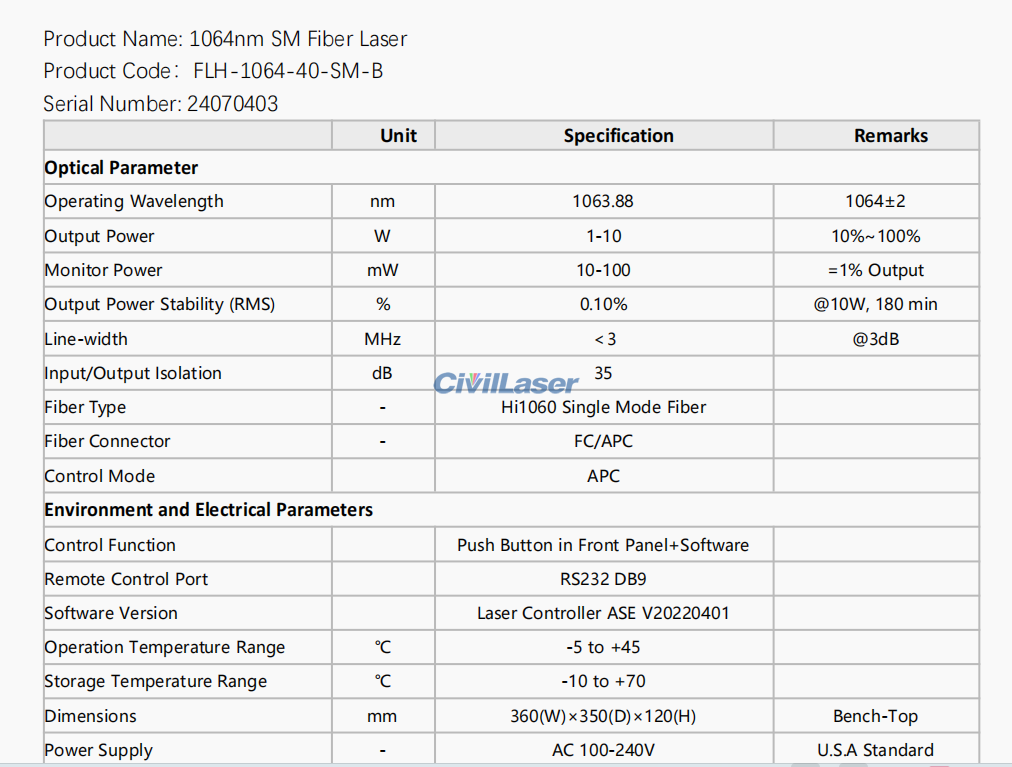

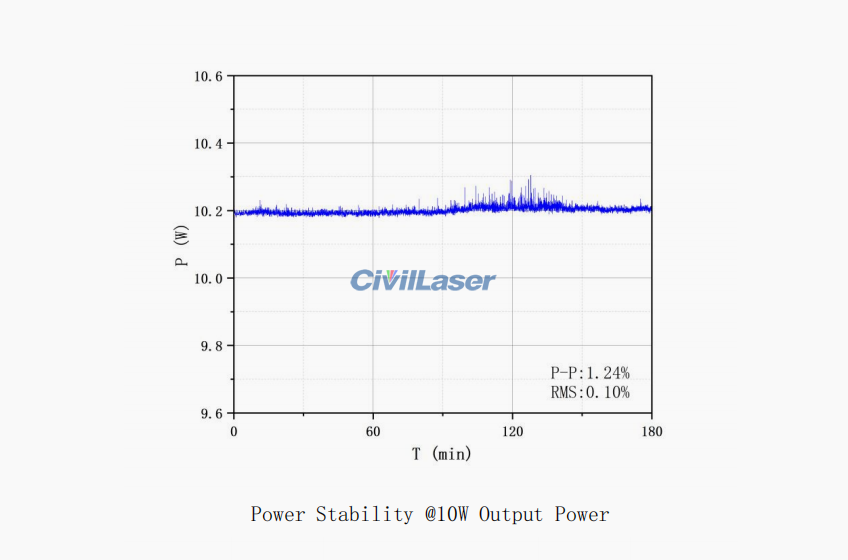

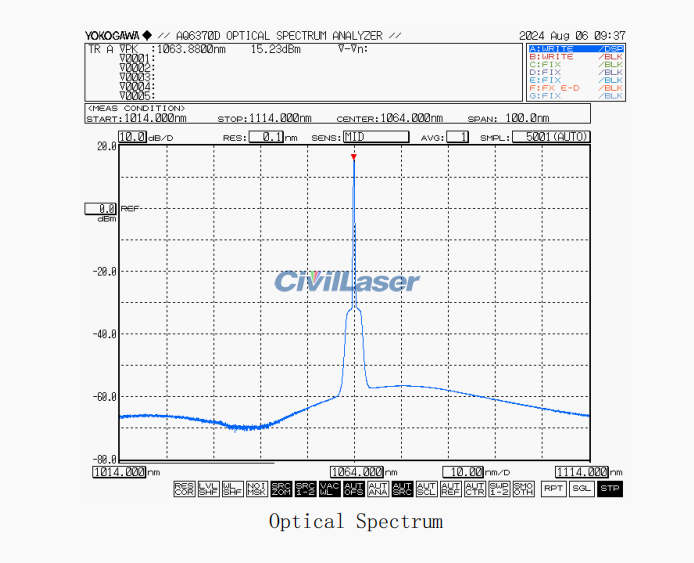

The parameter table, Spectral diagram and power stability test of this 1064nm laser.
