976nm 8W 1210nm 2.4W 1310nm 2.4W 1550nm 3.2W 1710nm 2.1W 5IN1 18.1W Fiber Coupled Laser System For Lab Scientific Research

976nm 8W 1210nm 2.4W 1310nm 2.4W 1550nm 3.2W 1710nm 2.1W 5IN1 18.1W Fiber Coupled Laser System For Lab Scientific Research

[Specification]
Product Name: 5IN1 Fiber coupled laser
Lead Time: 3~5 weeks
Wavelength: 976nm 1210nm 1310nm 1550nm 1710nm
Output power @Laser Head: 976-10W, 1210-3W, 1310-3W, 1550-4W, 1710-3W
Output Power @Fiber: 976-8W, 1210-2.4W, 1310-2.4W, 1550-3.2W, 1710-2.1W
Operation Mode: CW or Modulation
Power Stability: <3% per 4 hrs
Warm Up Time: <5 minute
MTTF: 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture: 0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)

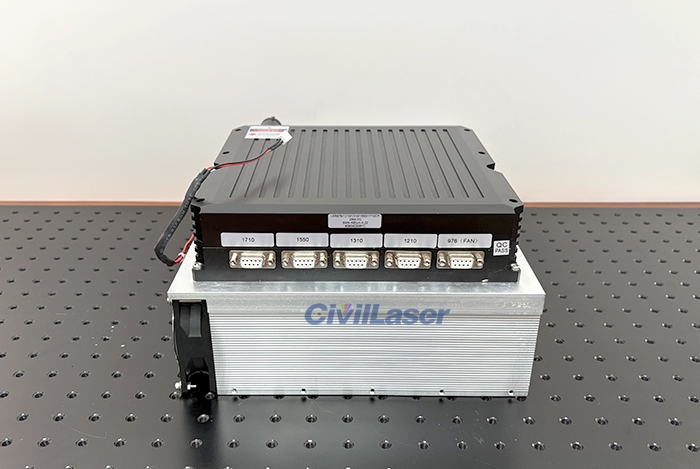

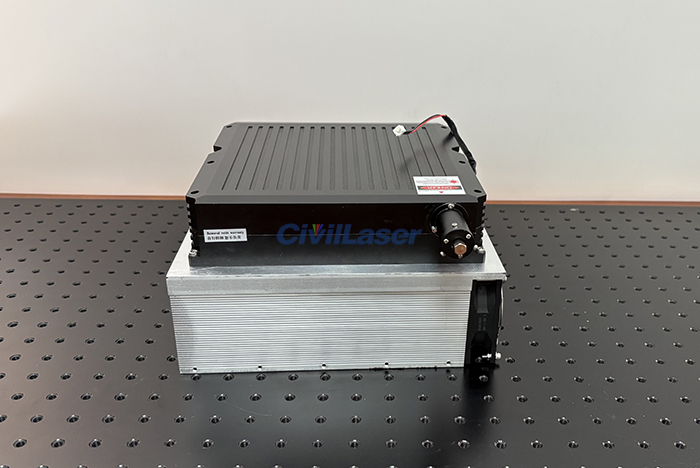

Laser Head Dimension: Near 211(L)x151(W)x50.5(H)mm3 (Click here find detail)

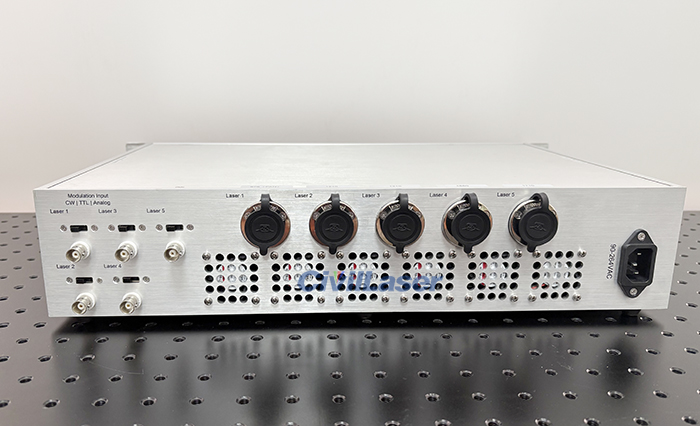

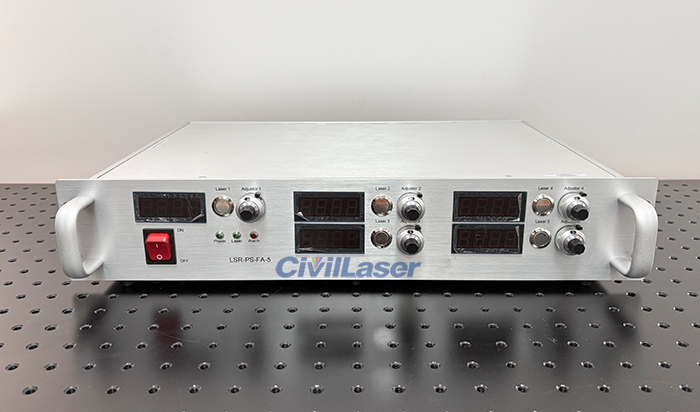

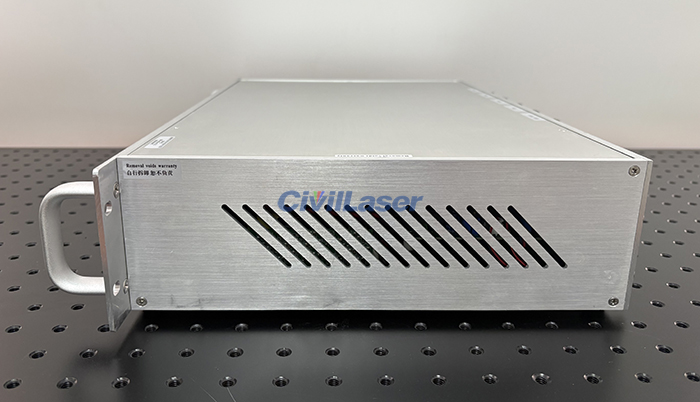

Power Supply: Lab Adjustable Power Supply (Click here find detail)

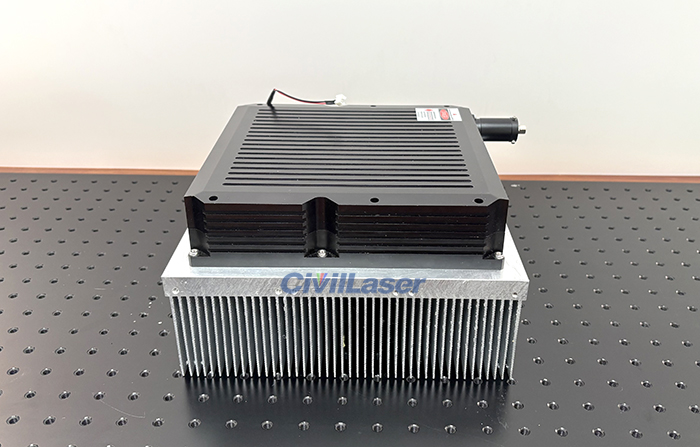

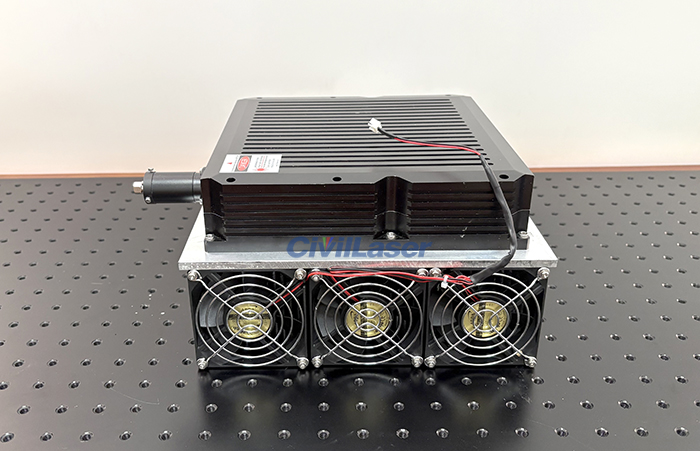

Laser Radiator/Heat Sink: Not include /  Include (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

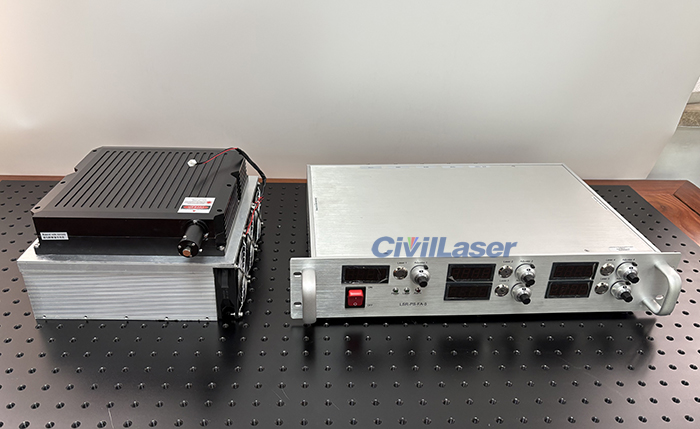

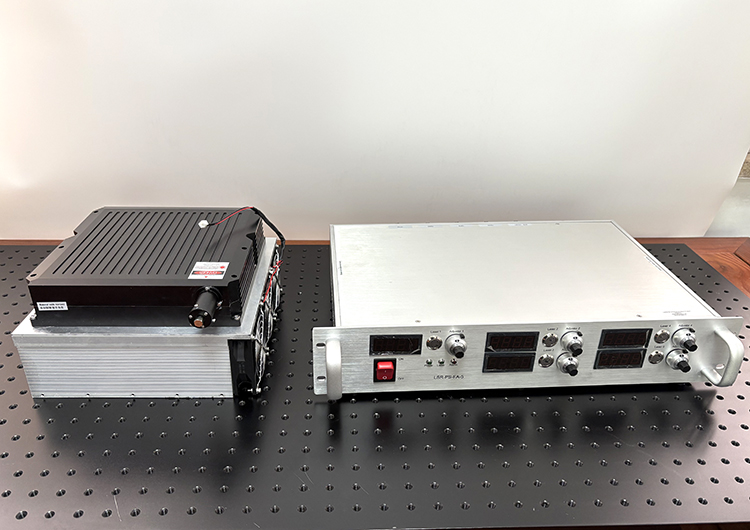

[Package Include]

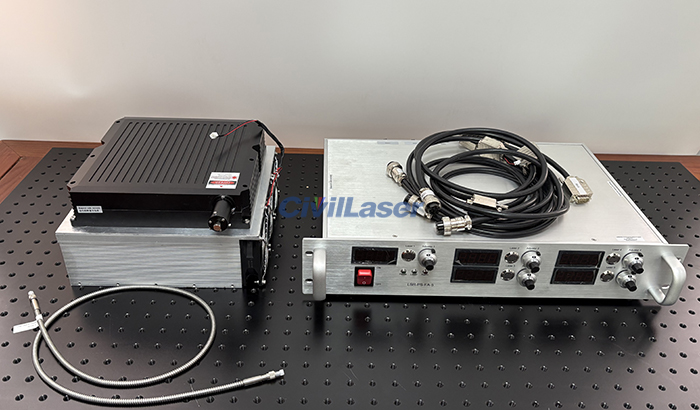

1 x Laser head
1 x Power supply
1 x Optical fiber

Note:
1. The picture is for reference only, different outpower laser product, with different product size.
    If customer is concerned about the product size, please contact us before purchasing.

2. The coupling efficiency of 976nm/1210nm/1310nm/1550nm laser is around 80%.  The 1710nm laser coupling efficiency is around 70%.
