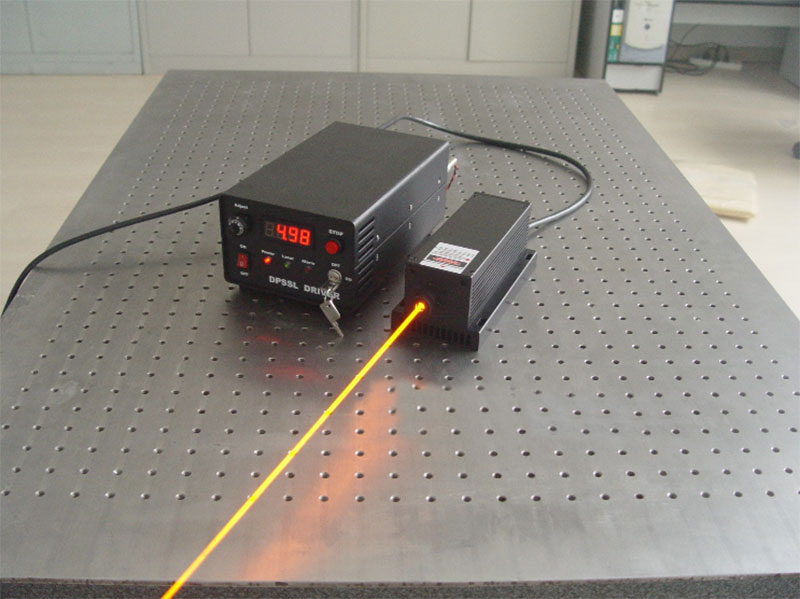

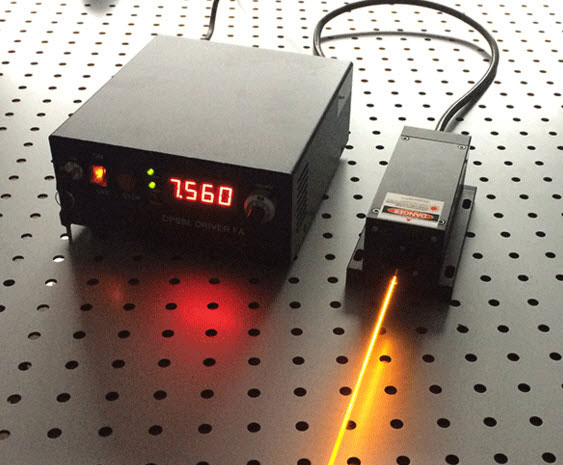

589nm 3W Solid-state laser Yellow dpss laser

$12,880.00

Add to Cart:


589nm 3W Solid-state laser  Yellow dpss laser

589nm yellow laser in biomedicine, space target detection and recognition, laser show, chemistry and other fields have broad application prospects.

589nm yellow laser as a new light source, spectroscopy, laser positioning and navigation, astronomy, and other fields have also have important applications significance;

SPECIFICATIONS:
Name: 589nm  Solid-state laser Yellow dpss laser
Output Wavelength: 589±1nm
Output Power: 1mW~3000mW
Spatial mode: TEMoo
Operating mode: TTL/CW/SIM
M2:  ≤1.5
Beam Divergence: <2.0 mrad
Beam diameter (1/e2): ≤2.5mm
Spectral line width: 0.1nm
Polarization ratio: ≥100:1
Power Stability: <±3% (rms@4h)
Warm-up time: ≤10(min)
Beam stability: ≤0.05(mrad)
Operating Temperature: 10℃~40℃
Working life: About 10,000 hours
TTL modulation: 0~20K
Analog modulation: 0~20K/5VDC
Beam Height: 30mm
Heat dissipation method: TECFANS
Laser Head Size: 140mm(L)*77mm(W)*60mm(H)
Laser Head Weight: 0.8kg
Laser Power Supply Weight: 1.8kg
Laser Power Supply Weight: 238mm(L)*155mm(W)*90mm(H)
Operating Voltage: 85~265VAC
Warranty: 1 Year

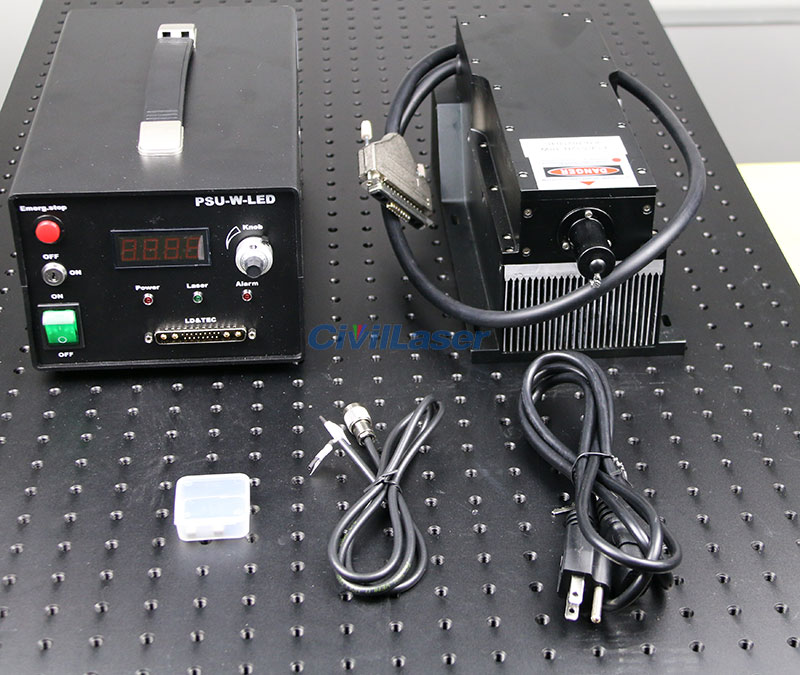

[Package includes]
1 x 589nm Yellow dpss laser
1 x Power supply

Note:
This size is for reference only. The size of the latest model may changed.
If there is any requirement for size, please contact us get latest size.
