1064nm 4000mW High Power DPSS Laser IR Laser Source

1064nm 4000mW High Power DPSS Laser IR Laser Source

[Specifications]
Product Name: 1064nm DPSS Laser
Lead Time: 1~3 weeks.
Output Wavelength: 1064 nm±1nm
Output Power: 4000mW
Operate Mode: Near TEM00
Operating Mode: CW or Modulation
Polarization: 100:1
Pointing Stability: <0.05 mrad
Bean Height: Near 68.2mm
Beam Size: <3 mm
Beam Divergence Full Angle:  <1.5 mrad
Beam Quality(M²): 2~2.5
Power Stability: <±3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <10 minutes
MTTF(mean time to failure): 10,000 hrs
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
Laser Head Dimension: Near 200(L)x99(W)x94(H)mm³ (Click here find detail)
Power Supply: Split type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Split Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~30khz Analog or TTL
Warranty: 1 Year

[Package Include]

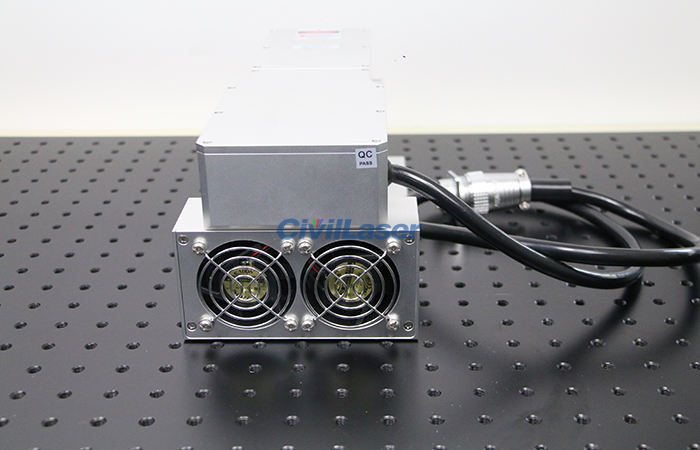

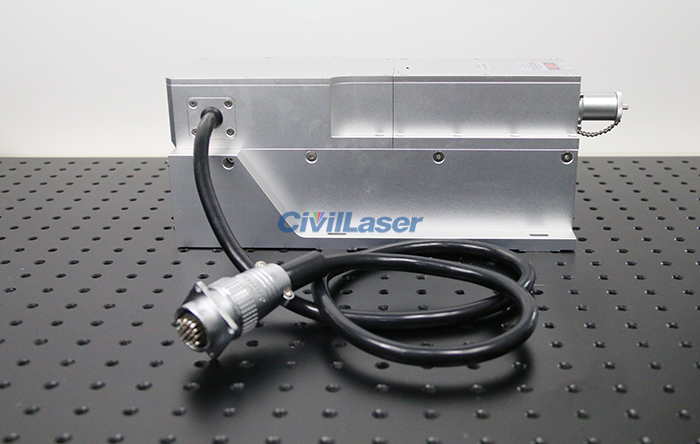

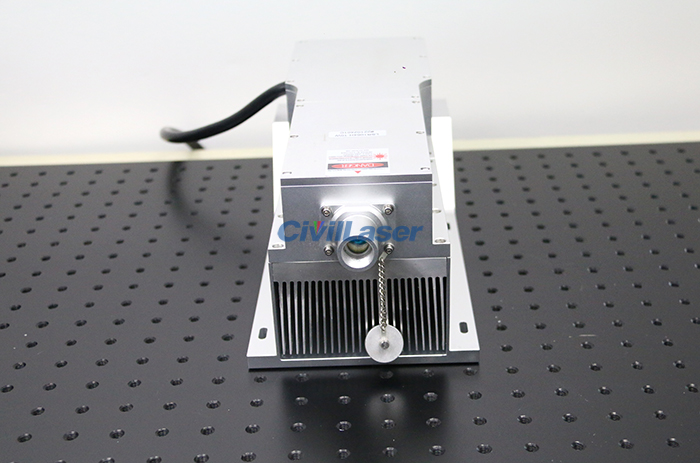

1 x 1064nm Laser head

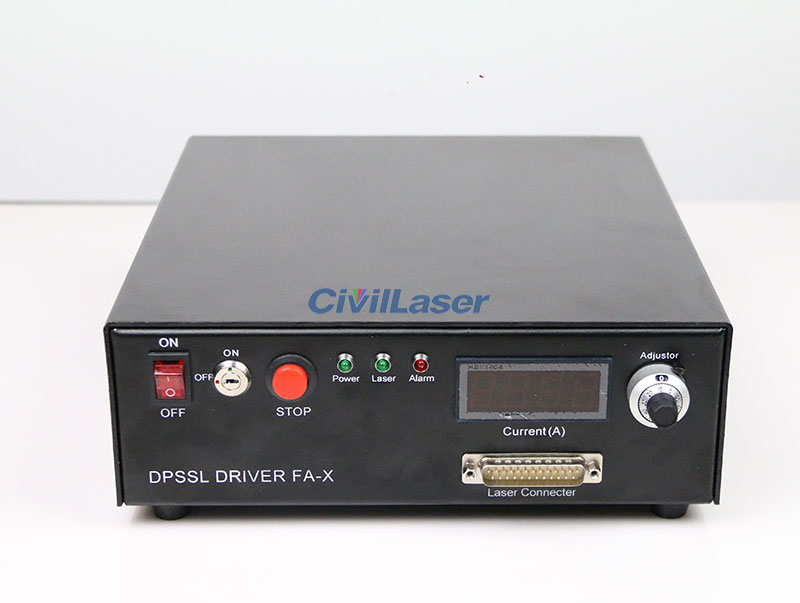

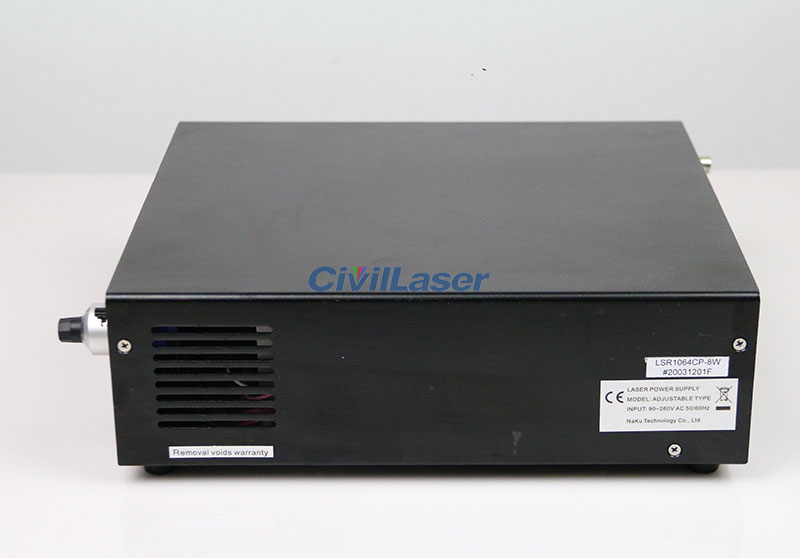

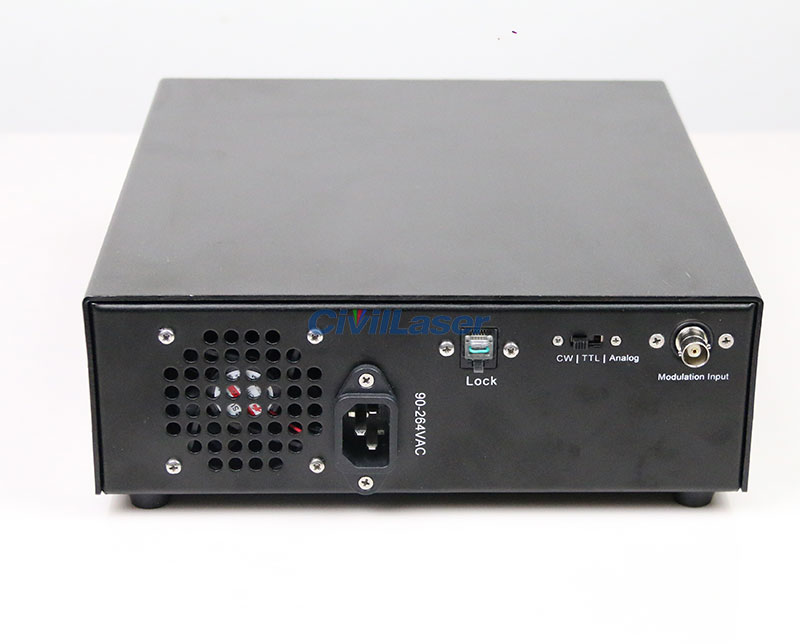

1 x Laser power supply
