532nm 18W Fiber Coupled Laser High Power Green DPSS Laser

  532nm 18W Fiber Coupled Laser High Power Green DPSS Laser

[Specifications]
Product Name: 532nm Fiber coupled laser
Lead Time: 4~5 weeks,  Custom product available!
Output Wavelength: 532±1 nm
Output Power: 18W (Fiber coupling efficiency is about 80 ~ 90%, the actual output power at the fiber end is >14W)
Operating Mode: CW or Modulation
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <10 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 105μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture: 0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 200(L)*99(W)*94(H)mm3 (Click here find detail)
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply-1: Standard Power Supply (Choose) (Click here find detail)
Power Supply-2: Lab Adjustable Power Supply (Choose) (Click here find detail)
Modulation: 0~10kHz modulation, TTL or Analog (Choose)
Warranty: 1 Year

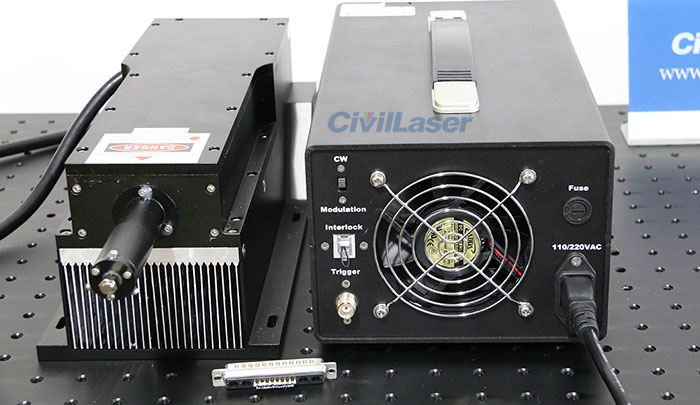

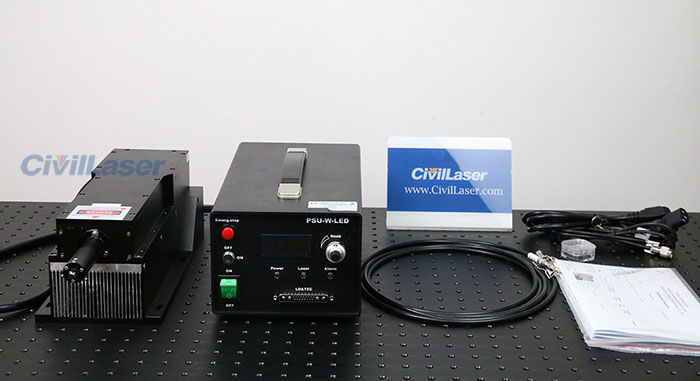

[Package include]
1 x 532nm laser head
1 x Laser power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
