589nm 1W Yellow laser Fiber coupled laser with power supply

Starting at: $9,449.00  $6,899.00
Save: 27% off

Please Choose:







Add to Cart:


589nm 1W Yellow Laser Fiber Coupled Laser with Power Supply

[Specifications]
Product Name: 589nm Yellow Fiber coupled laser
Lead Time: 4~6 weeks! Custom product available!
Output Wavelength: 589±1nm
Output Power: 1W
Operating Mode: CW or Modulation
Power Stability: <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
MTTF(mean time to failure): 10,000 hrs
Fiber Type: Multi-mode fiber/MM fiber
Fiber Core Diameter: 105μm/200μm/400μm/600μm/800μm/1000μm (Choose)
Fiber Numerical Aperture: 0.22NA(100μm~400μm)/0.37NA(600μm~1000μm)
Fiber Interface(Output): FC/PC, FC/APC, SMA905 (Choose)
Fiber Length: 1m/2m/3m (Choose)
Laser Head Dimension: Near 200(L)*99(W)*94(H)mm3 (Click here find detail)
Power Supply: Lab Adjustable Power Supply (Click here find detail)
Modulation: 0~30kHz Analog or TTL
Warranty: 1 Year

[Package Include]
1 x 589nm laser head
​1 x Laser power supply
1 x Optical fiber

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

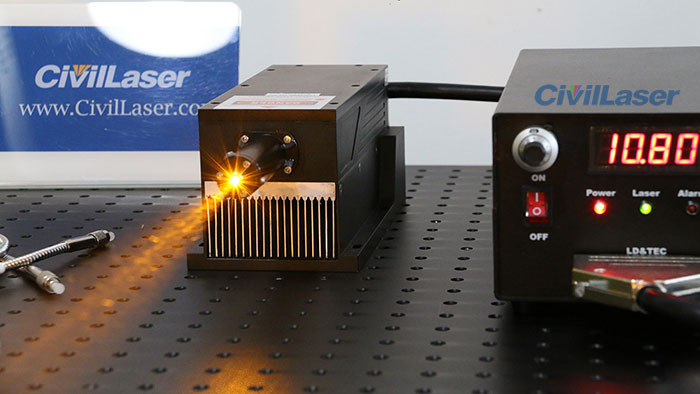

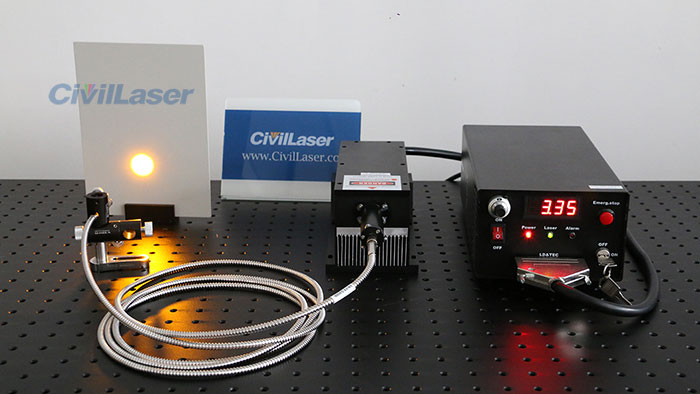

CivilLaser laser product image
