532nm 5W DPSS Laser System MGL-V-532A-5W

What our laboratory brings today is a new 2024 532nm 5W DPSS laser. The new laser has better heat dissipation and better stability than the 2023 model. It supports both CW and modulation working modes. The laser needs to be preheated for about 20 seconds before laser output can be generated. Adjust the laser output power to the maximum. Let’s check it now.

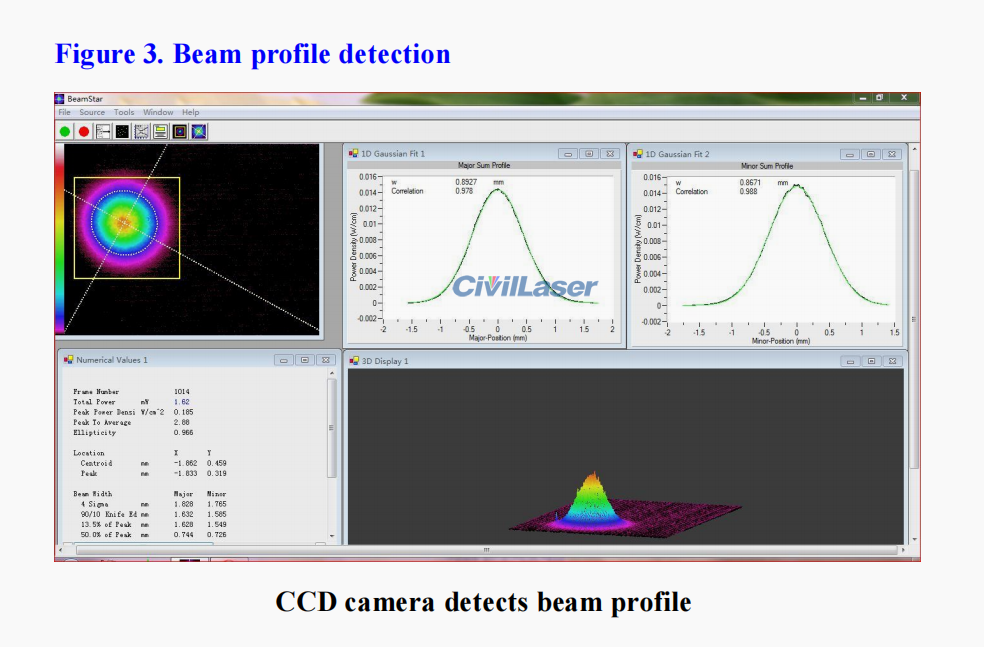

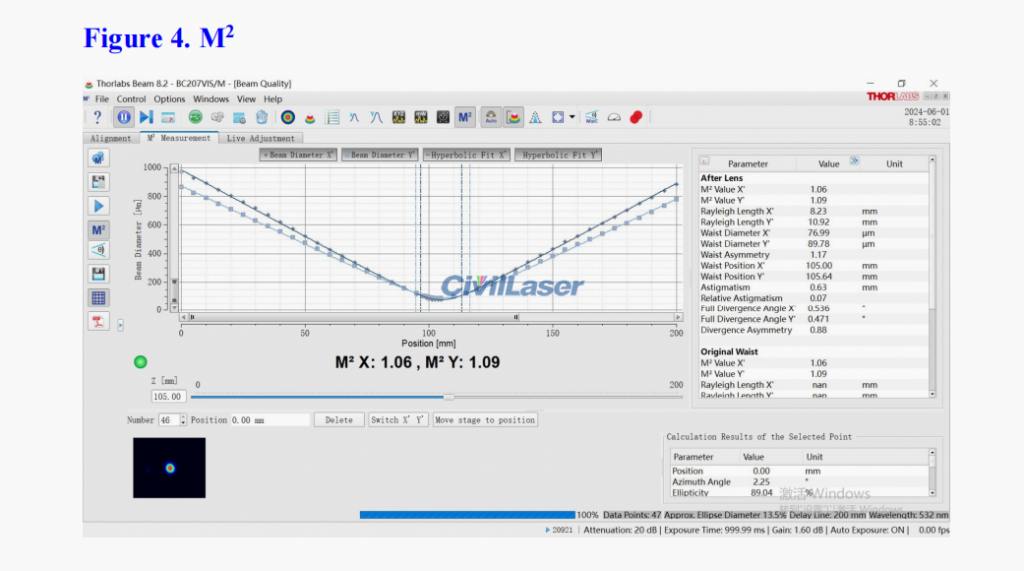

It is TEM00 spot, and the beam quality is very good. The beam quality test data is around 1.06, which is Near-Perfect Beam Quality.

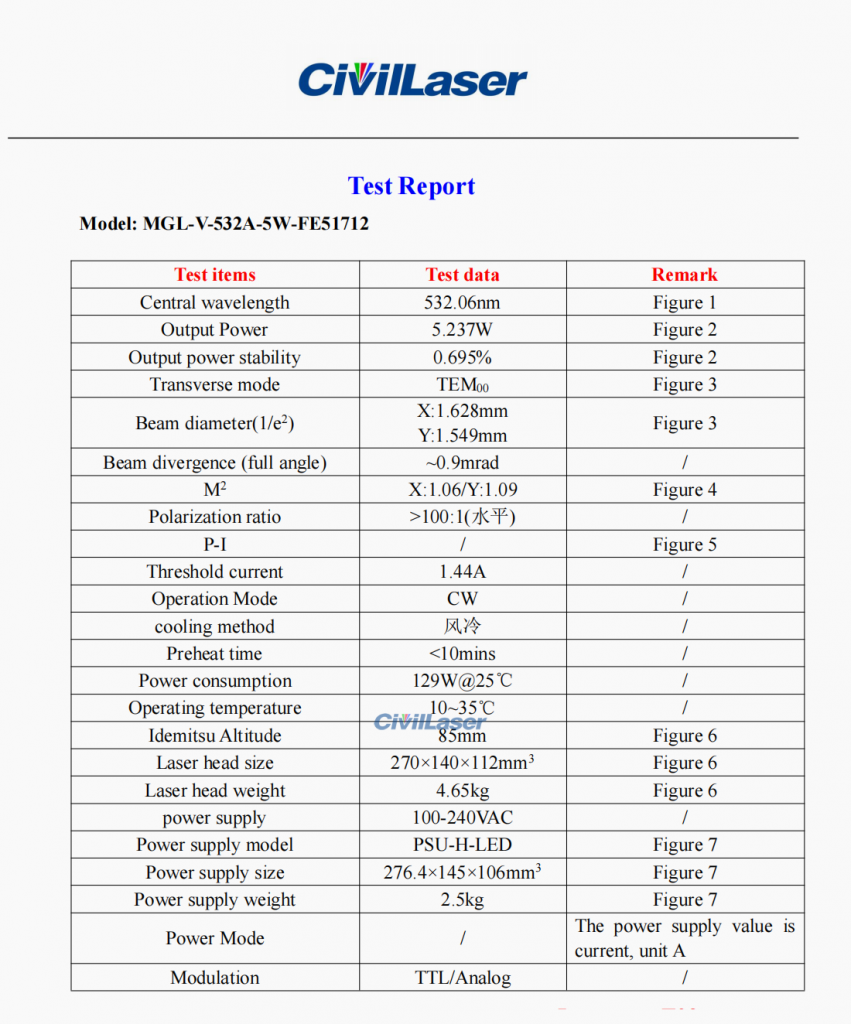

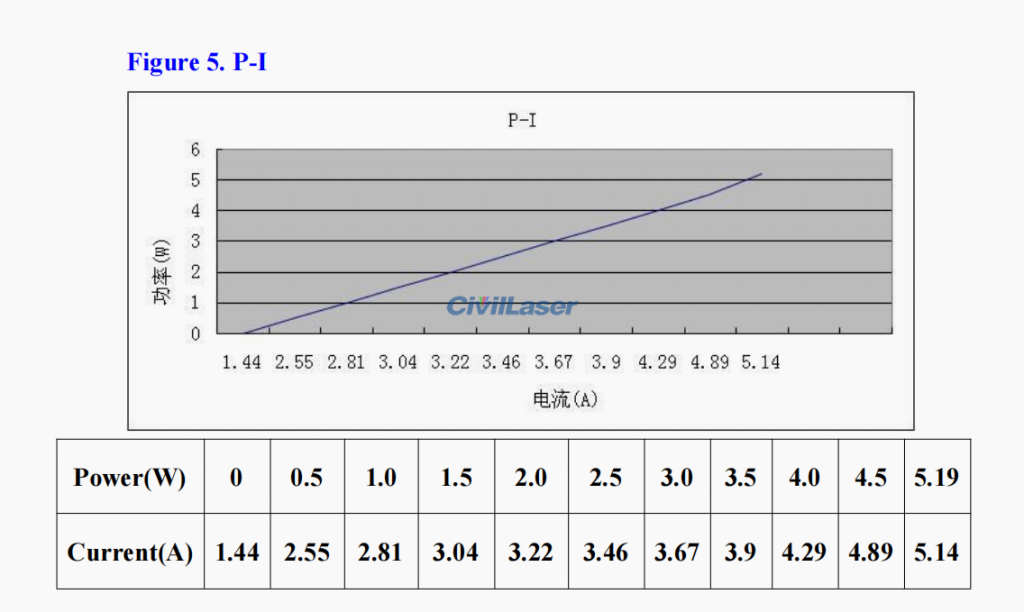

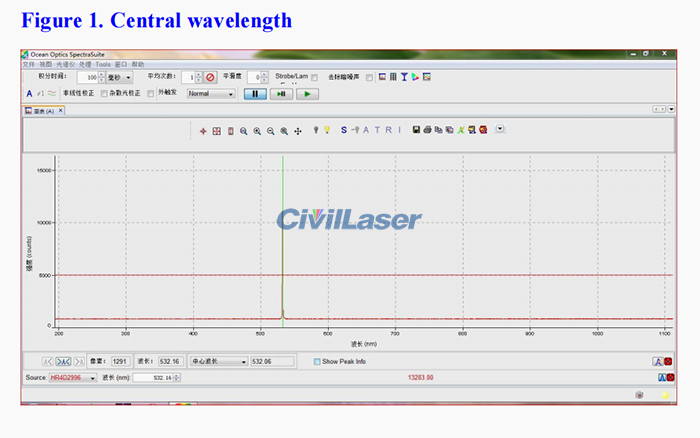

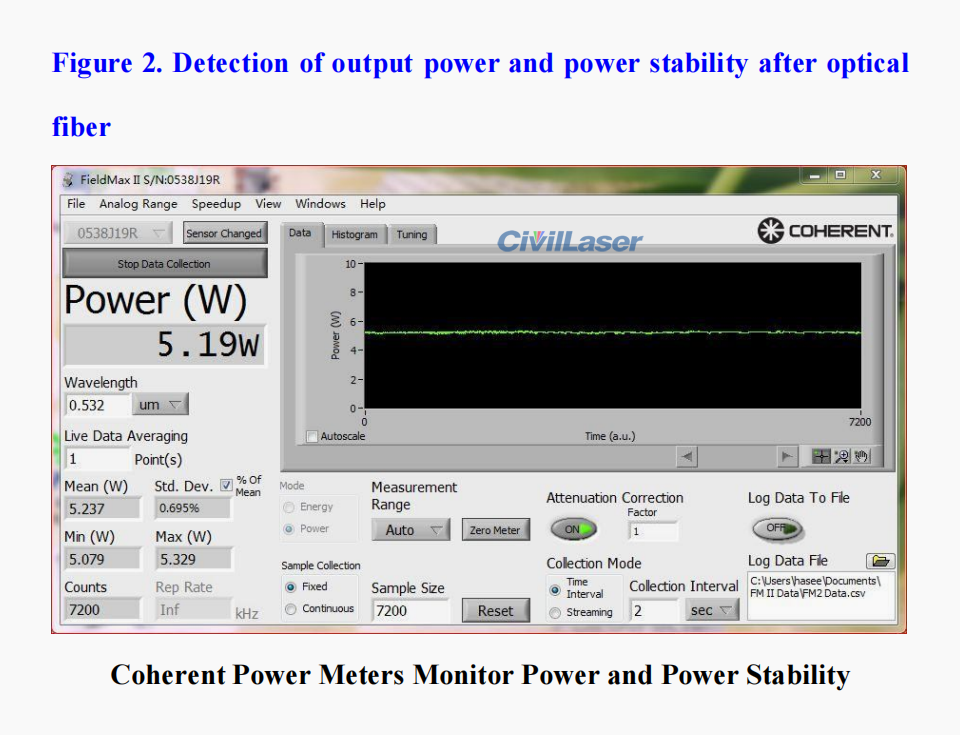

The actual test data of laser.
