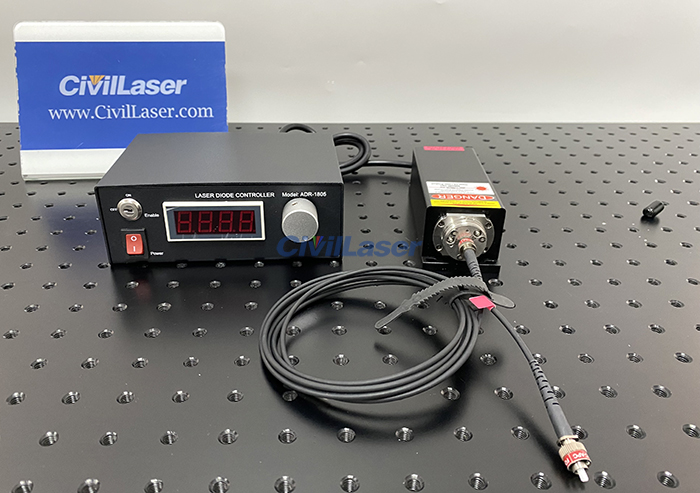

375nm 1~30mW Near Ultra-violet Laser Coupled PM Fiber Output

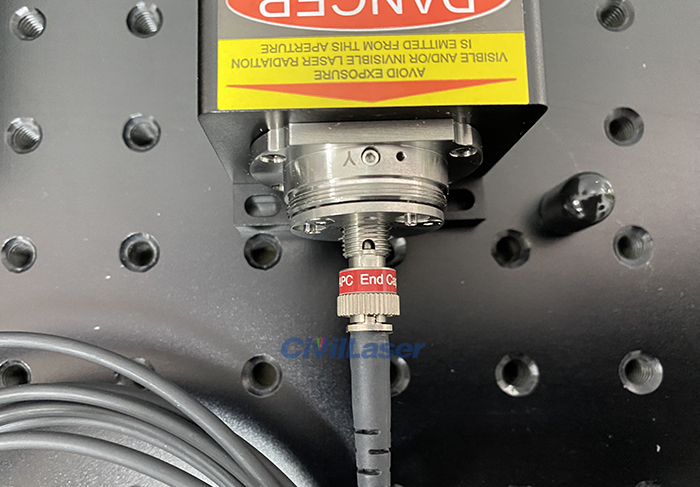

This is a 375nm 30mW polarization-maintaining fiber-coupled laser. Its fiber is pluggable. When installing the fiber, pay attention to align the bayonet. The laser output power is adjustable from 1 to 30mW. This laser supports CW continuous operation and TTL modulation operation modes, and is equipped with a modulation signal line. When Modulation is connected to an external signal, the laser automatically enters TTL modulation mode.

The 375nm 30mw PM fiber laser uses advanced polarization maintenance technology, which can maintain the polarization state of light during transmission and avoid polarization state changes caused by external factors (such as temperature changes, fiber bending, etc.). The application of this technology makes the output of the laser beam purer and more stable, thereby ensuring accuracy and reliability in various applications.

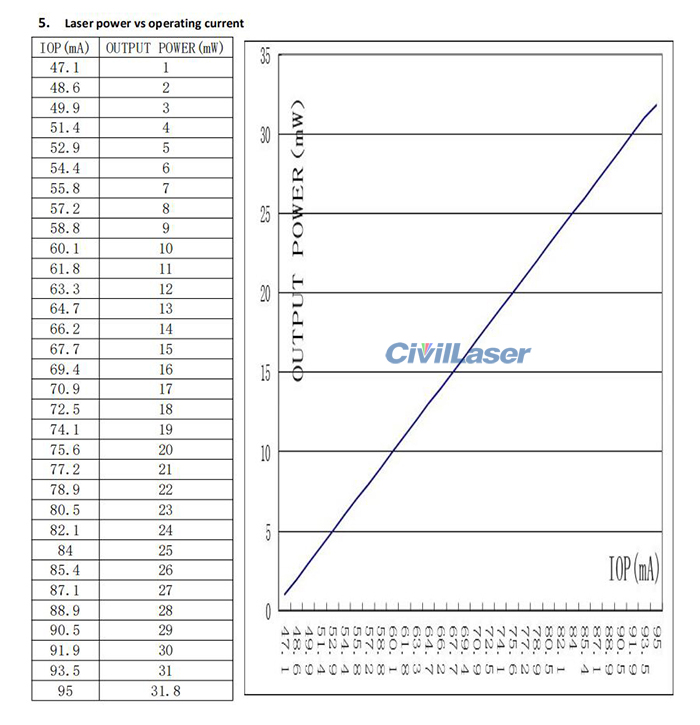

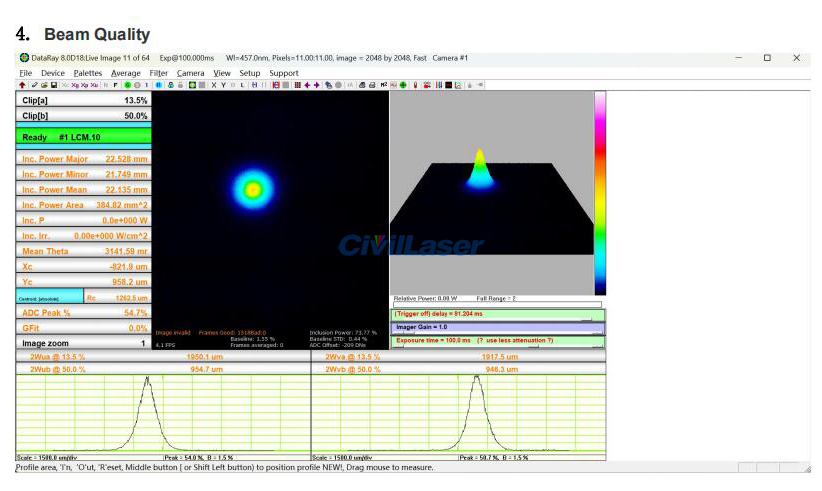

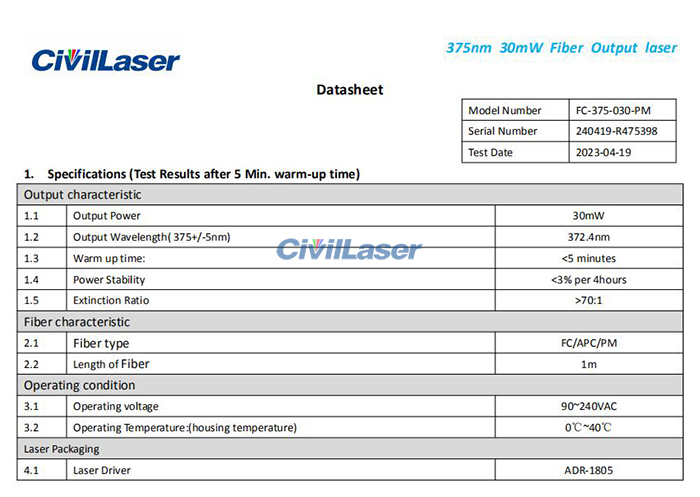

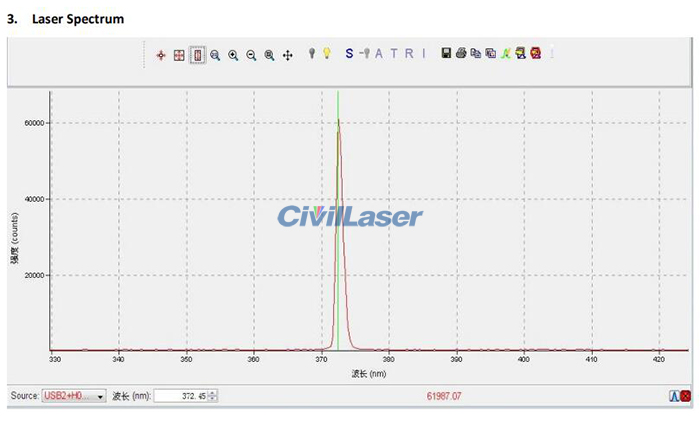

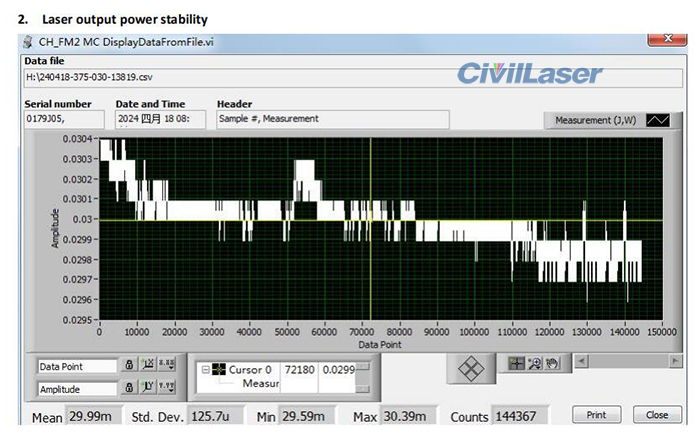

The test data of 375nm 30mw PM fiber laser.
