532nm 10W Green DPSS Laser output power adjustable with digital display power supply

$8,299.00  $6,320.00
Save: 24% off

Add to Cart:


532nm 10W Green DPSS Laser output power adjustable with digital display power supply

[Specifications]
Product Name: 532nm 10W Green DPSS Laser
Lead Time: 1~3 weeks! Custom product available!
Output Wavelength: 532 nm
Output Power:10W
Spatial mode: near TEM00
Operating mode: CW or Modulation
Modulation:  0~30khz Analog or TTL modulation
Beam quality(M2): 2~3
Polarization: >100:1
Laser Shape: Circular, aspect ratio<1.1:1
Pointing Stability: <0.05 mrad
Beam Diameter(1/e2): 3 mm
Divergence Angle: <1.5 mrad
Beam height from base: 68.2mm
Power Stability:  <±5% per 4hrs
Temperature Stabilizing: TEC
Warm Up Time: <10 minutes
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser head dimensions: 155(L)x77(W)x60(H) mm

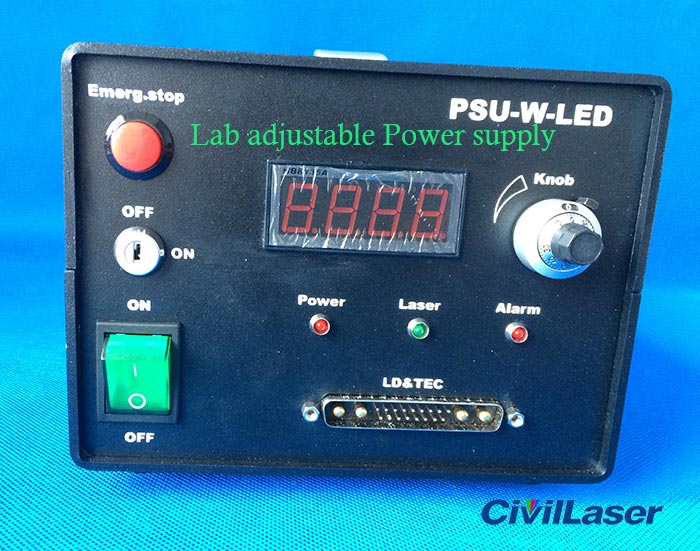

Power Supply #2: Lab Adjustable power supply  178(L)x197(W)x84(H)mm
Warranty: 1 Year

[APPLICATIONS]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar

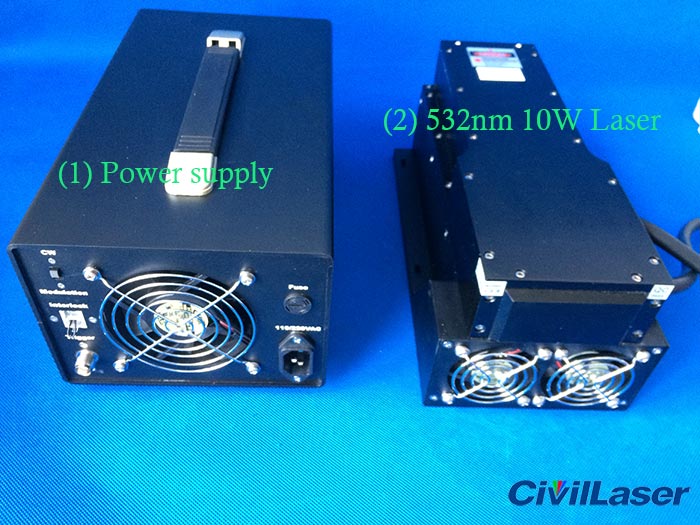

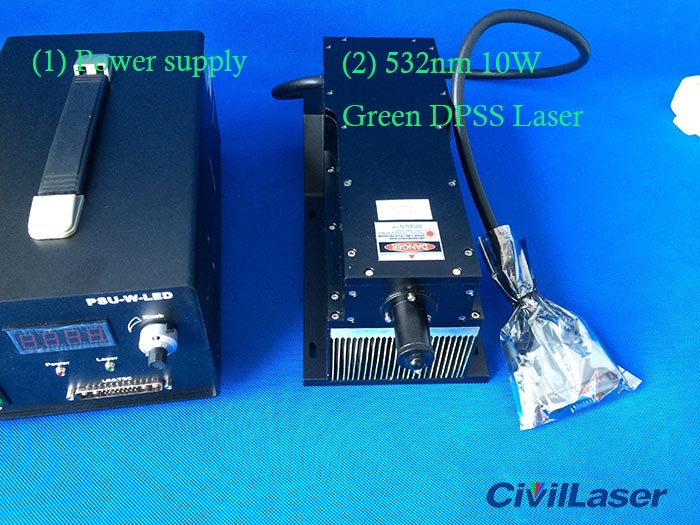

[Package include]

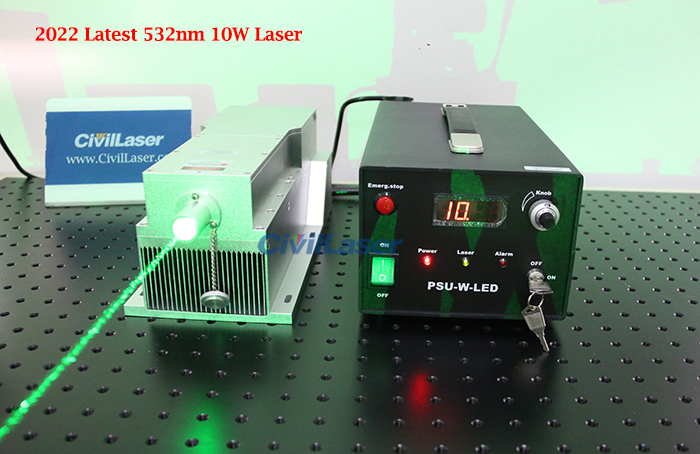

1 x 532nm 10W dpss laser

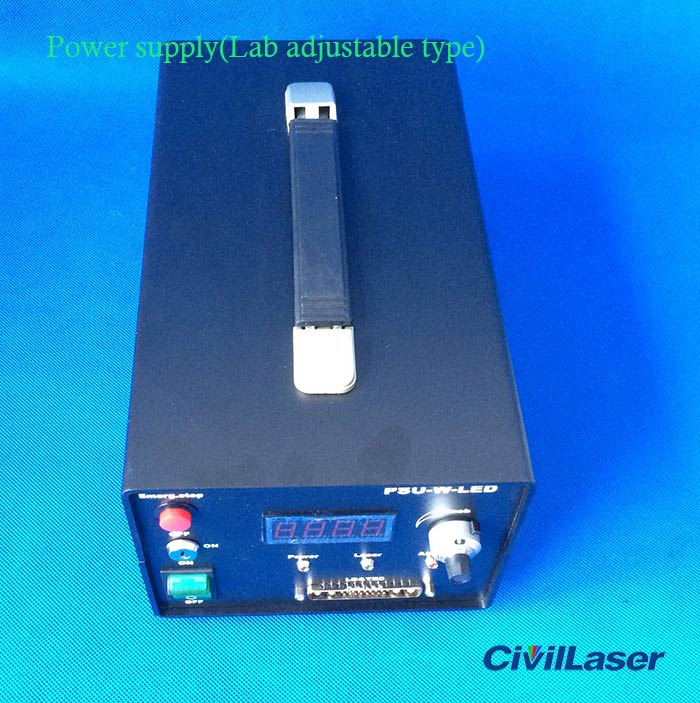

1 x Laser power supply(Lab adjustable type)

Note:
This size is for reference only. The size of the latest model may changed.
If there is any requirement for size, please contact us get latest size.

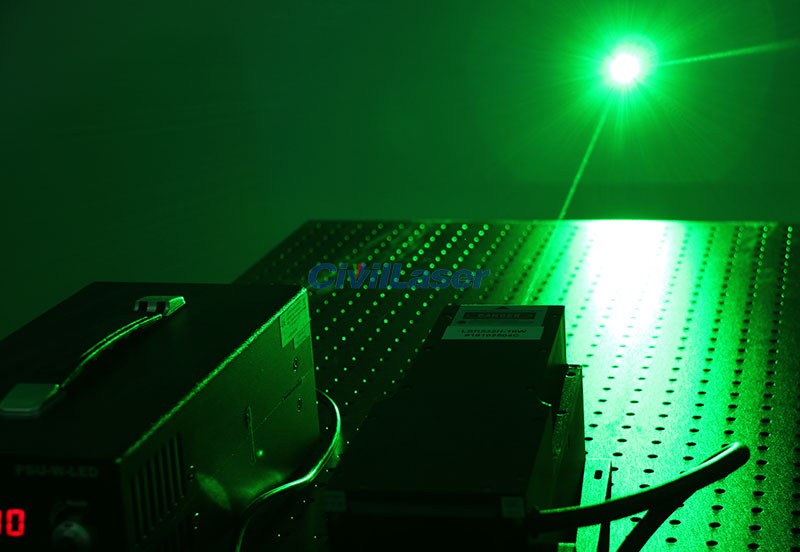

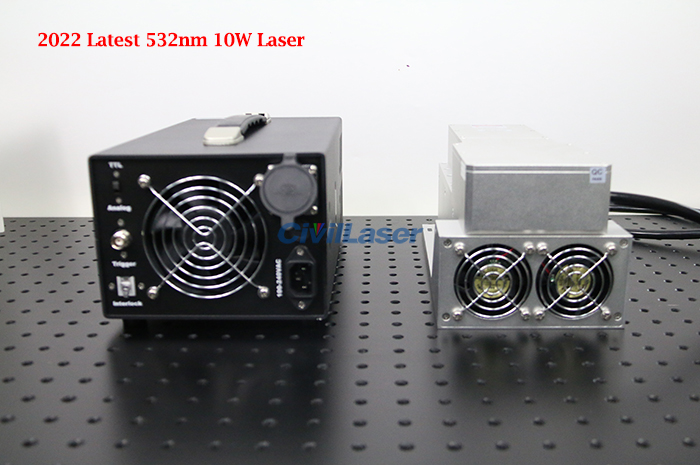

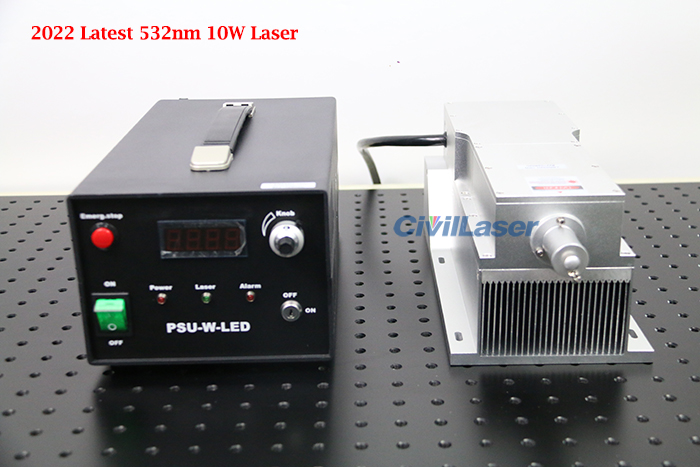

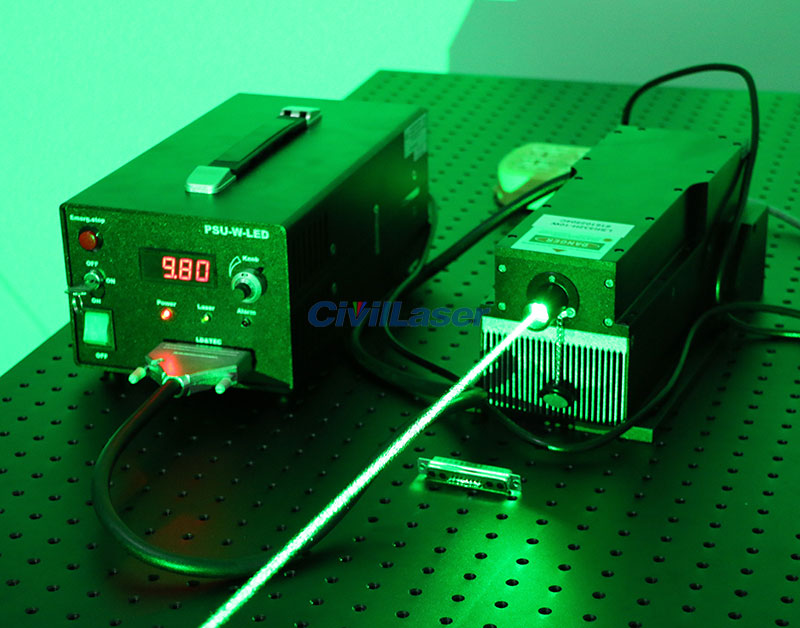

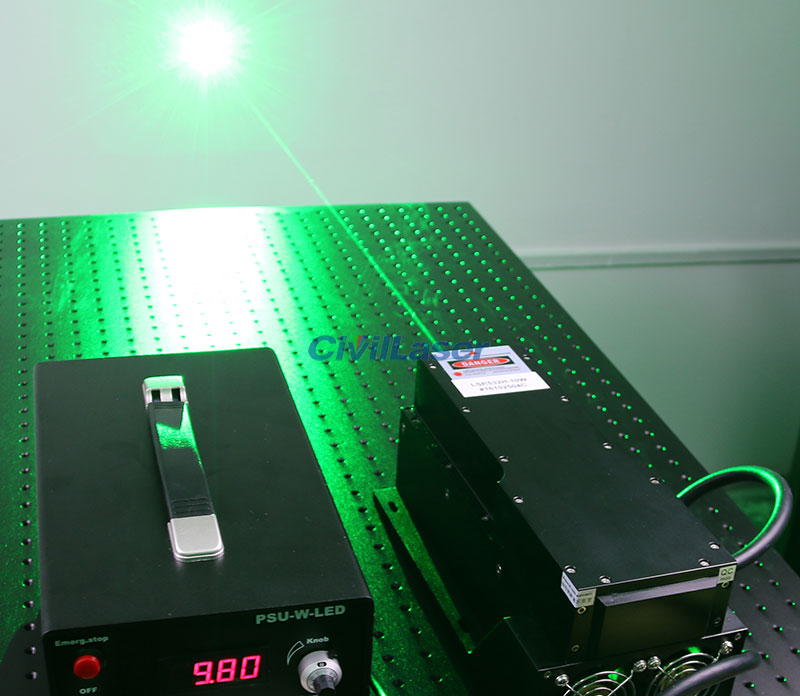

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser

532nm 10W green dpss laser
