M²≤1.2 High Quality 405nm 1~100mW PM Fiber Laser

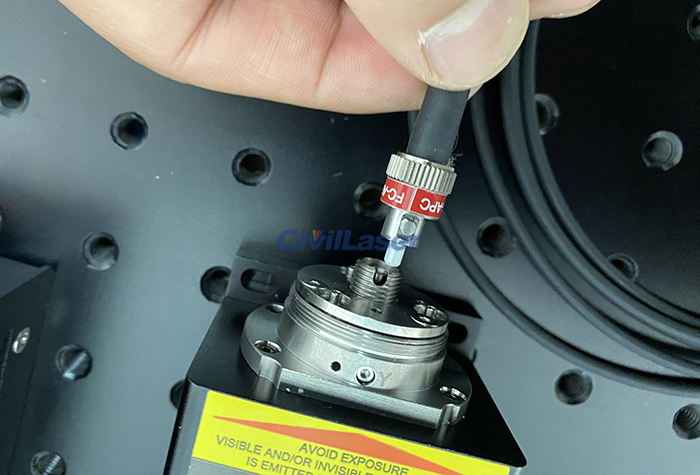

This is a 405nm 100mW fiber-coupled laser. The laser is equipped with FC/APC PM polarization-maintaining fiber, which is pluggable. The default fiber length is 1 meter. When installing the fiber, pay attention to align the bayonet.

It supports CW continuous operation and TTL modulation working modes, and is equipped with a modulation signal cord. When Modulation is connected to an external signal, the laser automatically enters the TTL modulation mode.

Its working voltage supports a wide voltage range of 90~240V. The laser output power can be adjusted from 1 to 100mW. Let’s check it now.

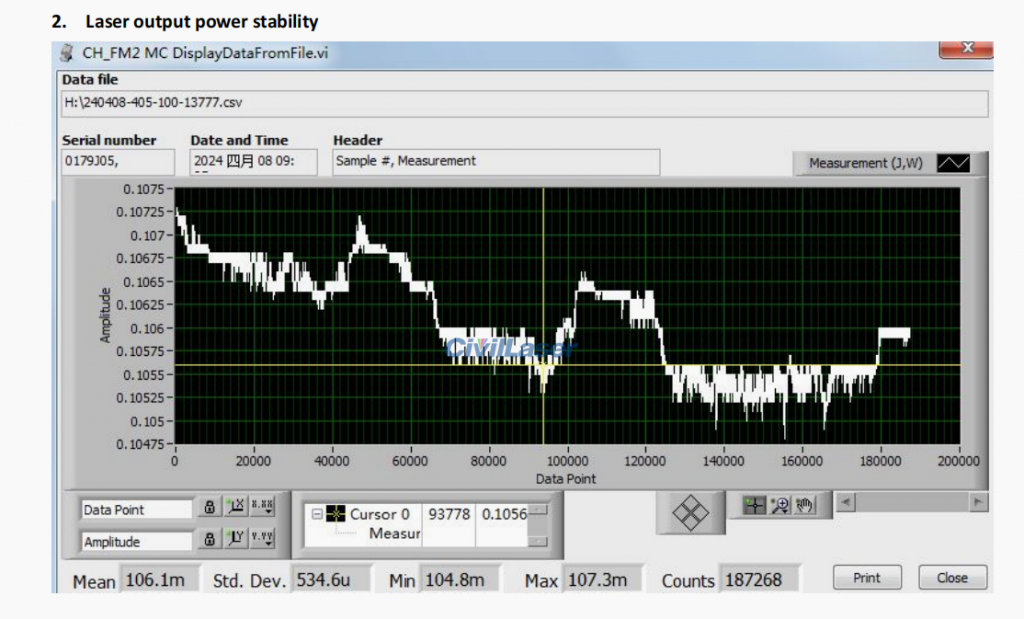

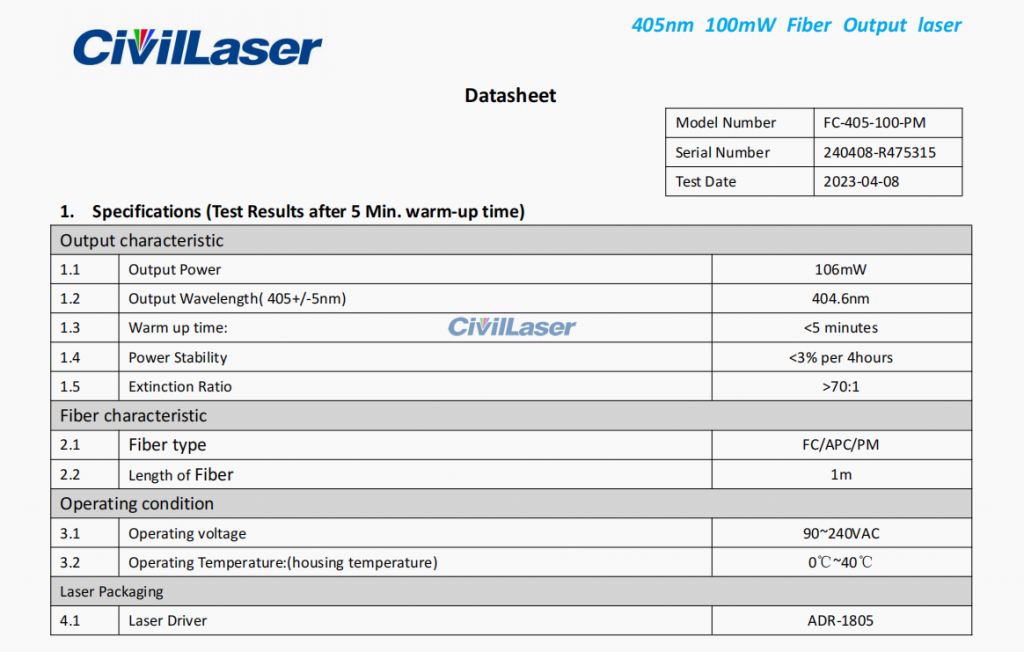

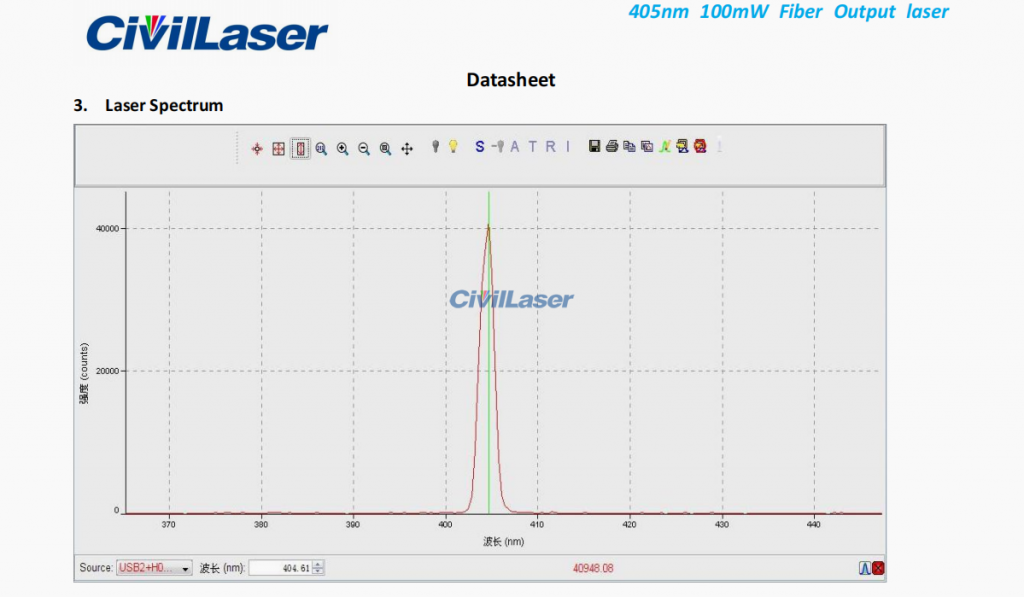

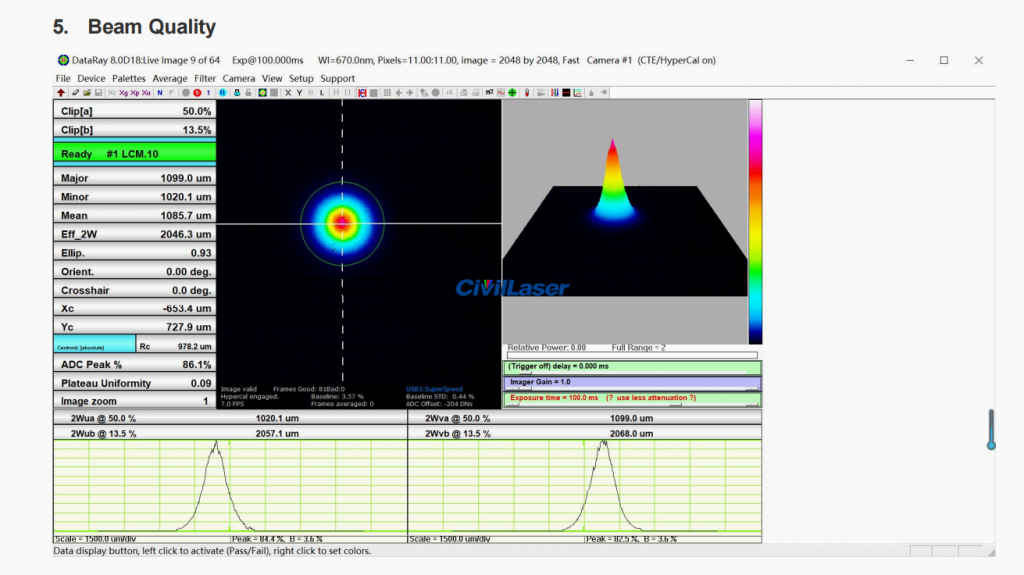

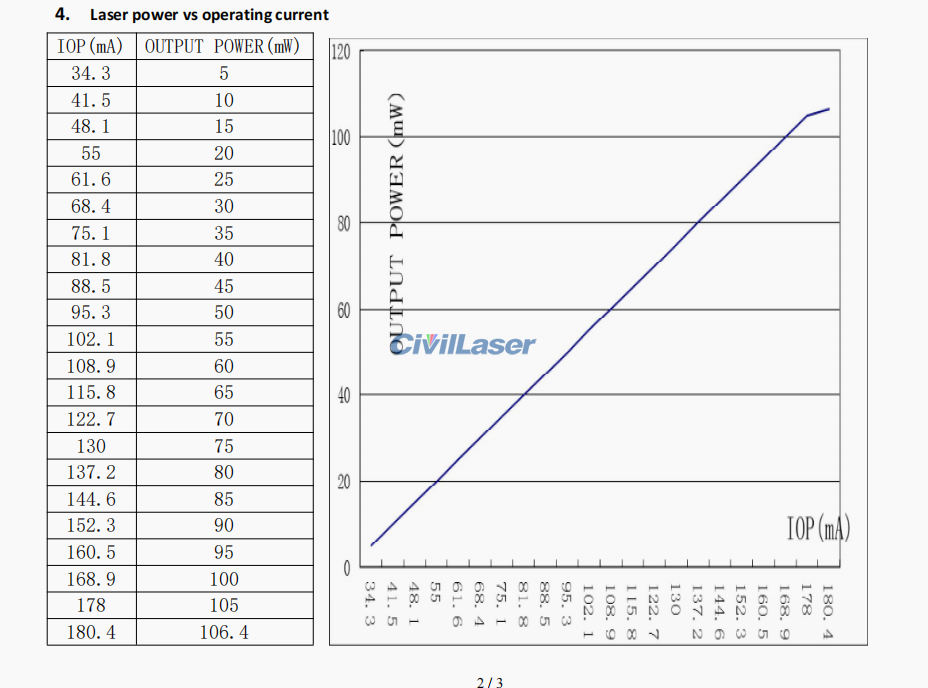

Test data of 405nm 100mW PM fiber laser.
