C-Band 40dBm PM EDFA Optical Fiber Amplifier

What our laboratory is going to show today is a C-band 40dBm polarization-maintaining erbium-doped fiber amplifier. The input and output fibers of the PM amplifier are polarization maintaining fiber PM1550 and the connector keys are aligned the slow axis. This EDFA is designed to amplify optical signals up to 10W average power for high power applications at 1550nm wavelength range.

The operating current or output power can be adjusted by pressing the button. You can choose the software control function and use the RS232 interface to connect to the software. It supports two working modes: ACC and APC. Let’s check it now.

The two working modes of ACC and APC can be switched. In APC mode, the output power can be adjusted. In ACC mode, the operating current can be adjusted.

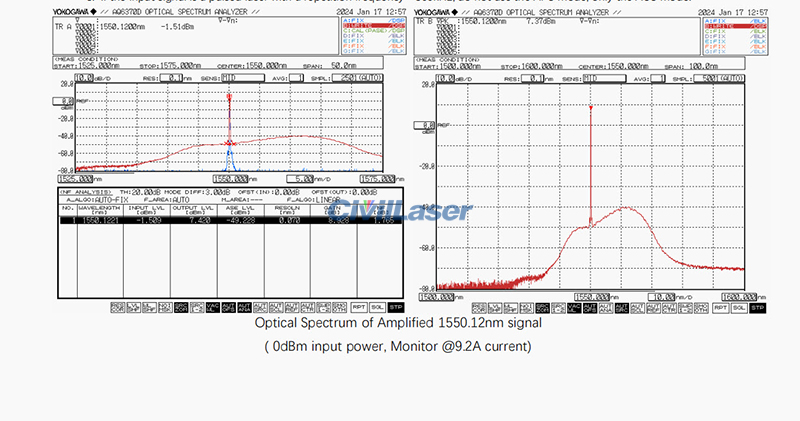

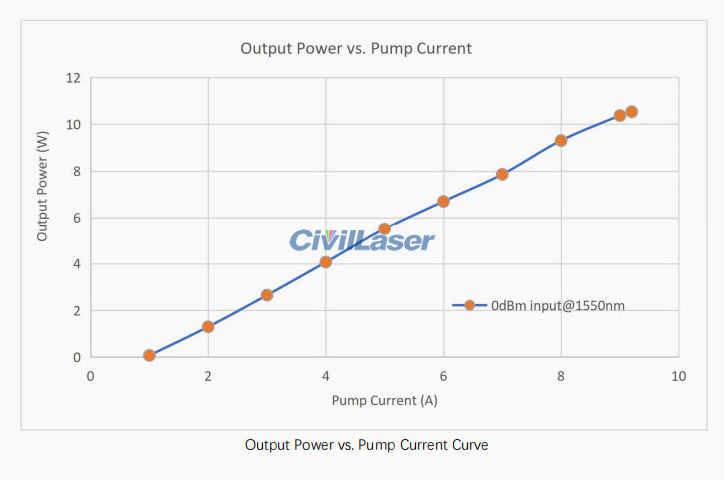

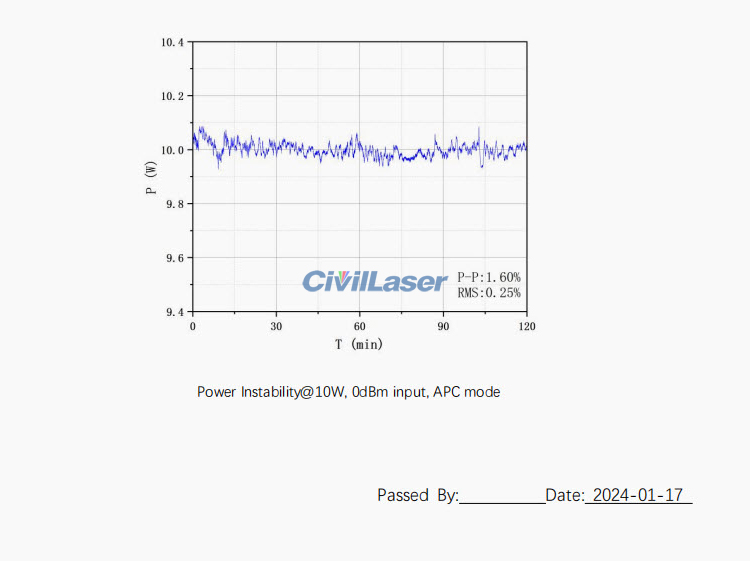

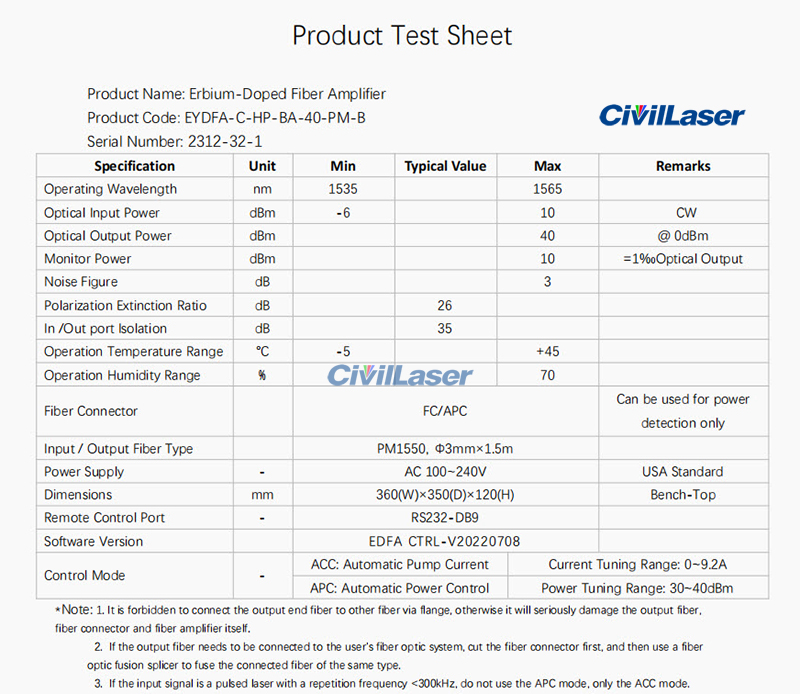

The test report of this EDFA.
