780nm 10mW Singlemode Fiber Laser System

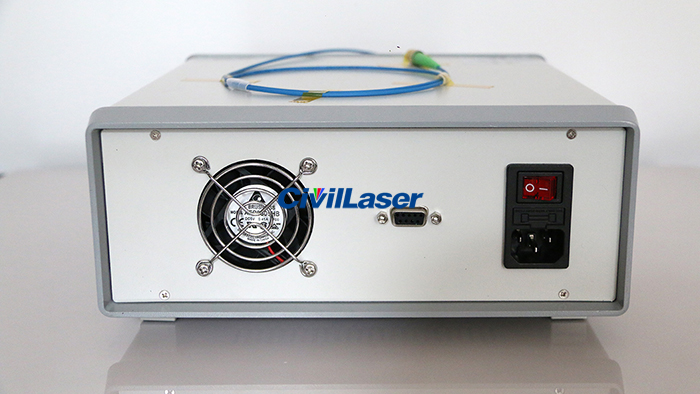

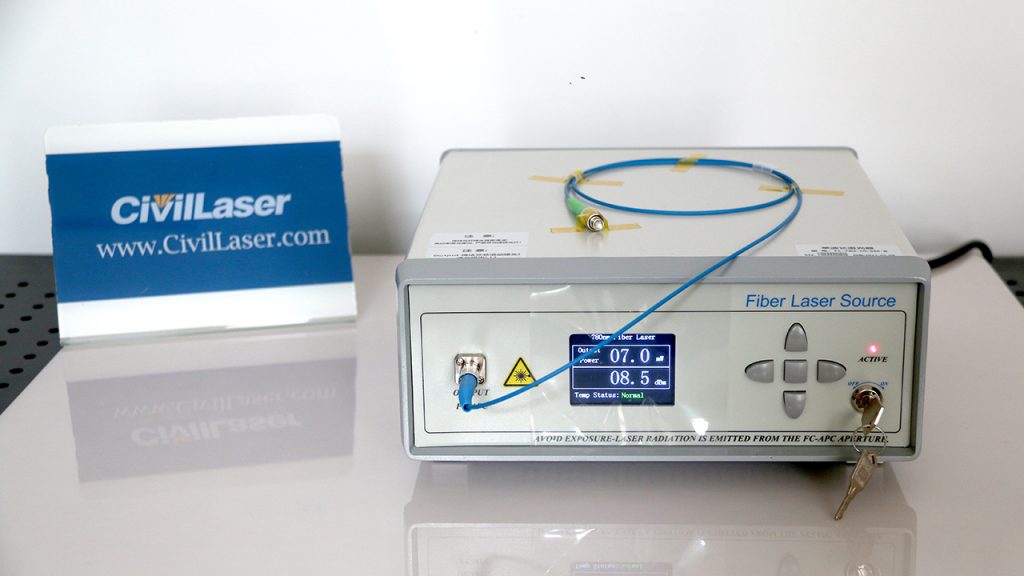

It’s a 780nm near IR laser source coupled single mode fiber. This laser can be customized software control mode. Use DB9 interface, RS232 protocol. The max laser power of this laser is 10mW, and the Minimum adjustment accuracy is 0.1mW. The laser can be controlled by buttons. The key turn to ‘ON’, then the laser output. The following is a demonstration of laser system operation. Let’s check it now.

This laser uses a semiconductor laser chip, professionally designed drive circuit and TEC control to ensure safe operation of the laser, output power and spectral stability. It is suitable as a high stability test light source for the production test of optical fiber devices in the 780nm band.
