1550nm 5W IR Invisible Laser SM Fiber Output

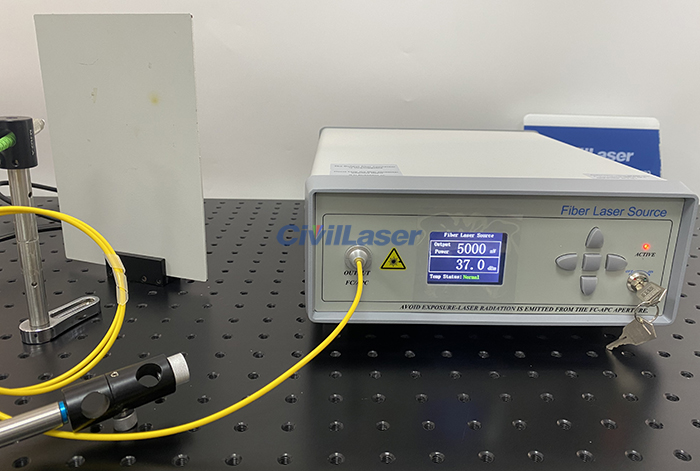

This is a 1550nm single-mode fiber laser source desktop type. The maximum output power is 37dBm. The output power is adjustable with an adjustment range of 0.5~5W. The adjustment accuracy is 1mW. The Line-width here is 3.7 MHz, and the line width of 1MHz can be customized. The laser can be controlled through the buttons on the panel to adjust the laser output power. Let’s check it now.

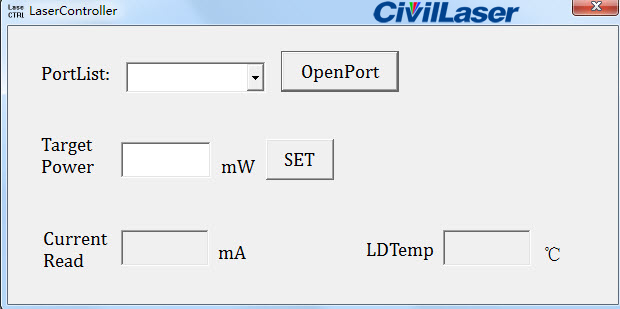

The laser can also be controlled through software, and the communication interface is RS232. The following is the interface for the control software.

1550nm is infrared invisible light, and the light spot can be observed with an infrared sensor plate. What is configured here is single-mode fiber, and polarization-maintaining fiber can be customized.

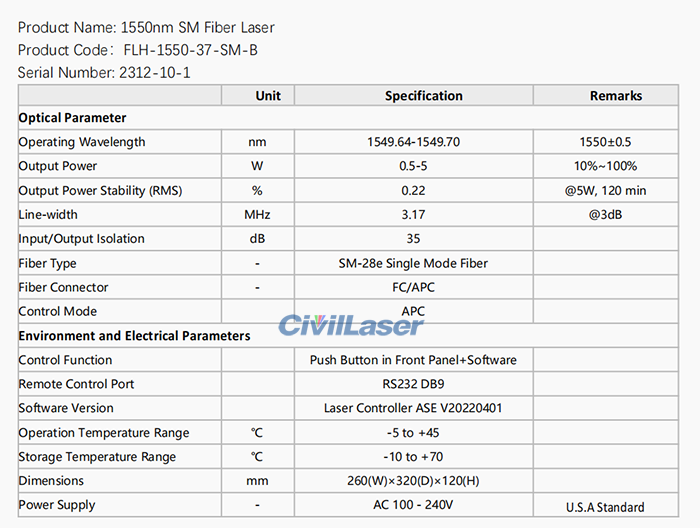

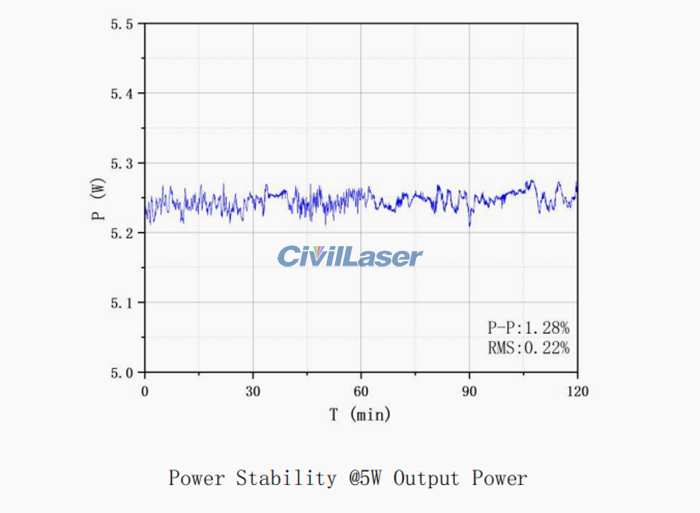

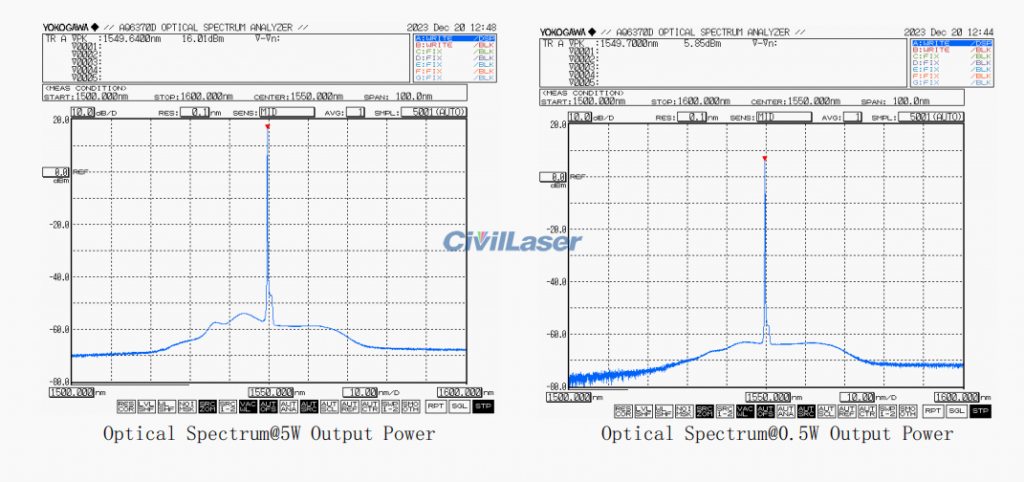

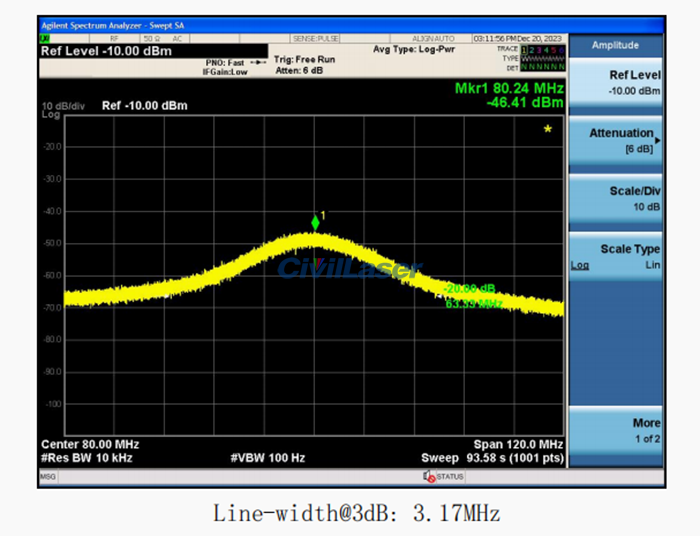

These are laser test reports, including the main parameters of the laser, spectrum diagram, power stability test, and line width test results.
