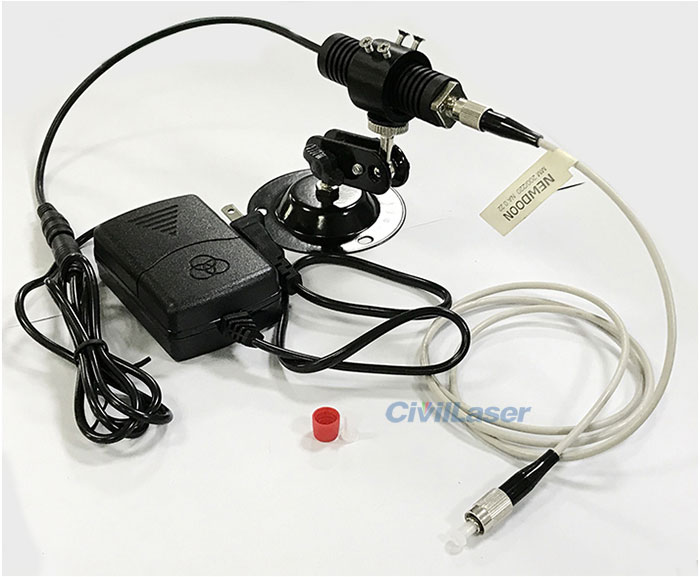

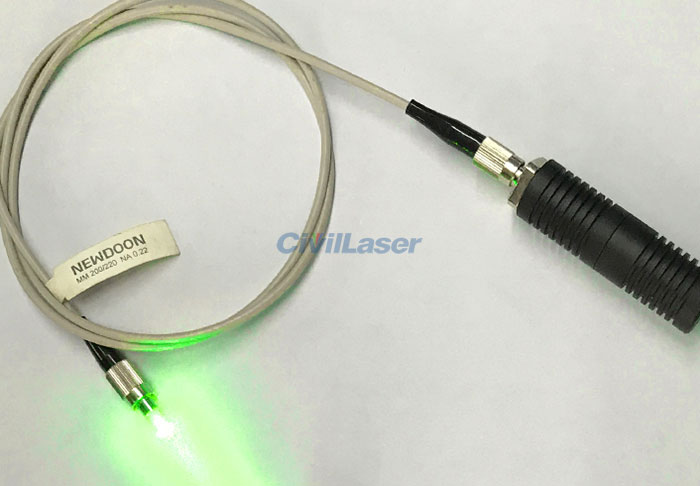

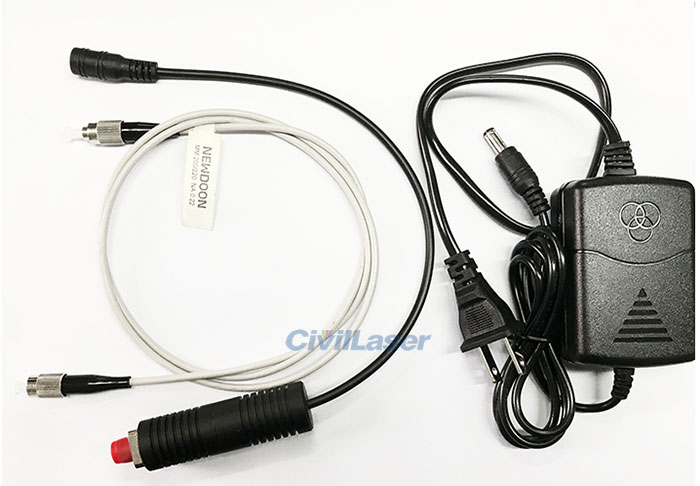

520nm 50mW Green Pigtailed Laser Diode Module With Power Supply

520nm 50mW Green Pigtailed Laser Diode Module With Power Supply

[Specifications]
Product Name: 520nm pigtailed laser
Wavelength: 520±10nm
Output Power: <50mW
Output Mode: Multimode
Multimode Coupling Ratio: >90%
Spot Form: Astigmatism

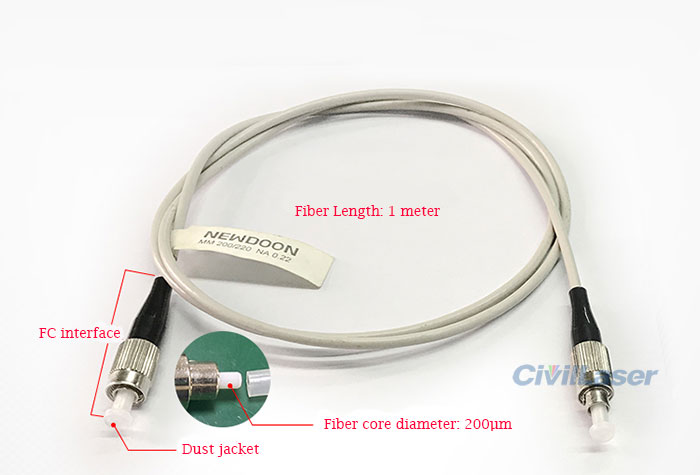

Fiber Core Diameter: 200μm
Fiber Length: 1m (Customizeable)

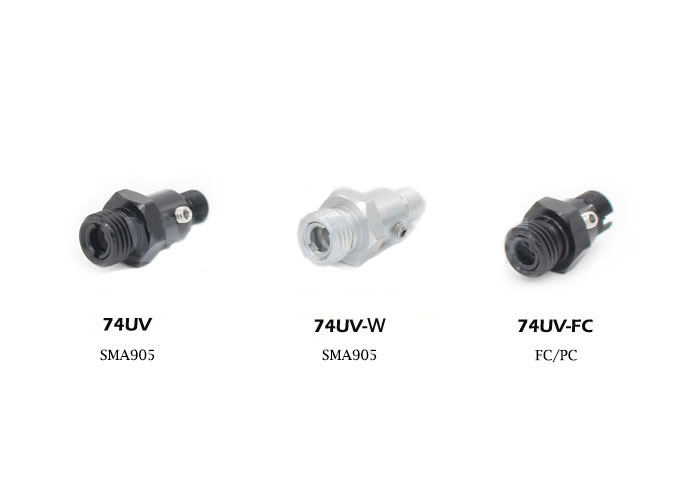

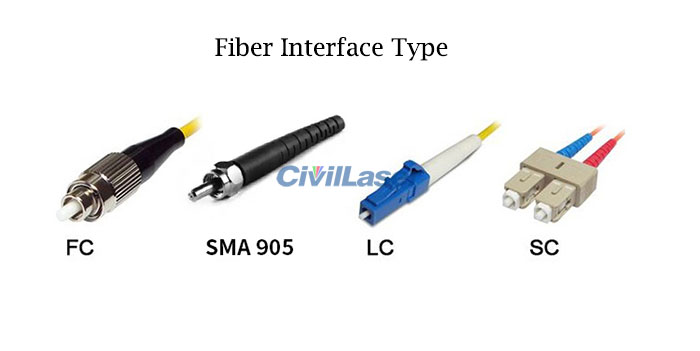

Fiber Interface Type: FC/SMA905/LC/SC (Choose)
Fiber Material: Quartz
Coupling Lens Material: Optical glass
Operating Voltage: DC 6.9V
Operating Voltage With Power Diver: DC 3-5V
Operating Current: <160mA
Circuit Control Mode: ACC / TTL frequency modulation (Choose)
Operating Temperature: -20~60℃
Storage Temperature: -40~85℃

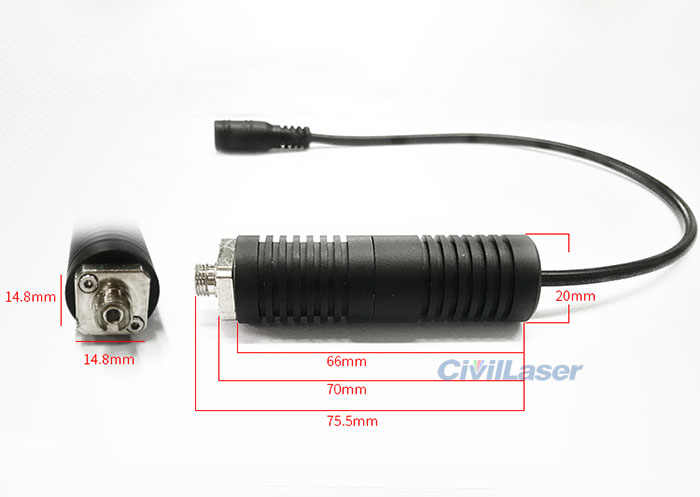

Size: Φ20*70mm
