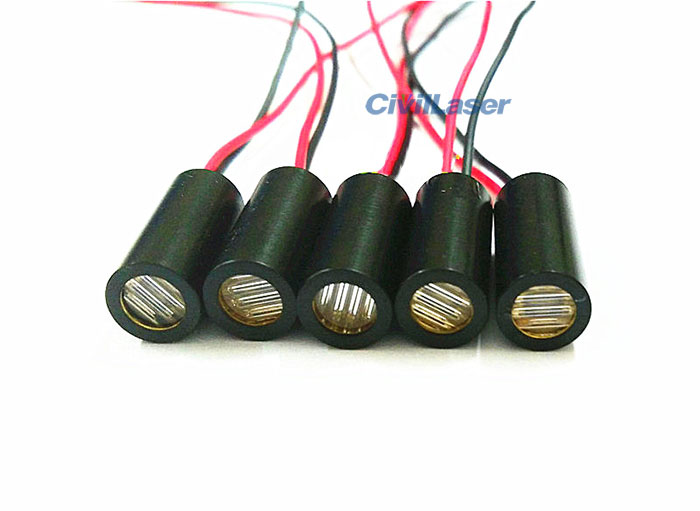

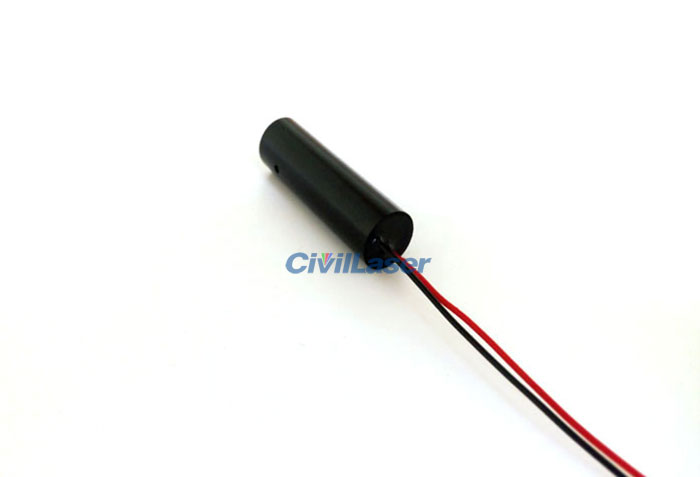

808nm 100mW~300mW Infrared Laser Diode Module Line Module Span Angle 110°

[Specifications]
Wavelength: 808nm
Output Power: 100mW/200mW/300mW(Choose)
Laser Safety: Class IIIB
Circuit Mode: CW
Span Angle: 110°
Lens: PMMA
Housing Material: Aluminum
Mean Time to Failure: >8000H

808nm 100mW
Line Width: <2.5mm at 300mm
Operating Voltage: 2.8~3.5V
Operating Current: <280mA
Operating Temperature: -10℃~+50℃
Storage Temperature: -40℃~+85℃
Size: 9*21mm(Diameter*Length)

808nm 200mW
Line Width: <2.5mm at 300mm
Driver Circuit: APC
Operating Voltage: 3~6.5V
Operating Current: <280mA
Operating Temperature: -20℃~+45℃
Storage Temperature: -40℃~+85℃
Size: 10*35mm(Diameter*Length)

808nm 300mW
Line Width: <3mm at 1m
Driver Circuit: ACC
Operating Voltage: 2.8~3.5V
Operating Current: <380mA
Operating Temperature: -10℃~+45℃
Storage Temperature: -40℃~+85℃
Size: 10*35mm(Diameter*Length)
