633nm 1mw Red Dot laser module Special specifications 10×30mm

Starting at: $46.00

Please Choose:



Add to Cart:


633nm 1mw Red Dot laser module Special specifications 10×30mm

SPECIFICATIONS:
Name:  633nm 1mw Red Dot laser module 10×30mm
Output Wavelength: 633nm ±5nm
Output Power: <1mw
Class level: Class II
Laser Shape: Dot
Range: <50 meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: Red laser

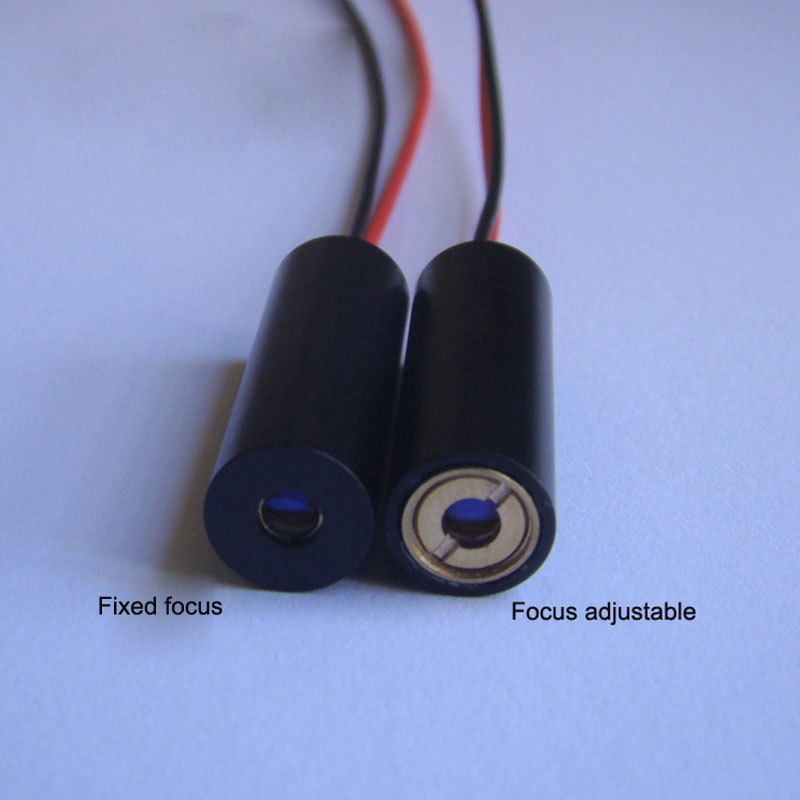

Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ12mm at 10m distance, focus adjustable
Circuit control: APC
Size: Φ10x30mm
Operating Voltage:  DC=3V
Operating current: I<50mA
Operating Temperature: -10°C~+40°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >6000 hours
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty
