30mW~400mW EDFA C-Band 1540-1565nm Multi-wavelength Erbium-doped Fiber Amplifier BA Advanced LCD type

Starting at: $1,650.00  $1,100.00
Save: 33% off

Please Choose:



Add to Cart:


30mW~400mW EDFA C-Band 1540-1565nm Multi-wavelength Erbium-doped Fiber Amplifier BA Advanced LCD type





Note(May 21,2019):
EDFA-BA Output Power(300mW-25dBm and 400mw-26dBm) are out of stock.




Multi-wavelength Gain Flatness Erbium doped fiber amplifier  (GFF EDFA )  is a family of fiber amplifier products dedicated to optical fiber communication systems,it has multi wavelength and gain flattening, and high gain and low noise advantages, support PC software control, compact, easy to integrate, but also according to customer needs to provide desktop or rack type packaging.



There are two types EDFA.(Current product is Booster - Amplifier.)
Pre - Amplifier, referred to as PA, that is preamplifier, used in the -40 ~ -25 dBm range of small light signal amplification, typical gain of 35 dB;
Booster - Amplifier, referred to as BA, is used to enhance the power of the optical signal in the range of - 6 ~ + 3 dBm, with a maximum output power of 27 dBm;


[Characteristic]
Wide working wavelength range;
High gain and flat gain;
Good temperature adaptability.

[Application]
Optical fiber communication
optical fiber sensor
fiber laser

[Specifications]

Parameters

Unites

Minimum value

Typical value

Maximum value

Remarks

Wavelength range

nm

1530

1550

1560

C-band

Preamplifier

EDFA-PA-GF(Click here)

Input power

dBm

-32







Output power

dBm





14



Gain coefficient

dB



25





Power amplifier

EDFA-BA-GF (Current)

Input power

dBm

-26



-10



Output power

dBm





15~26dBm

Choose

Gain coefficient

dB



25





Noise index

dB



5

5.5



Gain flatness

dB



0.8

1.5



Polarization dependent gain

dB





0.5



Polarization mode dispersion

ps





0.5



Input / output isolation

dB

40







Operating temperature range

°C

-20



+65



Working humidity range

%





70



Pigtail connector type



FC/APC Or custom made



Pigtail type



Single mode fiber SMF-28e



Power supply mode

-

 DC 5V or AC110V~ 220V

Matching power adapter

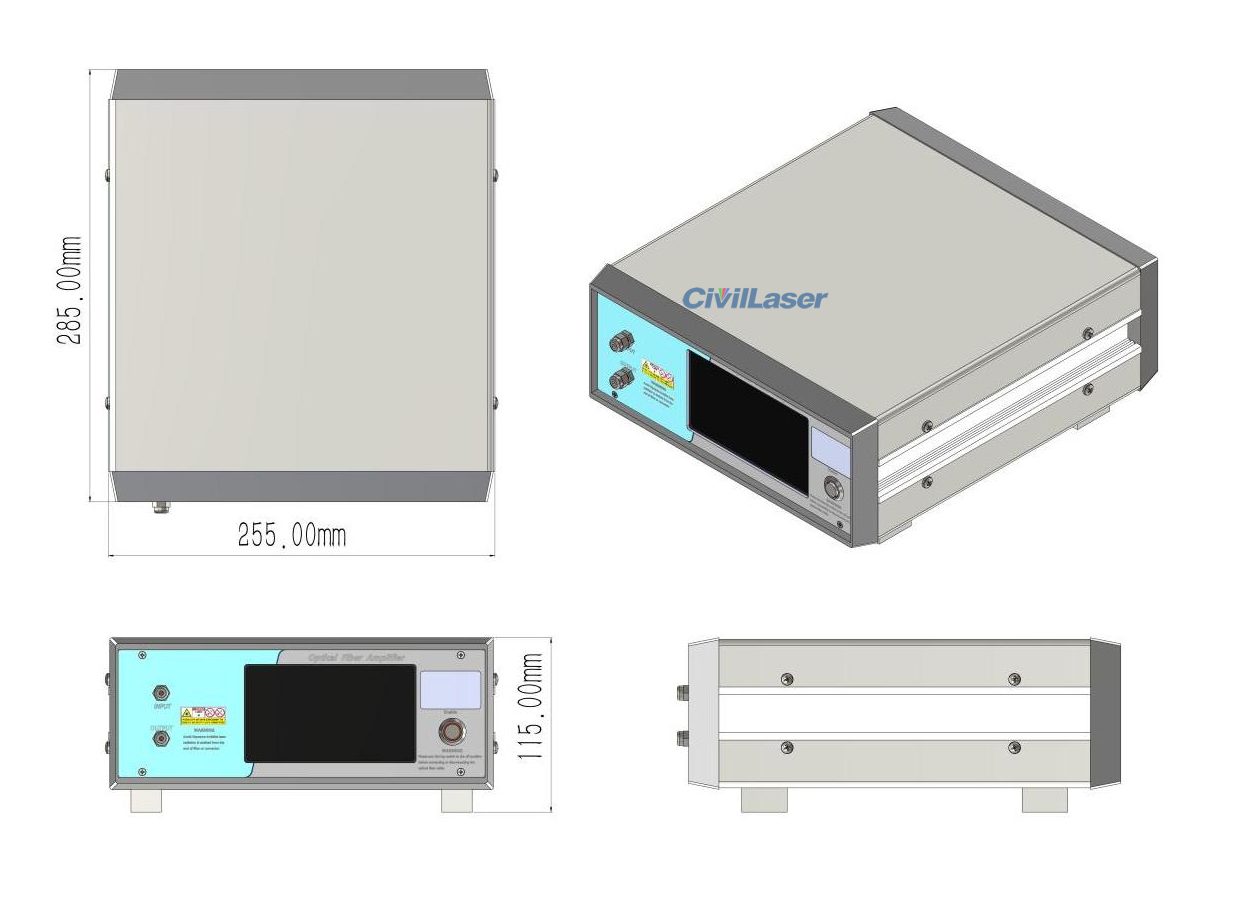

Size

mm

LCD Desktop type
Desktop#01:260x280x120mm
Desktop#02:260x320x110mm
(We send it randomly, please contact us if you have size requirements.)



Communication interface

-

DB9 Female(RS232)

The software control function is not included by default, it can be customized.

Work mode



AGC(automatic gain control)

LCD display, button control












Erbium-doped Fiber Amplifier EDFA

Erbium-doped Fiber Amplifier EDFA

Erbium-doped Fiber Amplifier EDFA

Erbium-doped Fiber Amplifier EDFA

Erbium-doped Fiber Amplifier EDFA
