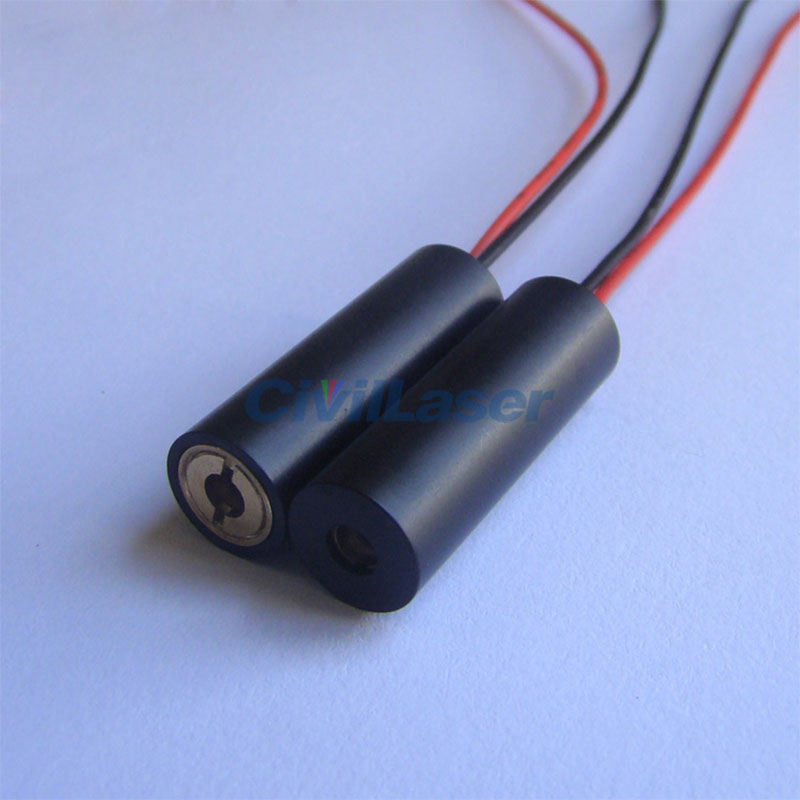

405nm 5mw~200mw Blue violet Dot laser module high-quality Dot positioning lamp

Starting at: $32.00

Please Choose:







Add to Cart:


405nm 5mw~200mw Blue violet Dot laser module high-quality Dot positioning lamp

SPECIFICATIONS:
Name:  405nm 5mw~200mw Blue violet Dot laser module
Output Wavelength: 405nm ±5nm
Output Power: 5mw, 10mw, 60mw, 120mw, 200mw(Choose)
Class level: Class III
Laser Shape: Dot
Range: 500~5000 meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: Blue violet laser
Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ10mm at 10m distance, focus adjustable
Circuit control: APC
Size: Φ10x22mm, Φ9x21mm, Φ9x26mm, Φ10x30mm(default) , Φ12x50mm
Operating Voltage:  DC=5.5-7.0V
Operating current: I<150mA
Operating Temperature: 0°C~+70°C
Storage Temperature: -40°C~+80°C
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty


405nm 5mw~200mw Blue violet Dot laser module

405nm 5mw~200mw Blue violet Dot laser module
