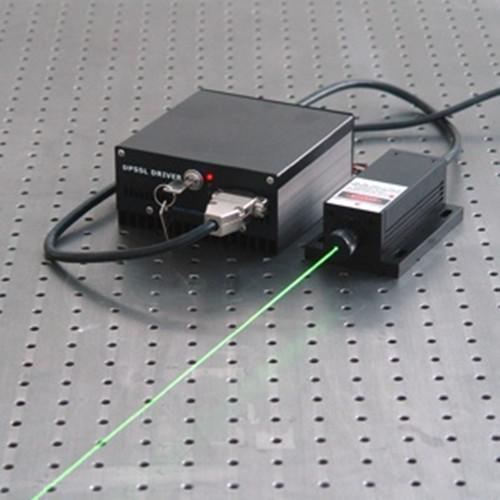

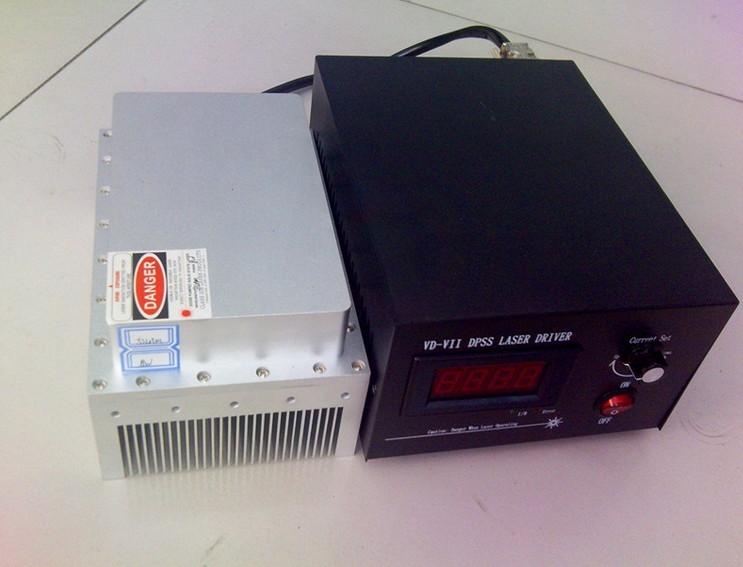

532nm 5W Green Laser Module/Automatic refrigeration/High Power DPSS Laser with power supply

$6,999.00

Add to Cart:

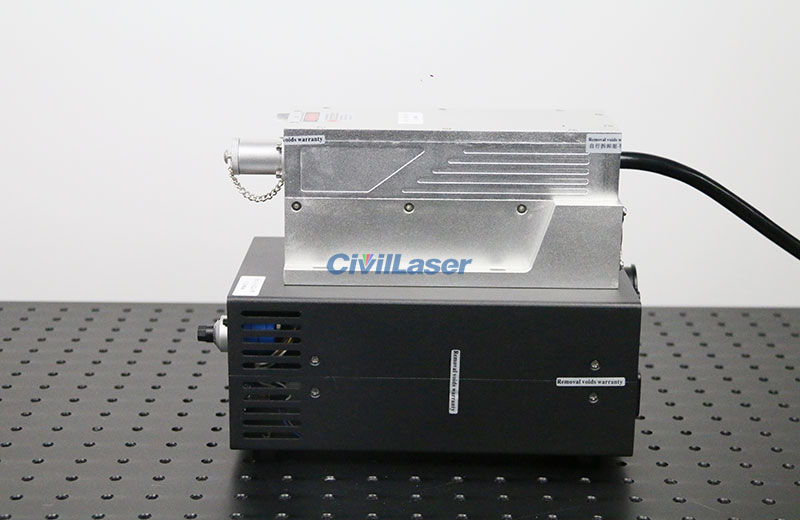

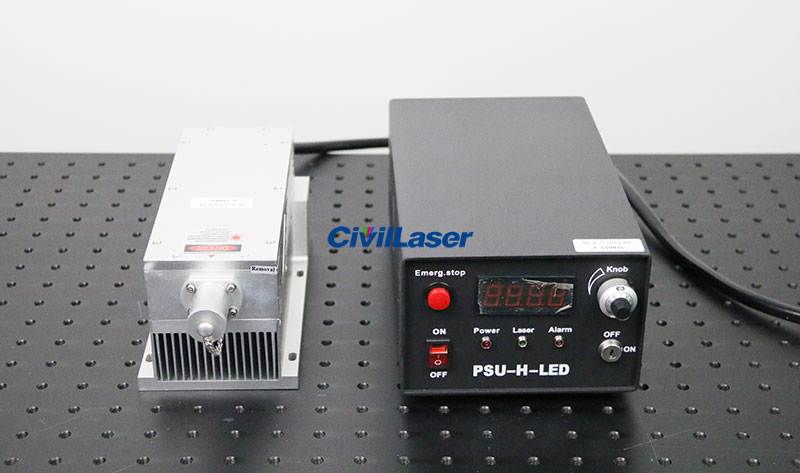

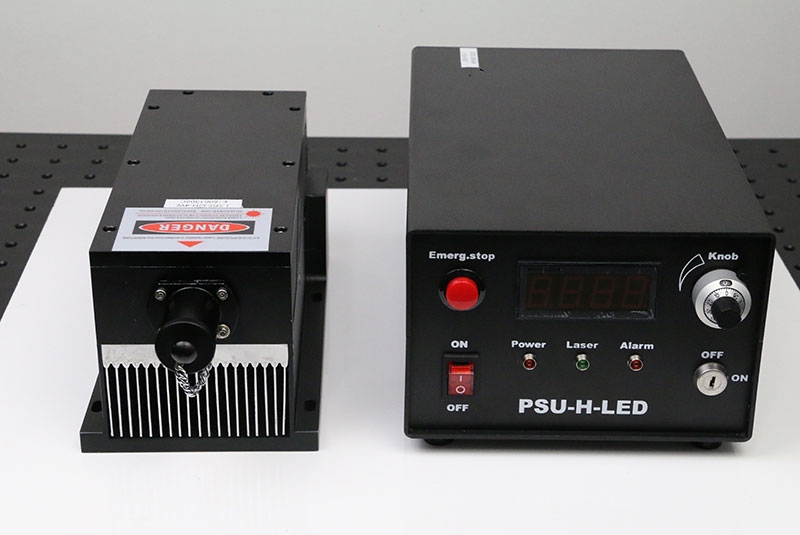

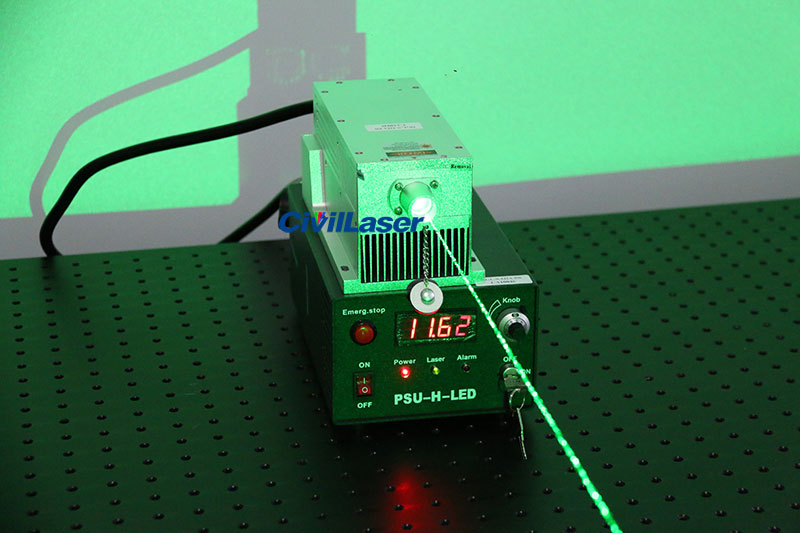

T532D5W green laser show:
The imported laser diode pump source, T532D5W DPSS green laser are made of high quality high quality nonlinear crystal and collimating lens, with temperature control of high performance driving power, the active temperature control, with high efficiency, good stability, good beam quality, low noise, strong anti-jamming, good consistency, compact structure, miniaturization, long life and so on.
Products are widely used in medicine, laser show, isotope separation, ultra-high density optical storage, precision materials processing, lithography, spectrum analysis etc..

SPECIFICATIONS:

Model: T532D5W
Wavelength: 532nm
Operating mode:  CW
Output power:  >5W
Spatial mode:   Near TEM00
Longitudinal mode:  Multi
Spectral linewidth:  0.1nm
Coherence length:  20cm
Polarization:  Linear vertical
Polarization ratio:  >100:1

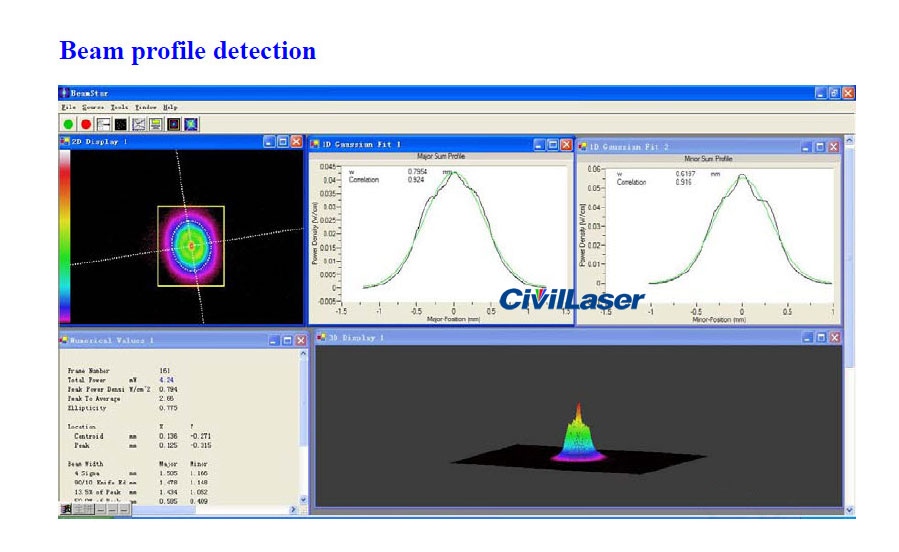

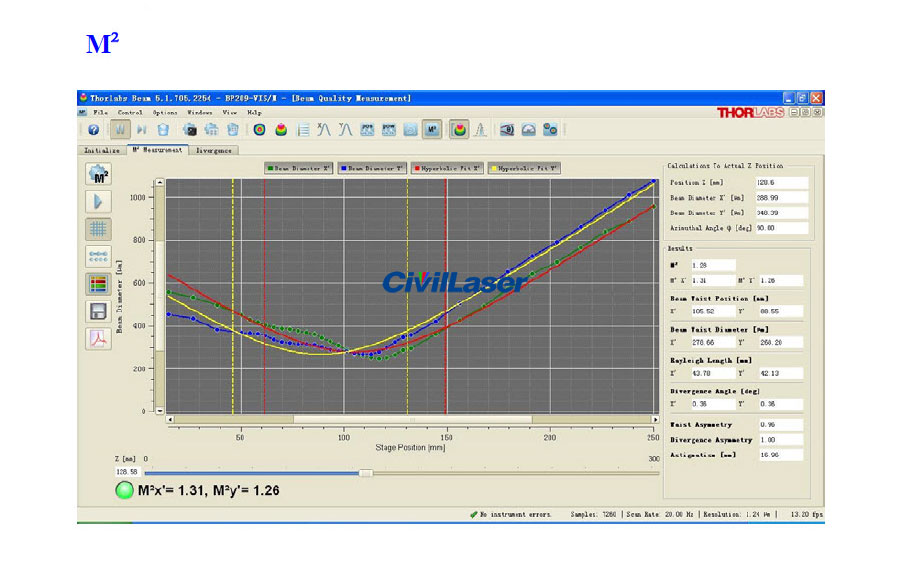

Beam quality:   M2<3
Beam divergence full angle:   1.8mrad

Beam diameter at aperture:  3mm
Beam ellipticity:   1±0.1
Beam pointing stability:  0.03mrad
Noise:   <20% 10Hz-50MHz

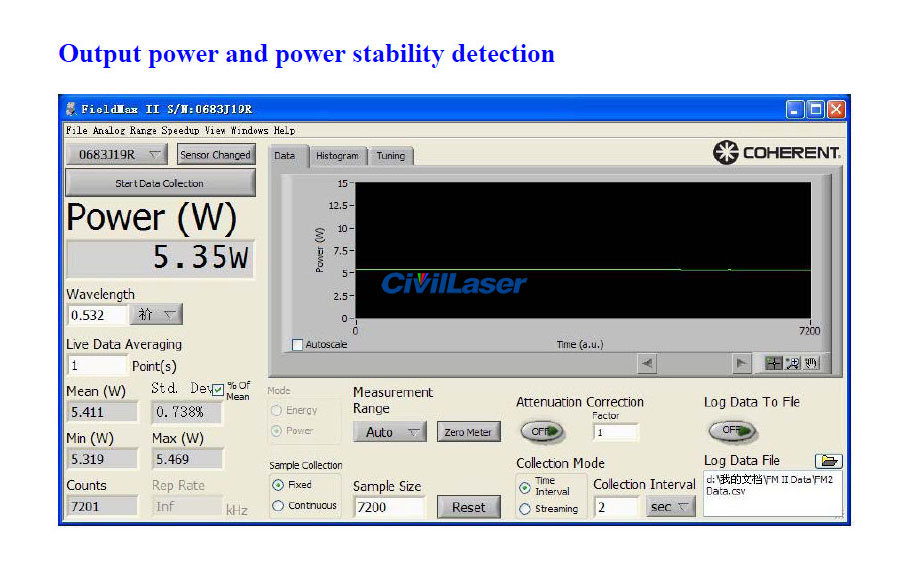

Power stability:       ±3, 5% over 8 hrs rms
Optical axis height:   68.2mm
Size of laser head:    LxWxH=235x99x94mm
Size of power supply:  LxWxH=238x146x102mm
Cabel-laser head:      1.0, 1.5m
Weight of laser head:  2.6kg
Weight of power supply:  2.3kg
TTL modulation: 0V-no lasing, 5V-lasing
Frequency of TTL:  1kHz-20kHz
Efficiency of TTL:  40%-60%
Analogue modulation:  0-5V
Frequency of analogue:  1kHz-10kHz
Cooling mode:      TEC
Operating votage:     90-260VAC
Maximum power consumption:  50W
Warm-up time:   15 mintues
Operating temperature:  10-35℃
Storage temperature:   -20-60℃(<90% relative humidity, non-condensing)
Expected life time:  10,000 hours
Warranty time:  1 year

Note:
This size is for reference only. The size of the latest model may changed.
If there is any requirement for size, please contact us get latest size.

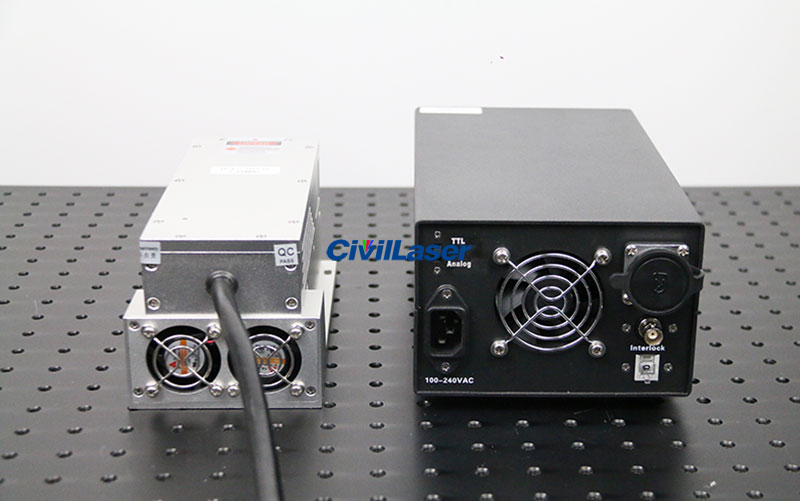

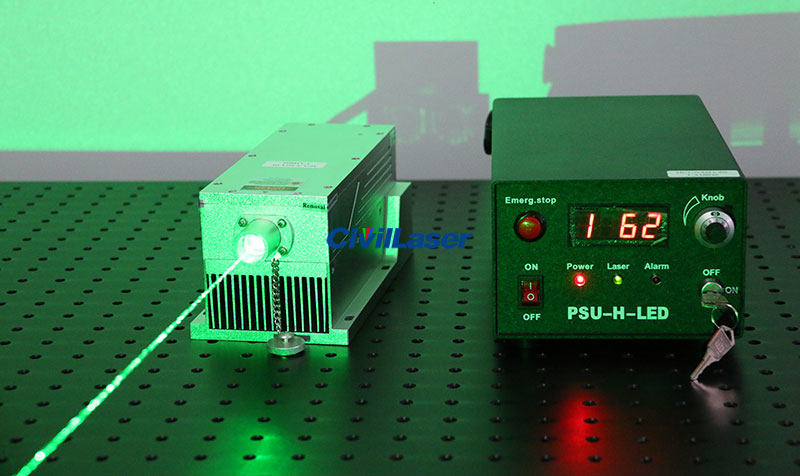

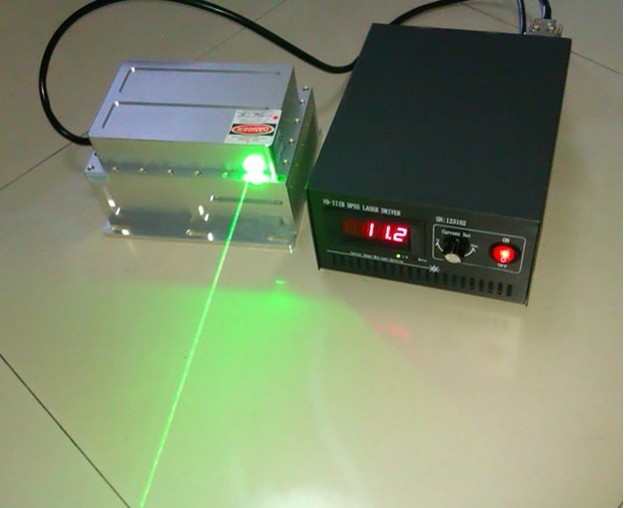

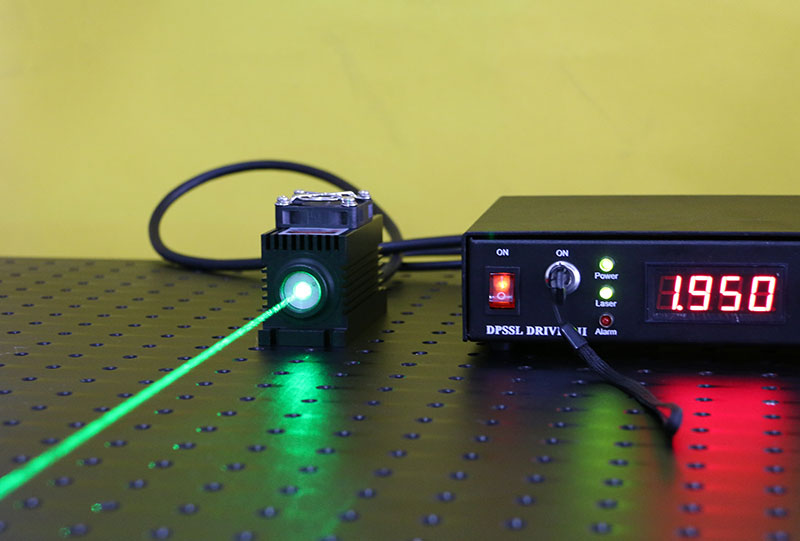

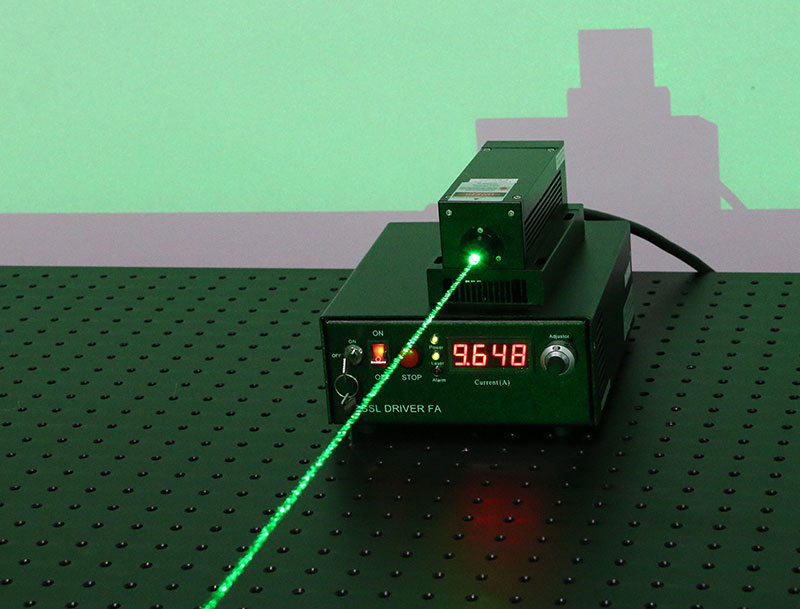

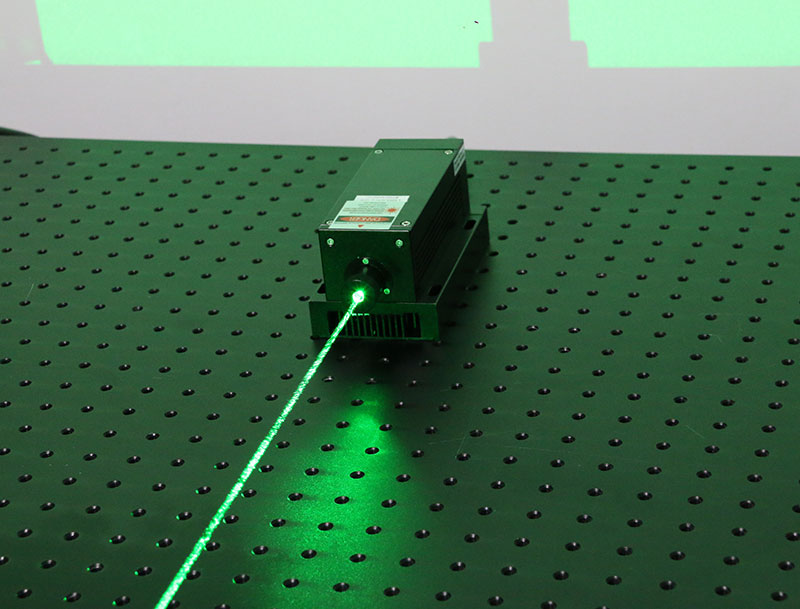

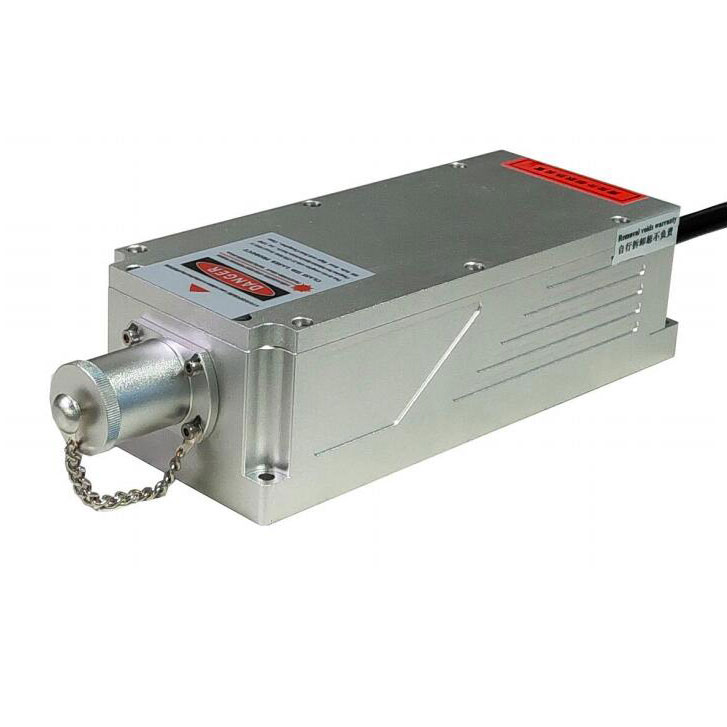

Additional Images
