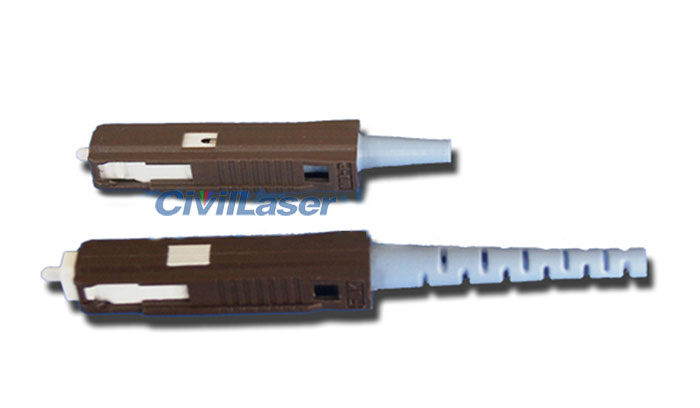

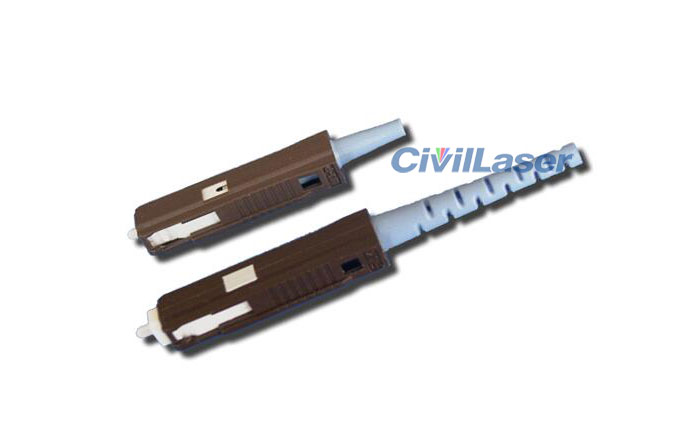

MU Singal Mode Singal Core Fiber Optic Connector


Add to Cart:
Min:  10

The fiber optic connector is one of the most basic components in optical fiber communications system. The earliest few types including FC connector, SC connector and MU connector were developed by NTT in Japan and the Germany designed DIN 47256 type. In order to reduce footprint, Bell Labs developed the LC fiber connector with a small volume to save space. With rapid advances in fiber optic technology over the past decades, these fiber optic connectors have gained widespread popularity in the world.
We also employ a third-party specialist to inspect and verify the quality of our components to be used in the production of our fiber optic connectors. Assessments show that our raw material is compliant with related Chinese standard and ROHS standard.
Of course our optic fiber connector can be specially made to meet customer specific requirements.

1. Corrosion resistant and durable
2. Low insertion loss
3. Ceramic, metal and plastic ferrules are available.
4. Different models offer various kinds of tail sleeves and colors.
5. Mechanical properties of MU connector are in accordance with IEC 61754-6 and JIS C5983 standards.

1. Through curing and grinding processes, the fiber optic connector, along with various fibers, can be made into different kinds of patch cords and pigtails.
2. Optical fiber communication system, active devices and optical fiber sensors
3. Communication machine rooms
5. Transmission equipment of fiber-optic link and national defense equipment
6. LANs and WANs
7. Telecommunication network and CATV
8. System debugging

Applicable Standards
Design and test of all the fiber optic connectors conform to many standards including IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801 2nd Ed., EN 50173, JIS C5973 F04, ICEA-596, IEC60793-2-10 A1a, ITU-T G.651 or IEC60793-2-10 A1b or ITU-T G.652 ( based on fiber type), Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL1666/901 (UL-cable) and EIA/TIA455.

Optional Types
Connector kit and components for fiber optic connectors are all available.


Parameter Specifications
Connector Type SC, LC, FC, ST, MU, D4, DIN
Fiber Type Single mode Multimode
Testing Wavelength  1,310nm, 1,550nm 850nm, ,1300nm
Insertion Loss Typical≤0.20dB, max.≤0.30dB Typical≤0.15dB, max.≤0.25dB
Return Loss  UPC ≥50.0dB,APC ≥60.0dB ≥35.0dB
Durability Mating 1,000, typical≤0.20dB
Fiber External Diameter  ∮ 0.9mm / ∮ 1.8mm & ∮ 2.0mm / ∮ 3.0mm( Only for MU:∮ 0.9mm / ∮ 2.0mm )
Ferrule External Diameter  ∮ 2.5mm :SC, FC,ST,DIN; ∮ 2.0mm :D4; ∮ 1.25mm :LC,MU
Degree of Tail Sleeve ≥SC,LC(45 or 90 degrees)
Operating Temperature -2 0℃~ + 70℃
Storage Temperature -40 ℃~ + 85℃
Ferrule Size Pore size:125.3+1/-0μm, concentricity≤1.0μm Pore size:127+3/-0μm, concentricity≤3.0μm
MU Singal Mode Singal Core Fiber Optic Connector

MU Singal Mode Singal Core Fiber Optic Connector

MU Singal Mode Singal Core Fiber Optic Connector
