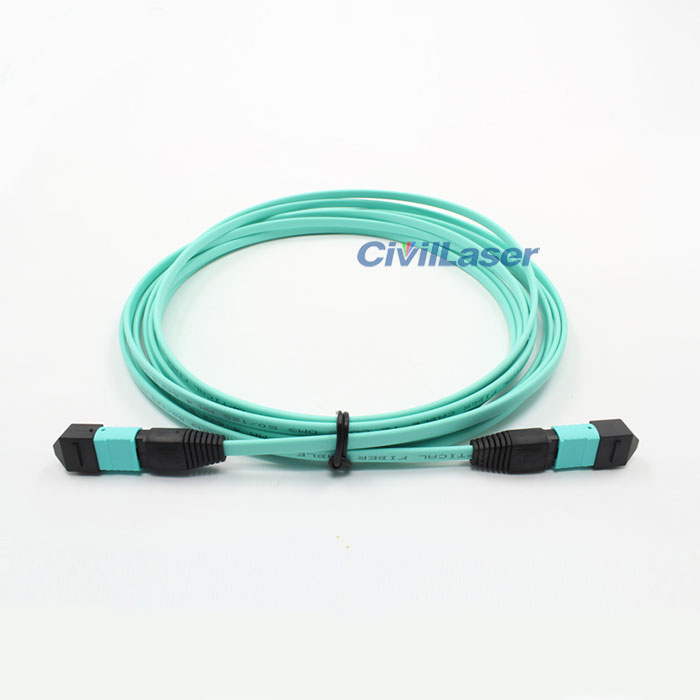

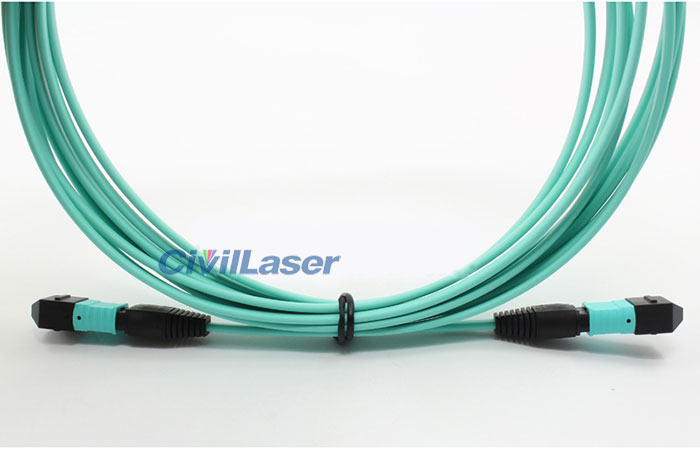

MPO Multimode 12 Core OM Fiber Patch Cord MTP is Optional

$53.00

Add to Cart:


MPO Multimode 12 Core OM Fiber Patch Cord MTP is Optional

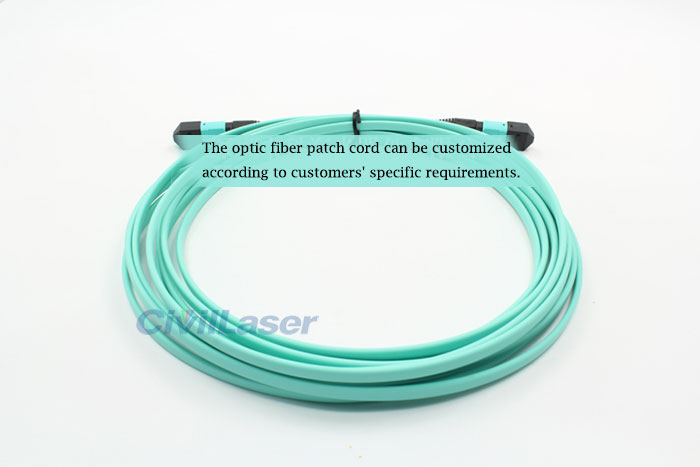

We can supply MPO fiber optic patch cables which are highly demanded in fiber optic communication systems with high density optical fibers. Transfer type MPO comes in many types such as bunchy and ribbon type. It can be split into 2 to 24 cores 0.9mm or 2mm fiber branch though a splitter (round or square). The connector type and the length of fiber patch cord can be decided by customers. Our product conforms to Telcordia GR-326, IEC and RoHS standards.

[Features]

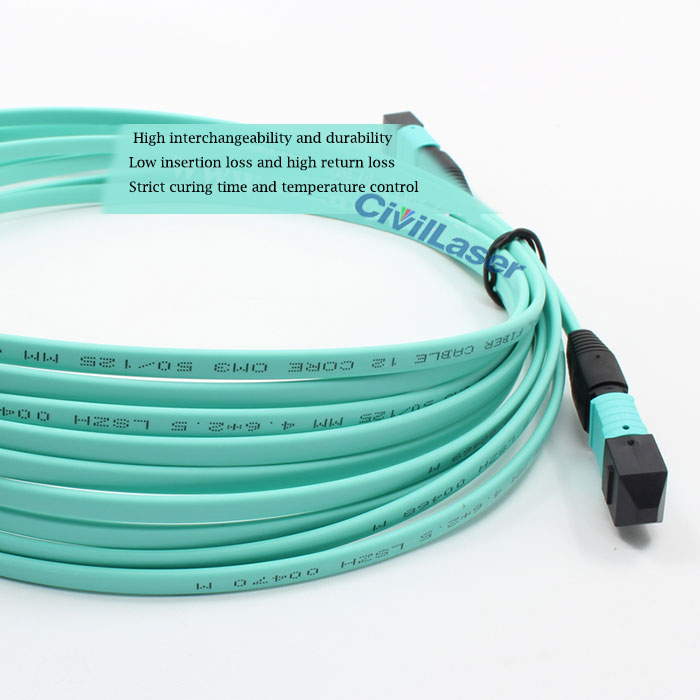

1. High quality ferrule and accurate alignment by PIN and PIN hole
2. Low insertion loss and high return loss
3. High interchangeability and durability
4. MPO fiber optic patch cord comes in many types and design blueprint can be provided quickly.
5. Compliant with Telcordia GR-326-CORE, IEC and RoHS standards
6. MTP is optional.

[Applications]
1. Wiring of local area network between different enterprise buildings
2. Connection of optical links in optical active devices
3. Wiring in communication base station and distribution case
4. Production and testing of optical devices
5. Optical fiber communication system, CATV and telecommunication network
6. LANs and WANs
7. FTTx

Specifications

Item Parameter
Matched Connector Type MPO
Fiber Type Multimode(PC)
Operating Bandwidth Range 1,250~1,650nm
Testing Wavelength  1310nm,1550nm
Typical Insertion loss ≤0.20dB
Maximum  Insertion loss  ≤0.30dB
Return Loss  ≥50.0dB
Applicable cable type MTP: ribbon or bundle cable
Repeatability ≤0.10dB
Exchangeability ≤0.20
Durability 1,000 Mating, loss≤0.20dB
Tensile Force ≥120N(except 0.9mm cable)or customized
Operating Temperature -2 0℃~ + 70℃
Storage Temperature -40 ℃~ + 85℃

Ordering Information

Fiber Type Cable Type Connector PIN Type Tail Sleeve Diameter Tail Sleeve color Ferrule End Face Cord Length
SM: 9/125μm Single cable duplex,
3.0mm cable
Male 2.0mm Black PC Customized
MM: 50/125μm Duplex Female 3.0mm   APC
MM: 62.5/125μm Ribbon cable   Sleeve with fiber
MM: OM3/150 Bunchy cable
