Cyan LC Multimode Double Core Plastic Fiber Optic Adapter

$3.00

Add to Cart:
Min:  10

Cyan LC Multimode Double Core Plastic Fiber Optic Adapter

Fiber optic adapter also called flange plate.Mainly used for connection between the optical connectors and fixed,so that the optical signal can be transmitted with small insertion loss.Series of products include SC,FC, LC,ST,MU,D4,DIN.We adopt precision ceramic sleeve to precisely align the core and core of the connector,ensures ultra low loss optical signal transmission.The most widely used is SC,LC,FC,ST these four.

[Features]
1. Good interchangeability and repeatability
2. Low insertion loss
3. High reliability
4. Variety
5. Compliant with the IEC60874 and RoHS standards

[Applications]
1. Installation of distribution box interface
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

Specifications

Item Parameter
Connector Type LC
Fiber Type Multimode
Adapter Color Cyan
Testing Wavelength  850nm,13050nm
Typical Insertion loss ≤0.15dB
Maximum  Insertion loss  ≤0.20dB
Repeatability ≤0.10dB
Exchangeability ≤0.20
Durability 1,000 Mating, loss≤0.20dB
Channel Number Double core
Frame Material Plastic
Sleeve Material(Customized) Default ceramics(Zr02)
Operating Temperature -2 0℃~ + 70℃
Storage Temperature -40 ℃~ + 85℃

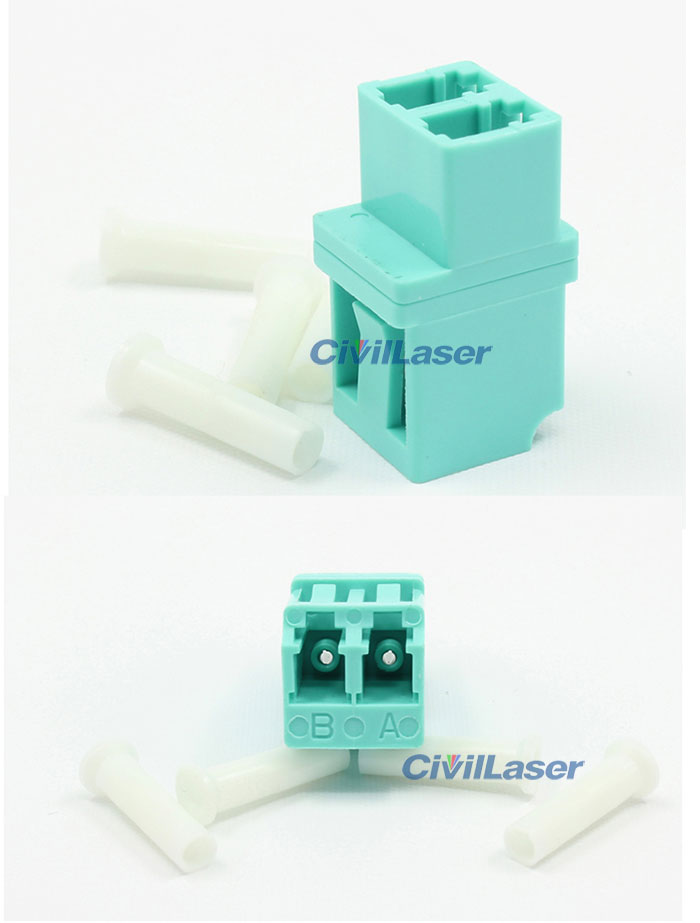

Cyan LC Mulyimode Double Core Plastic Fiber Optic Adapter

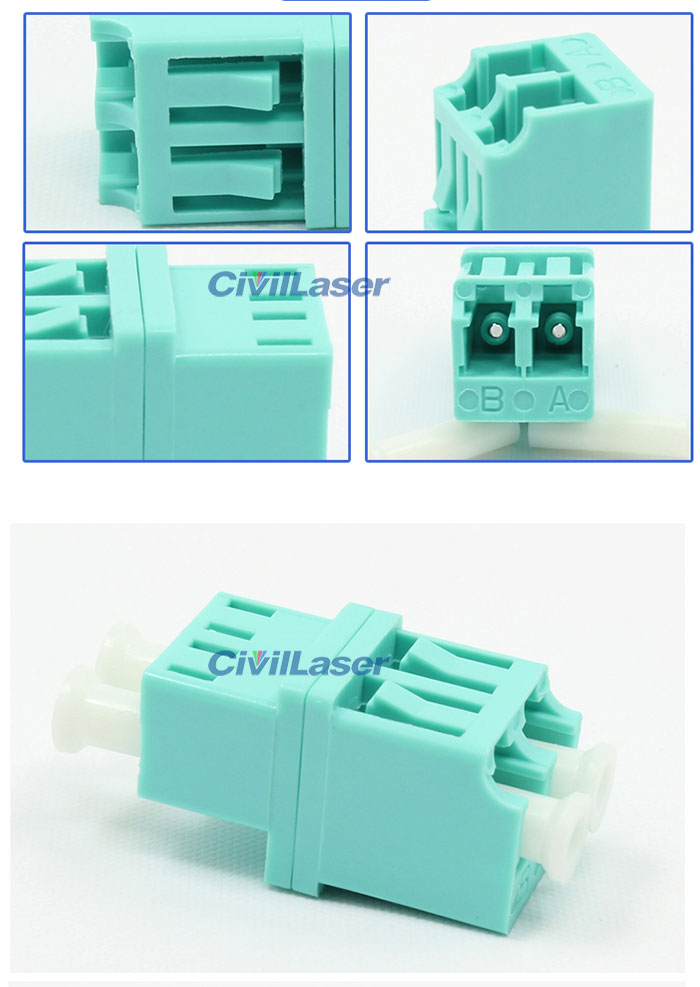

Cyan LC Mulyimode Double Core Plastic Fiber Optic Adapter

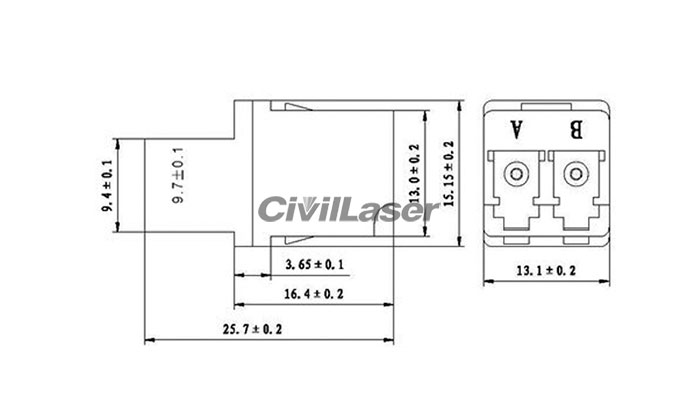

Cyan LC Mulyimode Double Core Plastic Fiber Optic Adapter

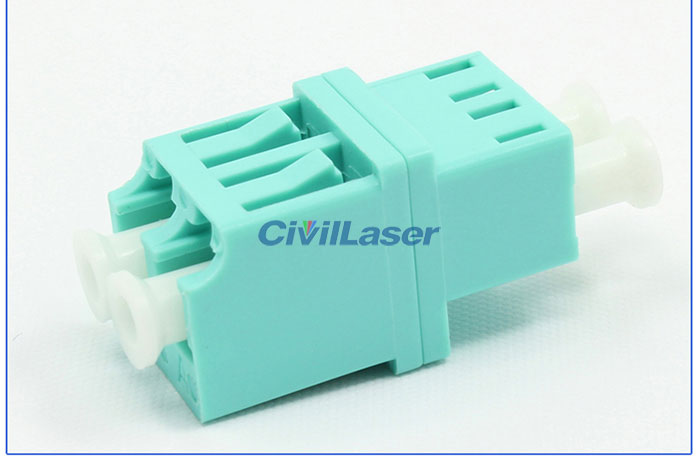

Cyan LC Mulyimode Double Core Plastic Fiber Optic Adapter
