SMA905 Singal Core Fiber Optic Adapter Metal Flange

$11.00

Add to Cart:
Min:  10

SMA905 Singal Core Fiber Optic Adapter Metal Flange

The SMA fiber adapter is designed to ensure accurate mating between SMA fiber connectors while ensuring minimized insertion loss. This style of fiber optic adapter typically comes with two structures. One utilizes a copper sleeve to ensure precise alignment of ferrules within fiber optic connectors. The other comes without a sleeve and directly connects the fiber connector with the hole in it.
SMA fiber adapter has lower accuracy requirement than SC type. Most SMA fiber optic patch cords are multimode patch cords, and thus SMA fiber optic adapters are mostly multimode version as well. This range of fiber optic assemblies is mostly used in optical communications system and various test instruments, especially on military equipment and medical equipment.

[Features]
1. Good interchangeability and repeatability
2. Low insertion loss
3. High reliability
4. Variety
5. Compliant with the RoHS standards

[Applications]
1. Installation of distribution box interface
2. Connection between devices
3. Connection between fiber optic patch cords
4. CATV, MANs, WANs
5. FTTx

Specifications

Item Parameter
Connector Type SMA
Adapter Color Metal
Testing Wavelength  1310nm, 1550nm, 850nm, 1300nm
Typical Insertion loss ≤0.25dB
Maximum  Insertion loss  ≤0.30dB
Repeatability ≤0.10dB
Exchangeability ≤0.20
Durability 500 Mating, loss≤0.20dB
Alignment Sleeve Material Copper or none
Adapter Material Metal
Operating Temperature -2 0℃~ + 70℃
Storage Temperature -40 ℃~ + 85℃

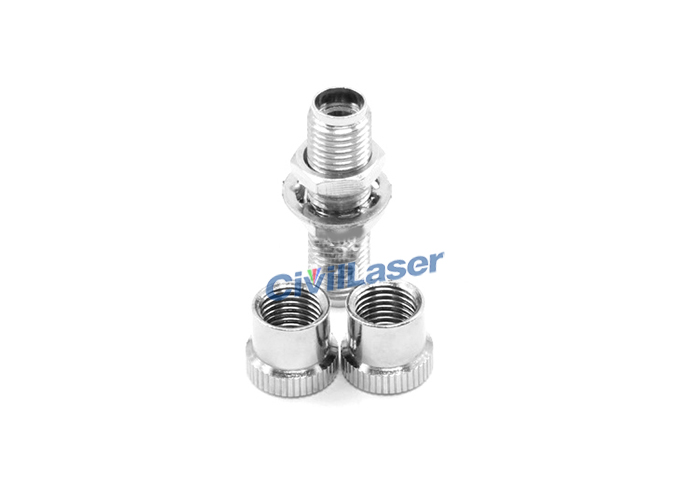

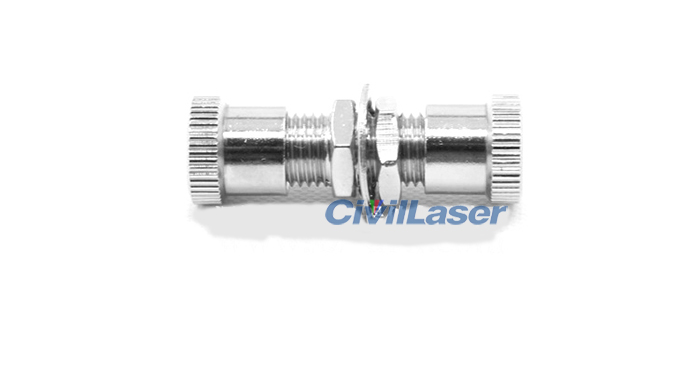

SMA 905 Singal Core Fiber Optic Adapter Metal Flange

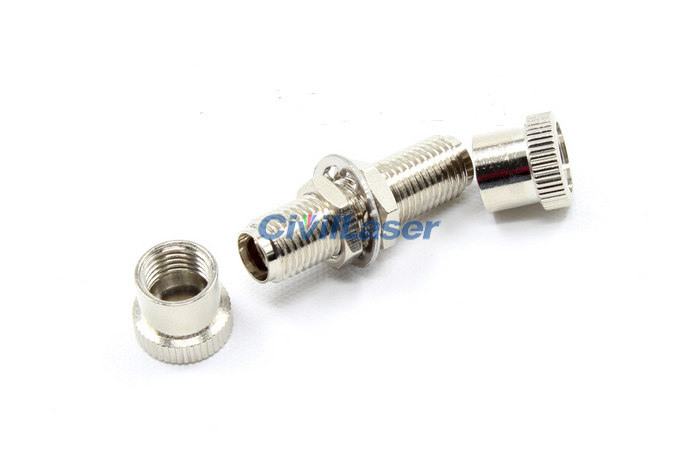

SMA 905 Singal Core Fiber Optic Adapter Metal Flange

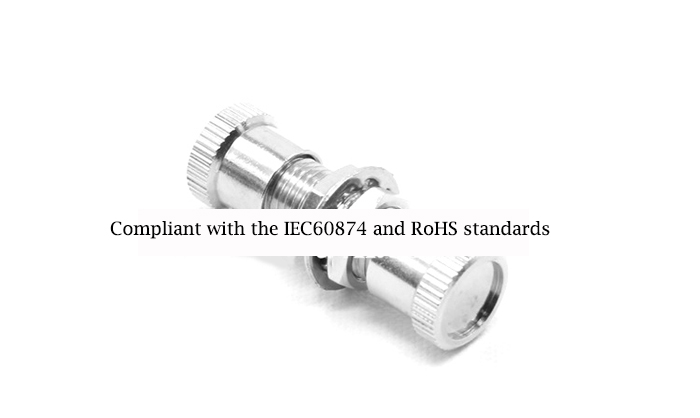

SMA 905 Singal Core Fiber Optic Adapter Metal Flange

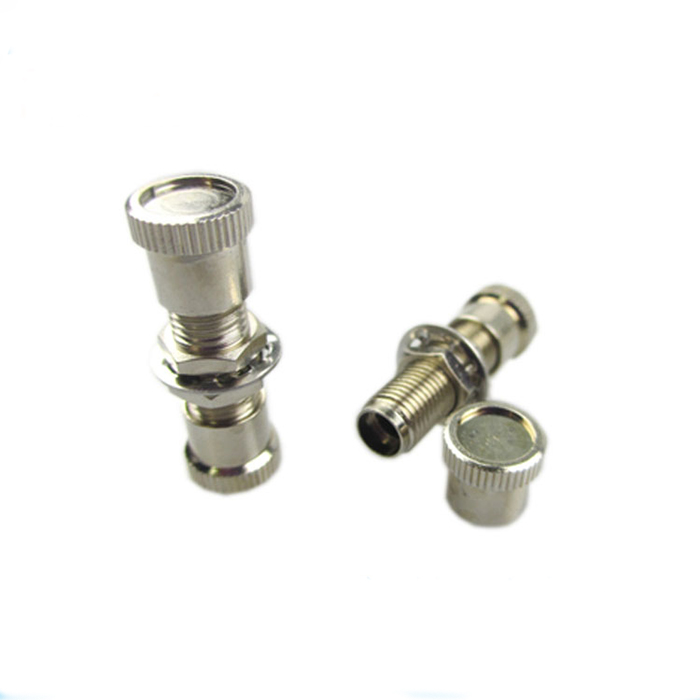

SMA 905 Singal Core Fiber Optic Adapter Metal Flange
