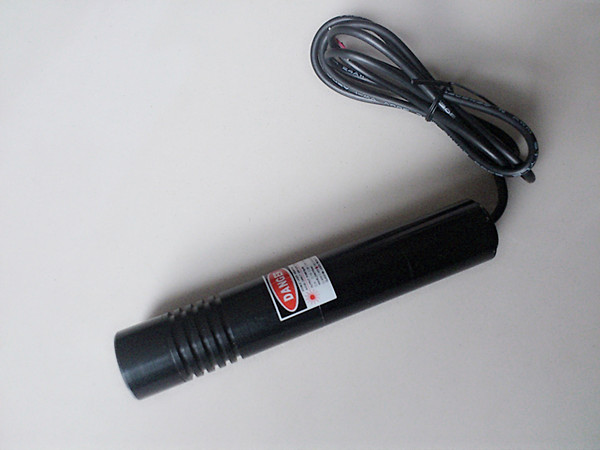

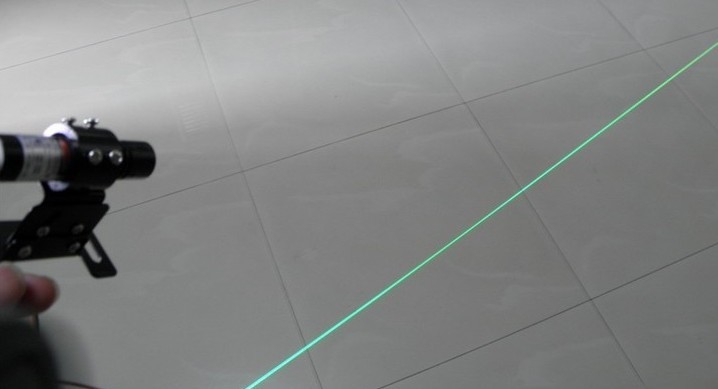

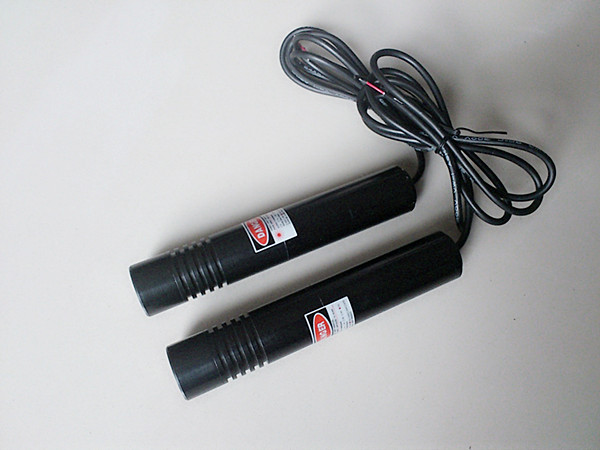

532nm 50mW 80mw Green Laser Module Line (Laser Head) Super long green line

Starting at: $114.00

Please Choose:







Add to Cart:


In view of the special requirements of the products, the fan angle can be ordered 10 °, 30 °, 45 °, 60 °, 90 °,120 °, the light intensity distribution uniformity is good, can meet the high quality requirements. The larger the angle, the light is longer.

SPECIFICATIONS:
Wave length: 532nm
Exit pupil power: 50mW 80mw(cylindrical, no refrigeration)
The fan angle: 10 °, 30 °, 45 °, 60 °, 90 °, 110 ° (Default 90 ° )
Beam Divergence: 1.5mrad
Optical system: 3 pieces of spherical glass lens group (including Powell prism)
Bending degree: ≤ 1mm @ 5m
Working voltage: DC 3.5-25(V)
Operating current: ≤500mA
Laser level: II, IIIa IIIb
Working temperature: 10 ℃ ~ 35 ℃
Storage temperature: - 40 ℃ ~ 80 ℃
Dimensions: 22mm * 110mm or 16mm * 70mm;
Working time: Sustainable light normally 1-2 hours. (good heat dissipation conditions, such as iron / iron rack cooling tool.)

Warning :
1. All of laser products are harmful for eyes,please don't aim people eyes(contain animal eyes) directly.
2. It is Industrial laser ,not toy .Keep far from Children under 18 years old.
